Fluid Pan, A/T

Transmission Pan

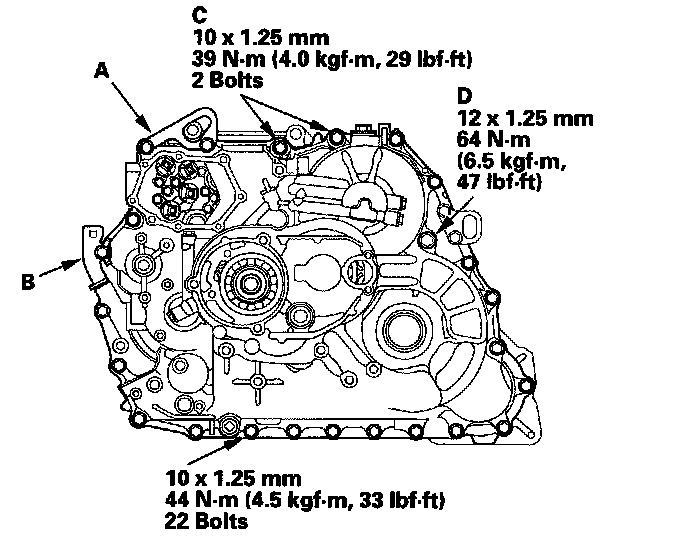

Transmission housing mounting bolts (22 bolts) along with the transmission hanger (A) and transmission ground terminal bracket (B).
Tighten the bolts in two or more steps in a crisscross pattern: 44 Nm (4.5 kgf-m, 33 lbf-ft)
Two mounting bolts (C) 39 Nm (4.0 kgf-m, 29 lbf-ft)
Special bolt (D) 64 Nm (6.5 kgf-m, 47 lbf-ft)
