Honda Truck
>>
2008
>>
Pilot 4WD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By View Number
>>
View 351-359
>>
355
View 351-359: 355

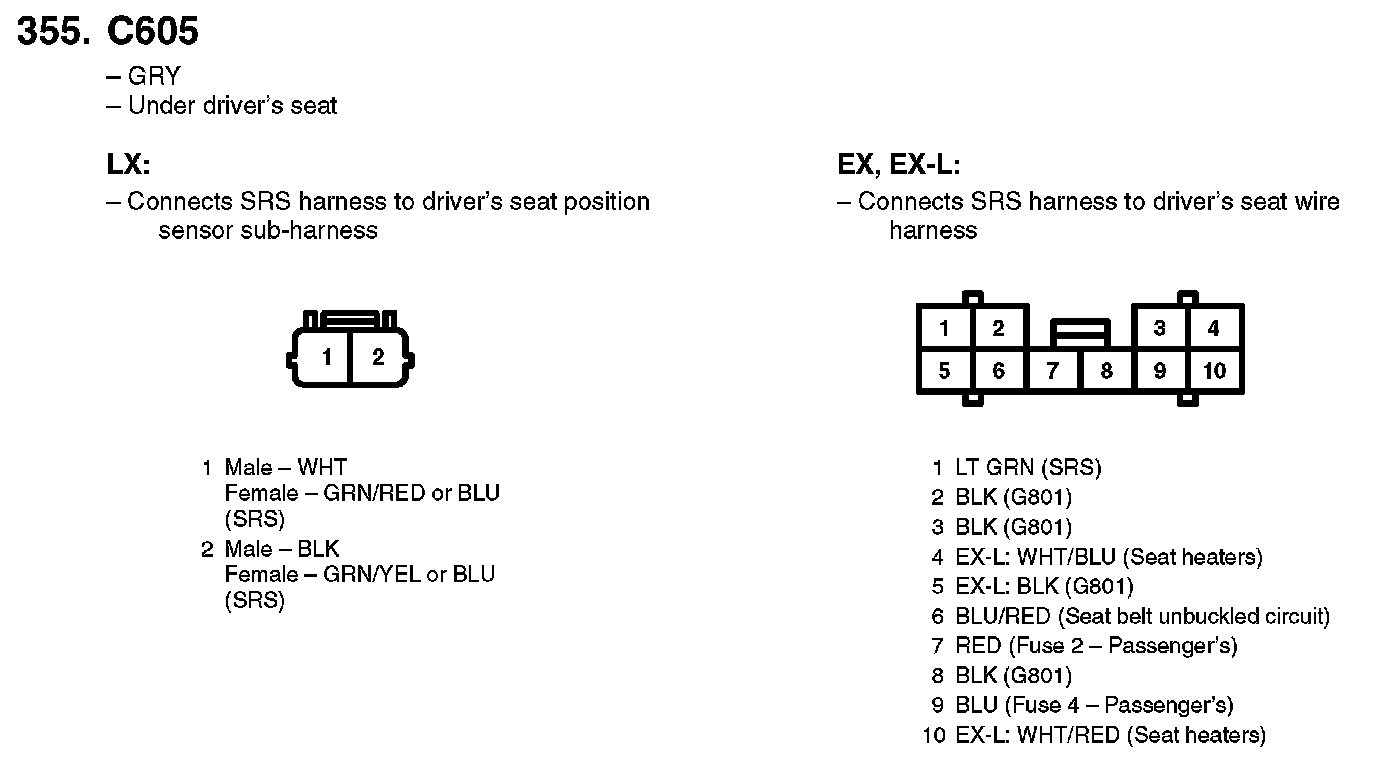

355. C605:
