Mixture Control Solenoid - Slow Cut: Locations

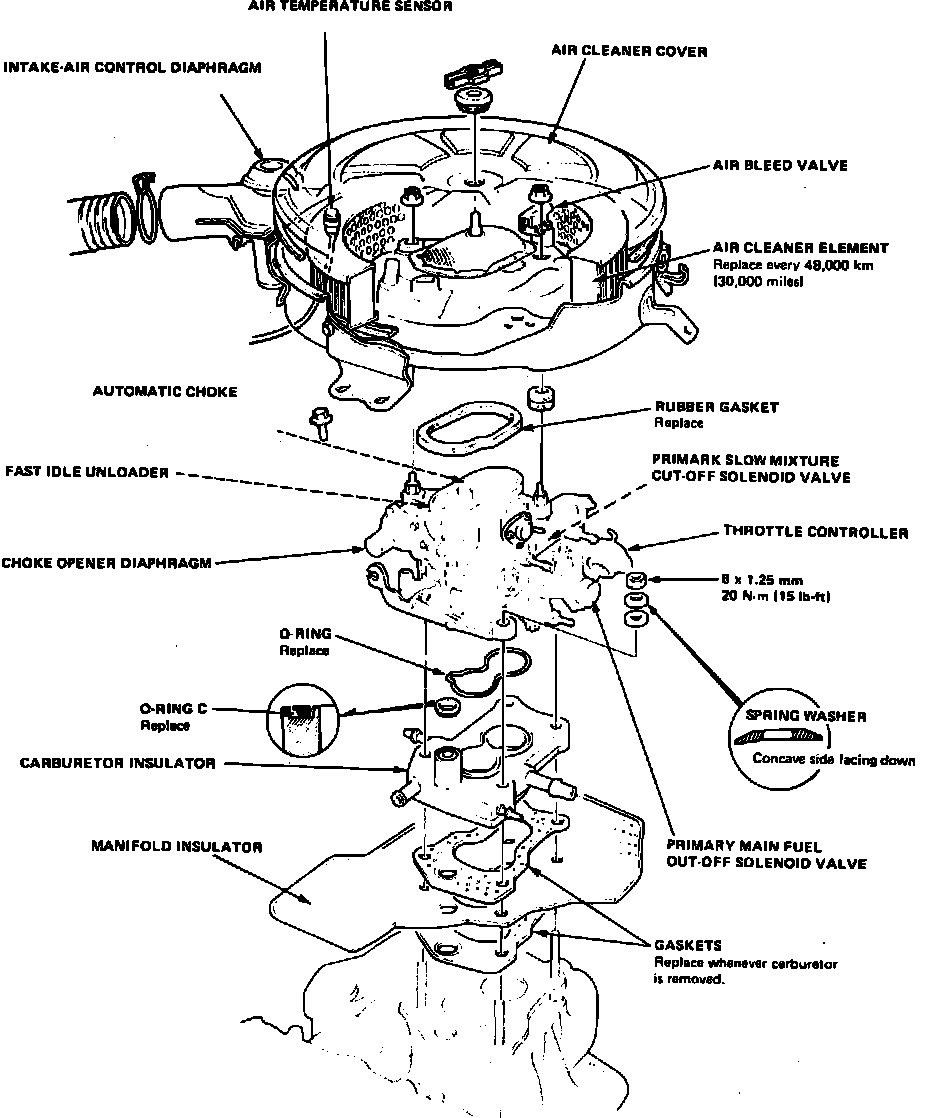

Carburetor & Air Cleaner Mounted Components.:




On Carburetor

Applicable to: 1982-83
