Power and Ground Distribution
>>
Fuse
>>
Locations
Fuse: Locations

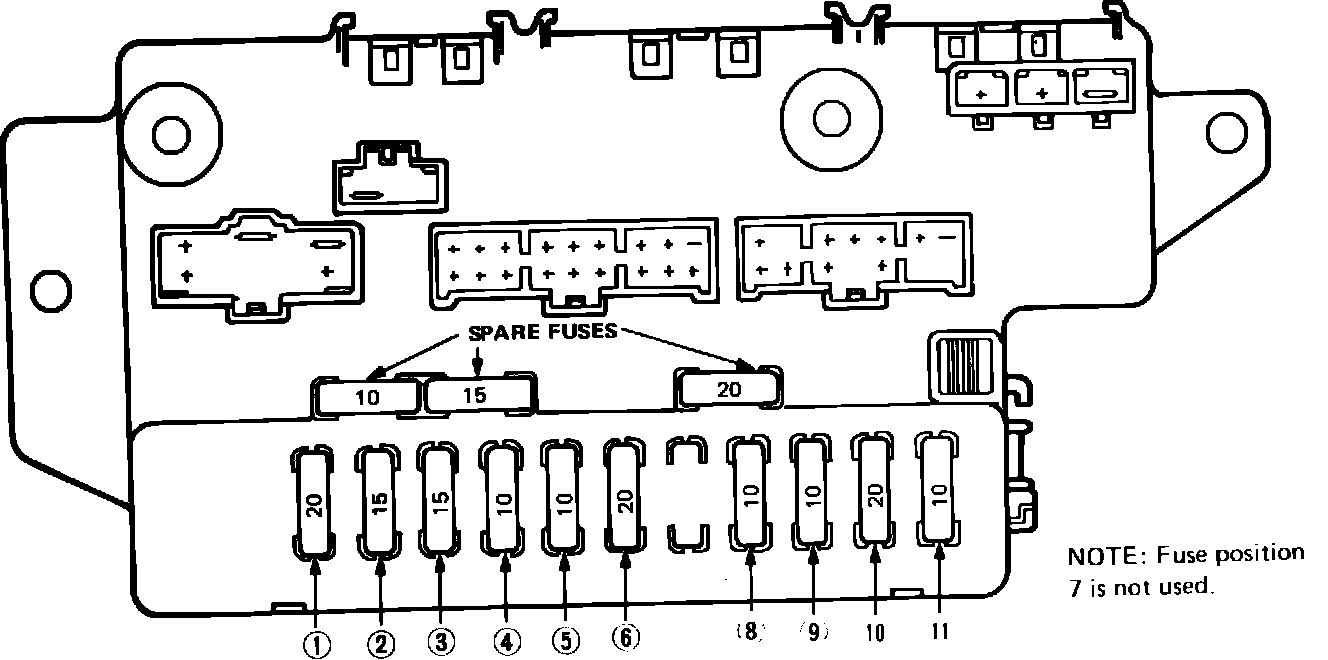

Fig. 4a Fuse Panel (Part 1 of 2). 1983 Prelude:

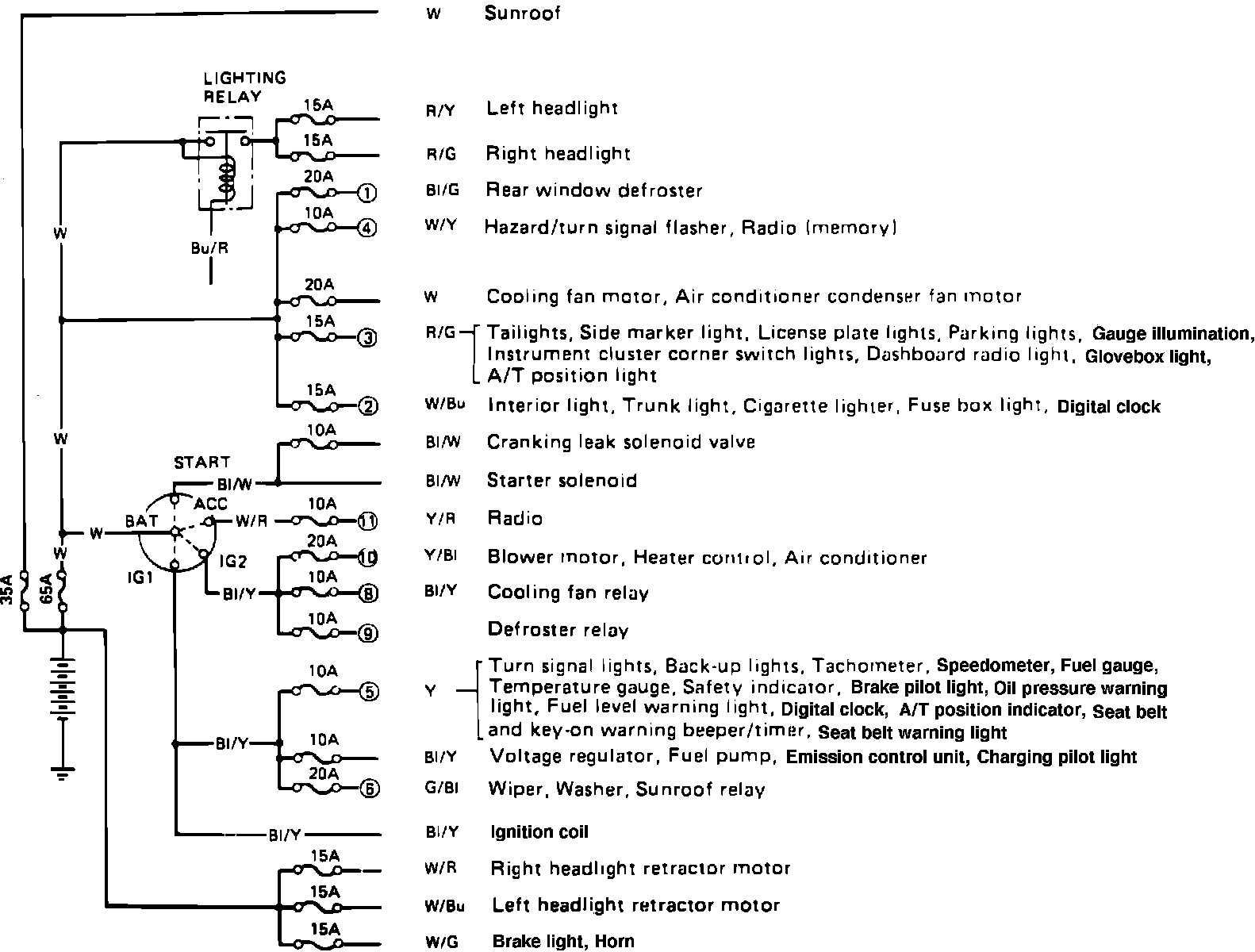

Fig. 4b Fuse Panel (Part 2 of 2). 1983 Prelude:
