Accord L4-1829cc 1800 ES,ET
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Charging System
>>
Alternator
>>
Service and Repair
>>
Disassembly and Reassembly/Overhaul
Disassembly and Reassembly/Overhaul

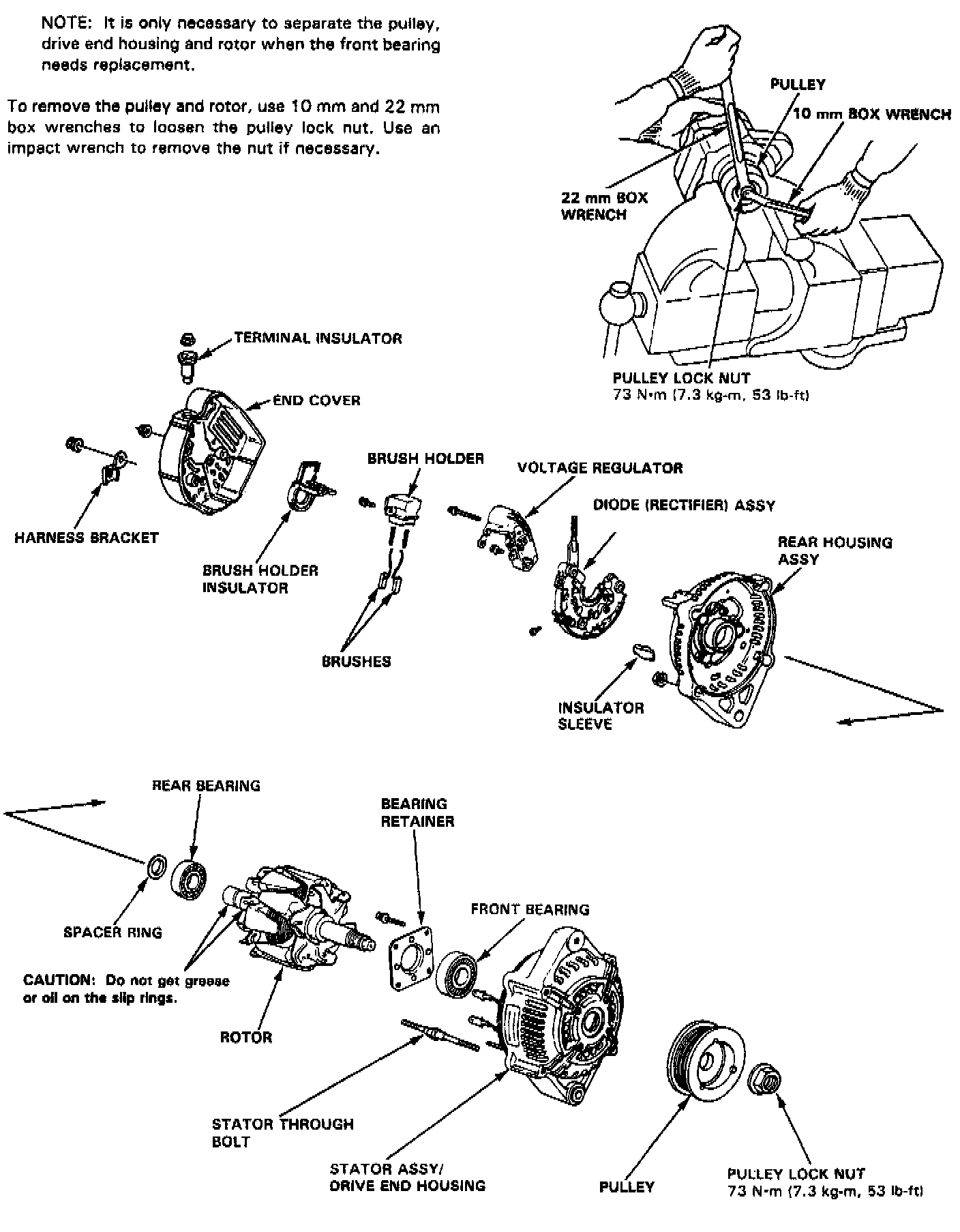

Alternator Overhaul Exploded View.:
