Prelude L4-1829cc 1800 ES,ET
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Locations
Fuse: Locations

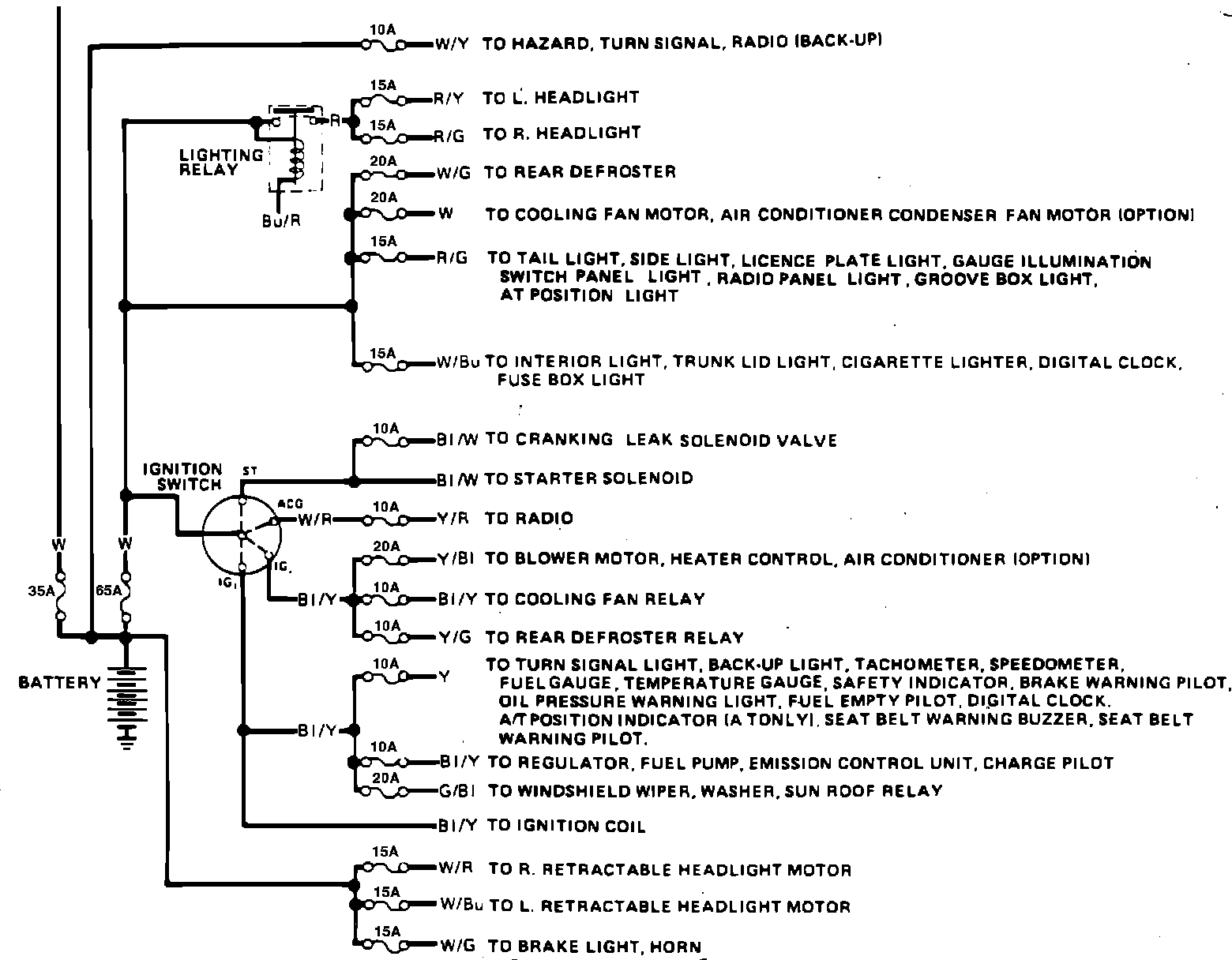

Fig. 5a Fuse Panel (Part 1 of 2). 1984 Prelude:

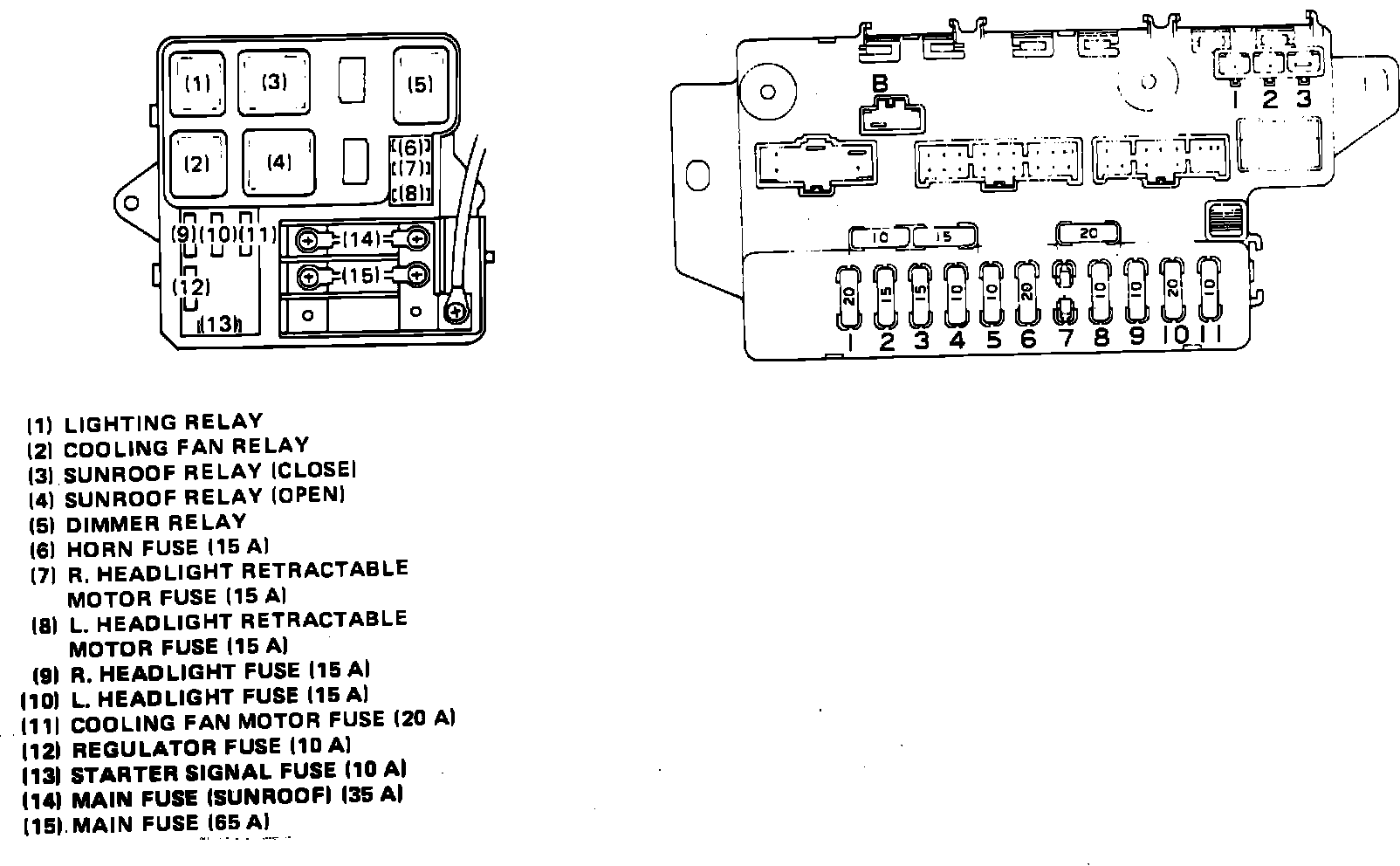

Fig. 5b Fuse Panel (Part 2 of 2). 1984 Prelude:
