Engine Control Module

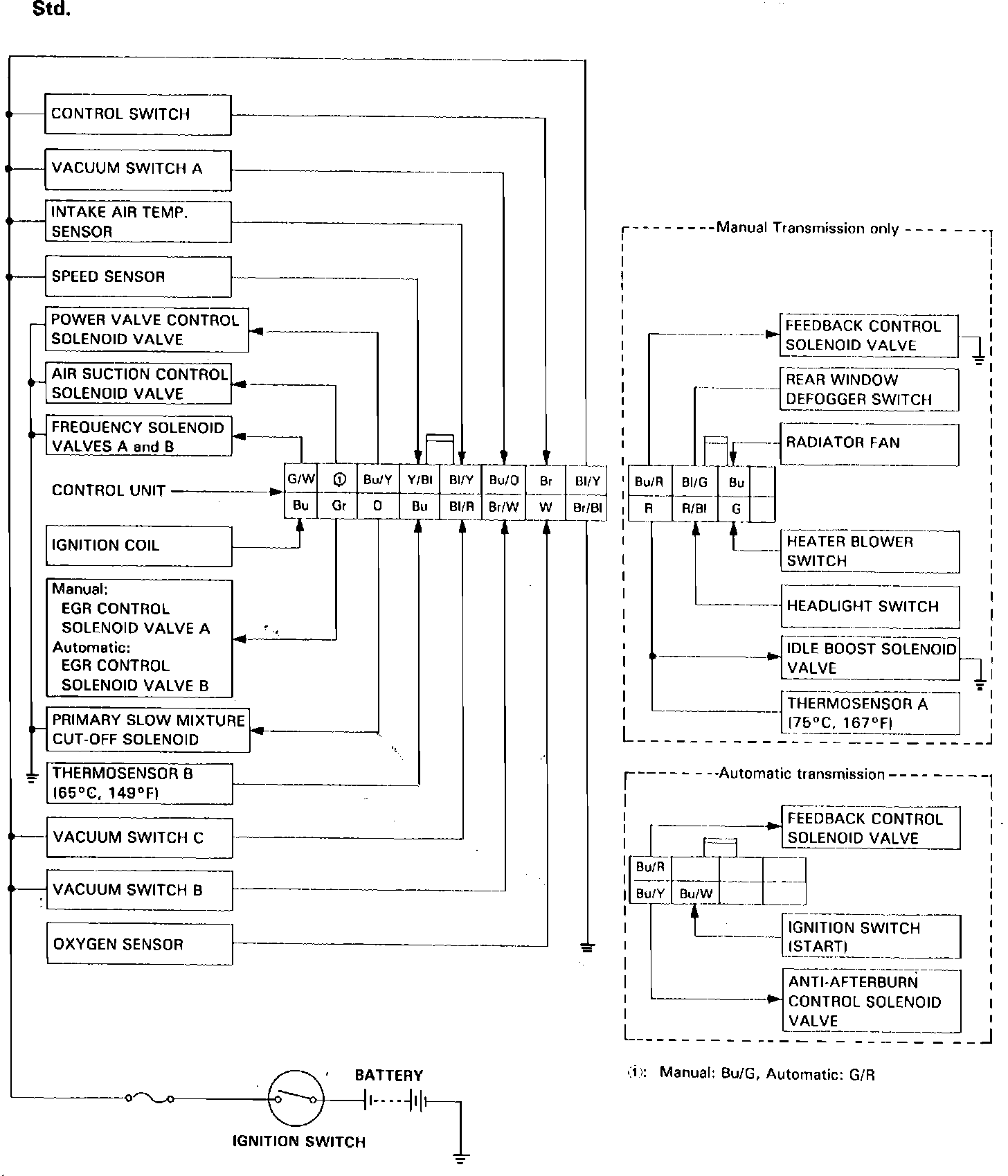

Fig. 404 Control Unit Terminal Pin ID Locations (STD.):

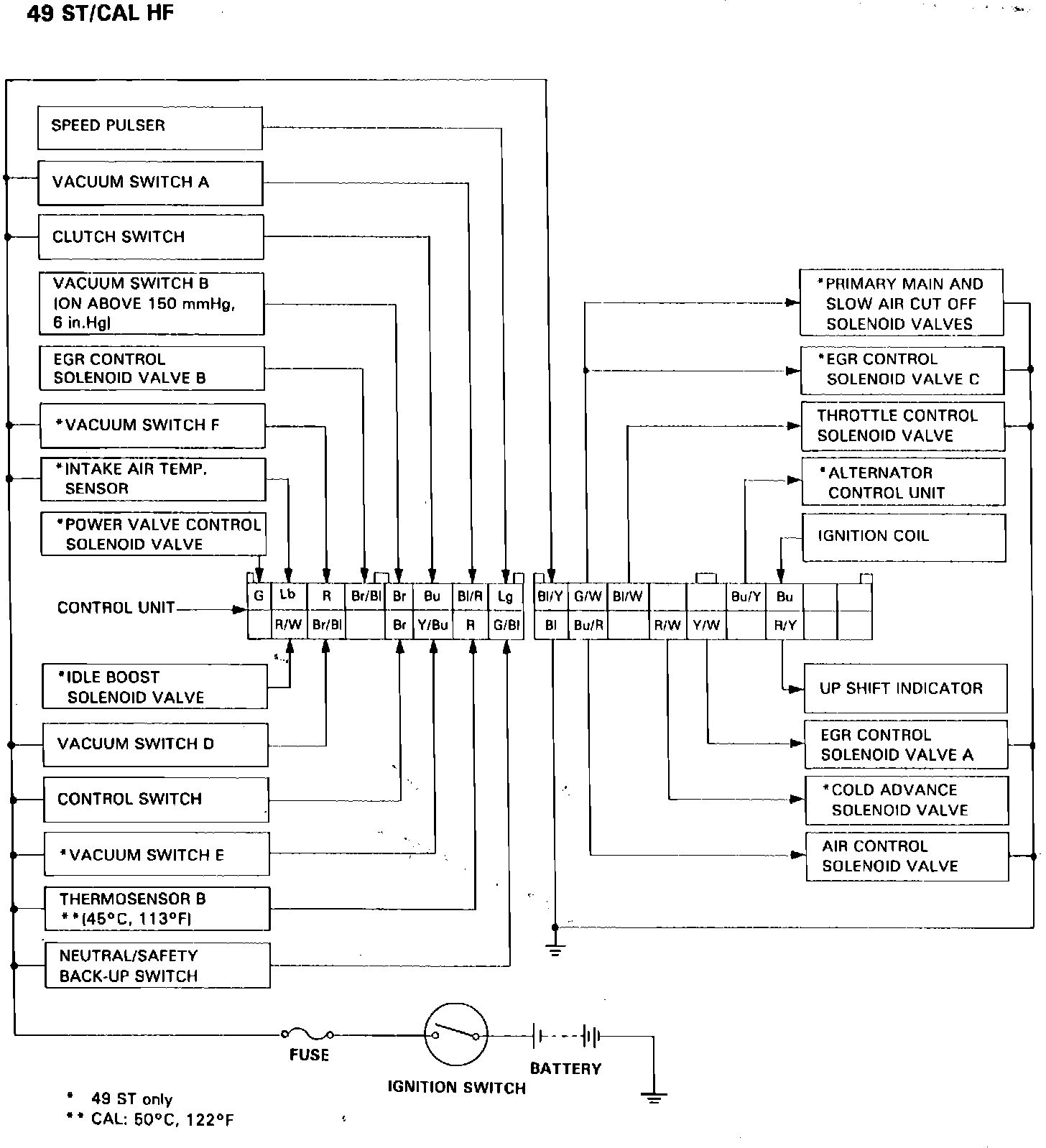

Fig. 405 Control Unit Terminal Pin ID Locations (HF CA/FEDERAL):

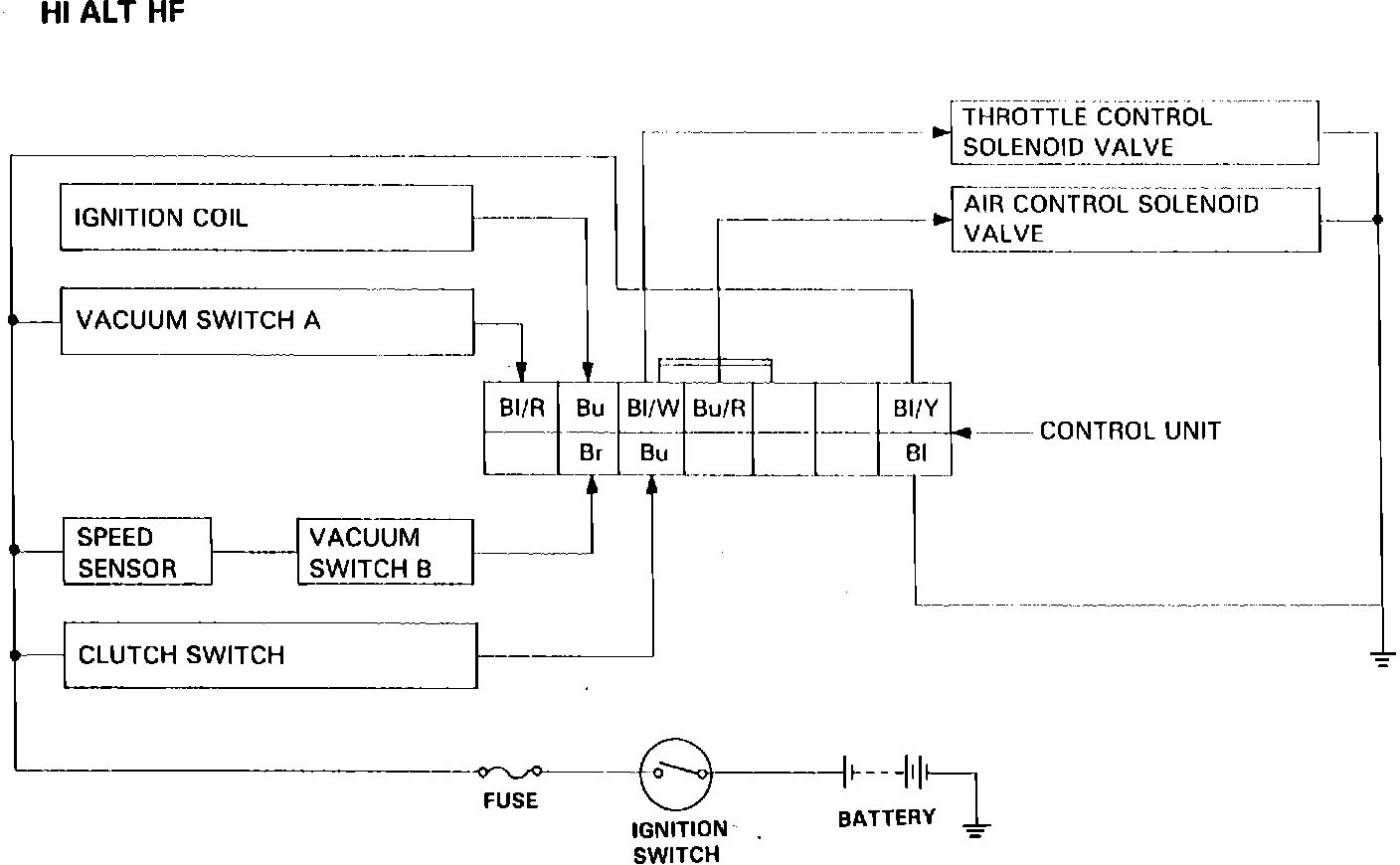

Fig. 406 Control Unit Terminal Pin ID Locations (HF HIGH ALT.):
