CRX L4-1488cc 1.5L EW1, EW3
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Exhaust Gas Recirculation
>>
Testing and Inspection
>>
Troubleshooting
Troubleshooting

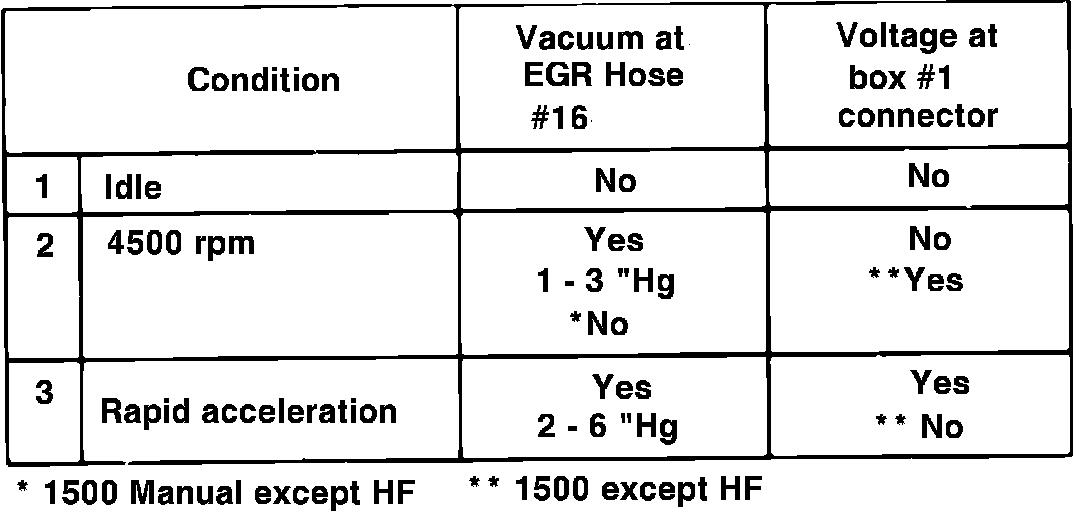

Fig. 64 Vacuum & Voltage Chart.:
