CRX L4-1488cc 1.5L EW1, EW3
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Locations
>>
Control Box
Control Box

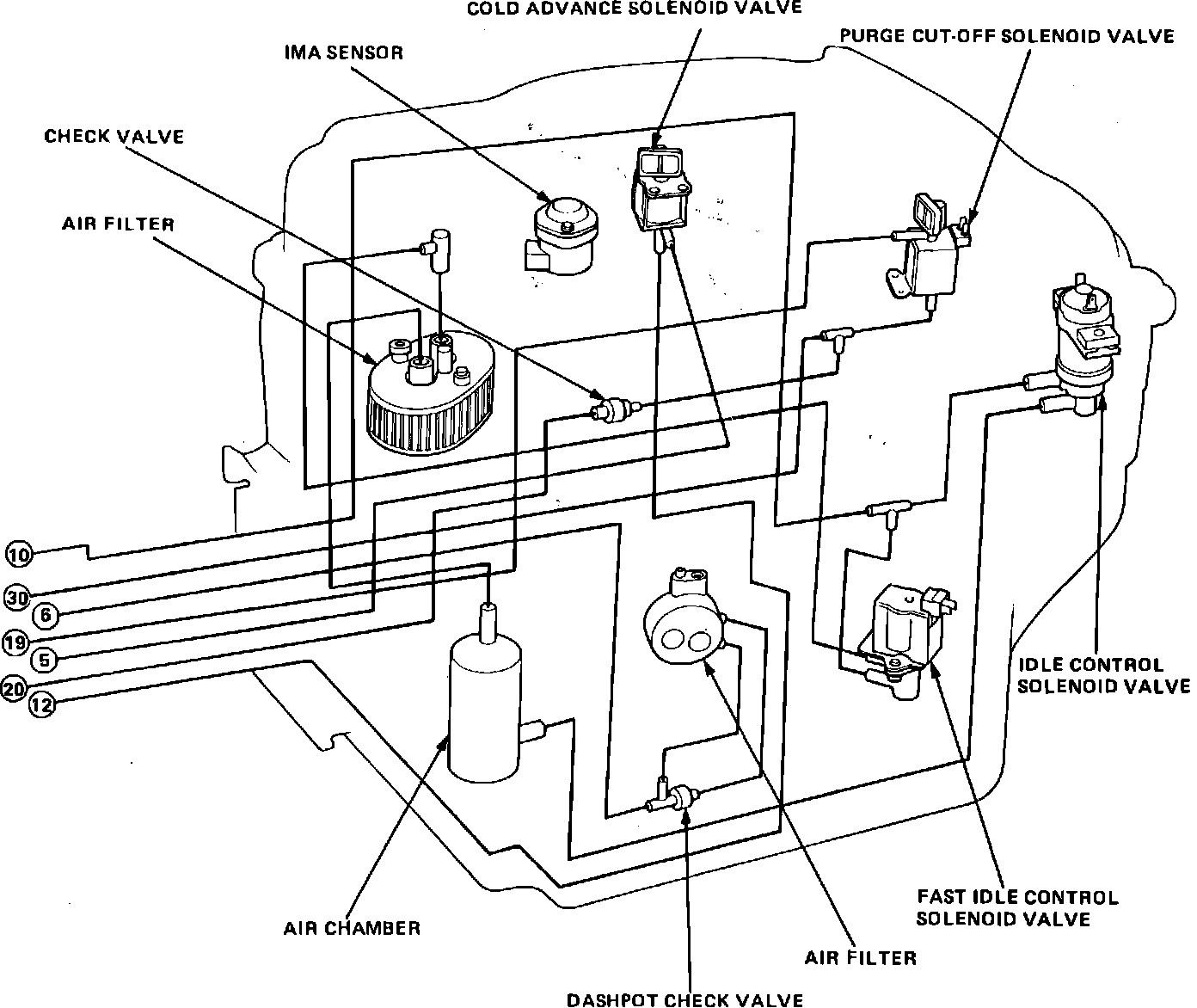

Fig. 412 Control Box Component Locations:
