Prelude L4-1829cc 1800 ES,ET
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Frequency Valve
>>
Locations
Frequency Valve: Locations

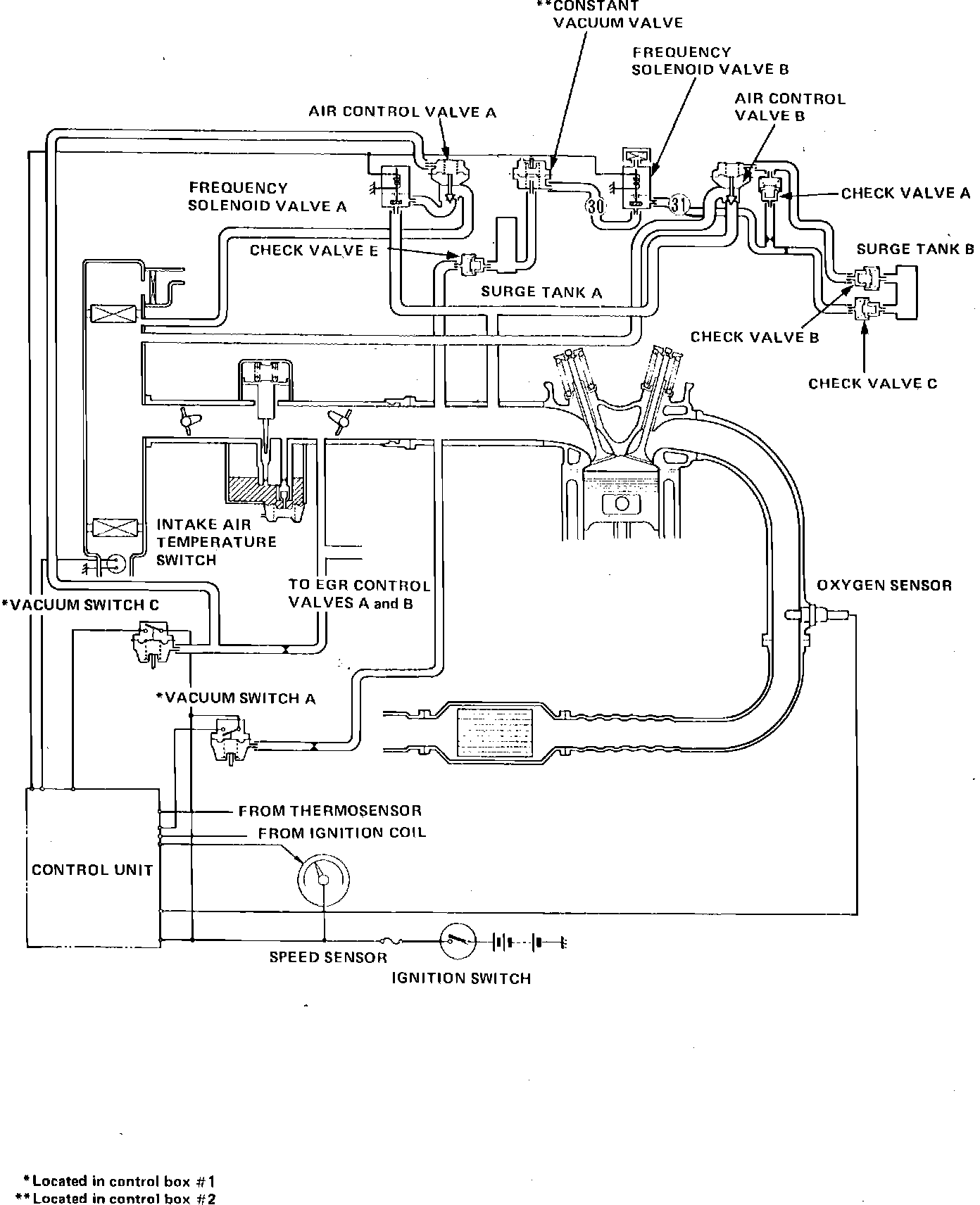

Fig. 214 Feedback Control:
