Home >> Honda >> 1985 >> Prelude L4-1829cc 1800 ES,ET >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Exhaust Gas Recirculation >> EGR Control Solenoid >> Locations

EGR Control Solenoid: Locations

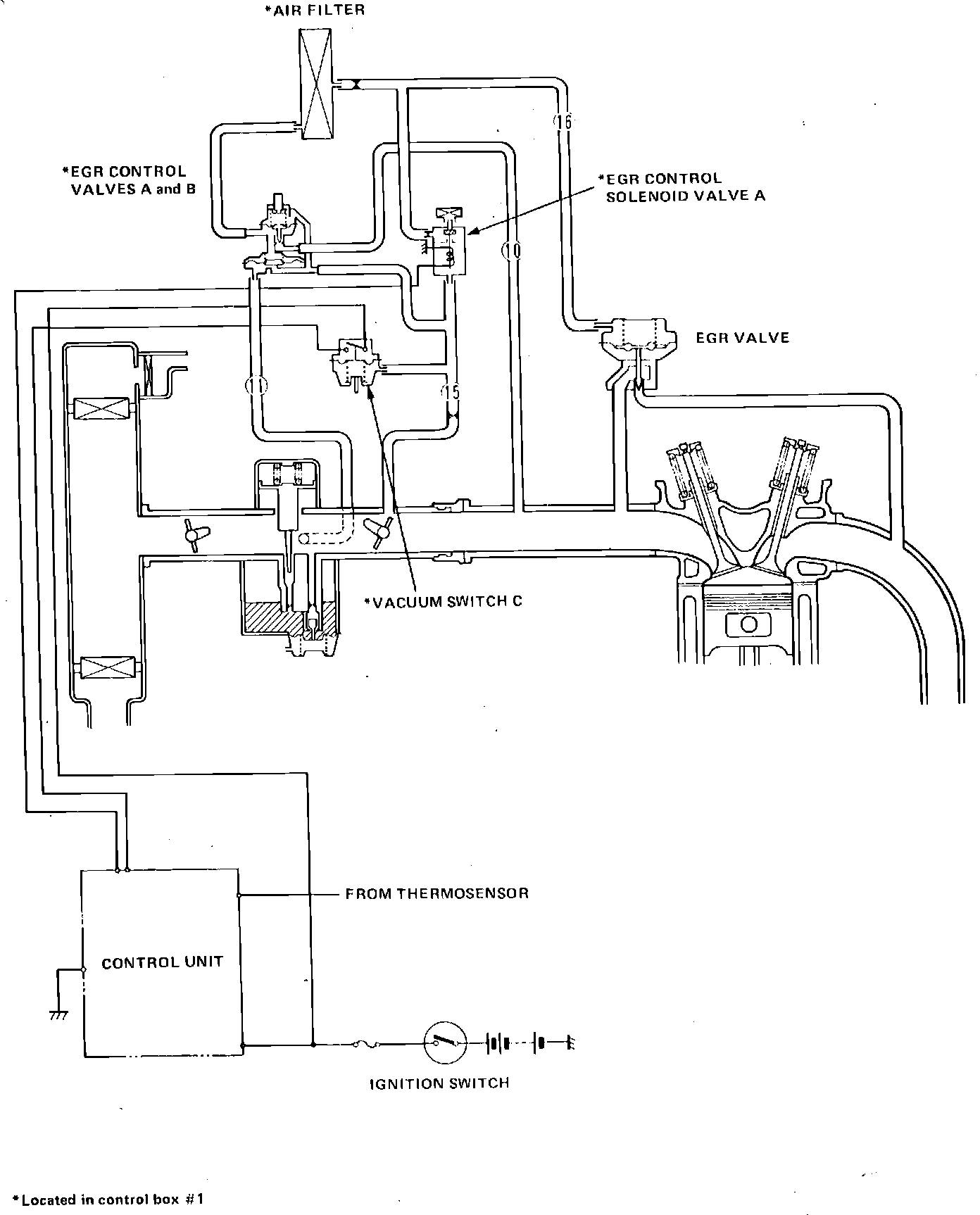

Fig. 210 EGR:
