Function Control Switch
Function Control Switch

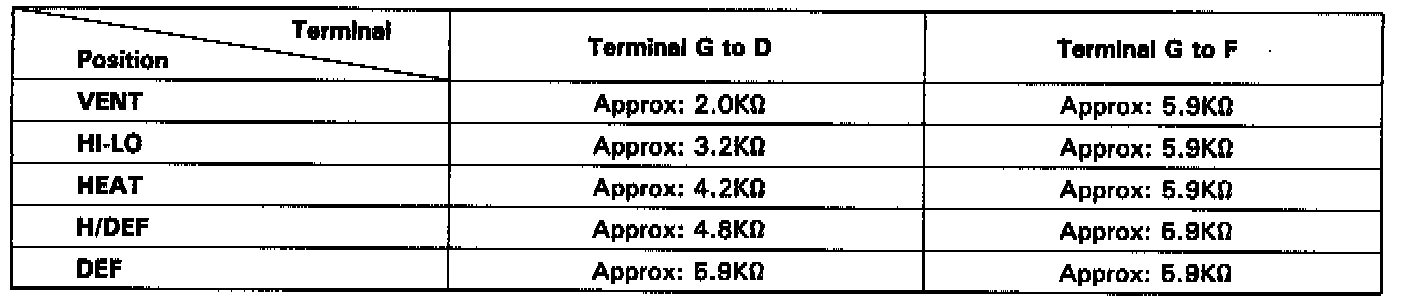

Function Switch Test Chart:

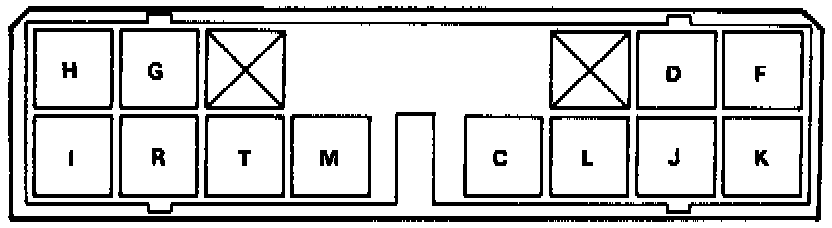

Control Panel Terminal Identification:
Check for continuity between the terminals, as shown in the chart.
