Rear

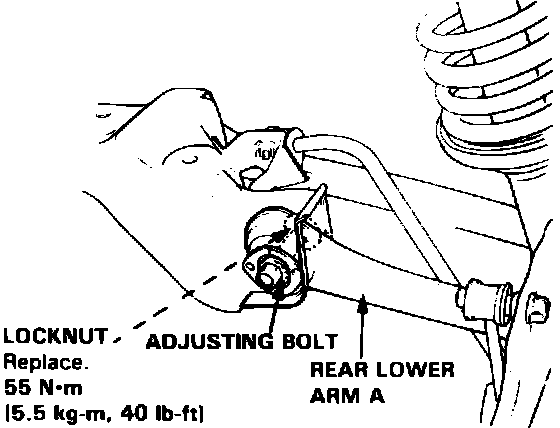

Fig. 6 Rear toe-in adjustment. 1986-88 Accord:

1. Release parking brake.
2. Hold adjusting bolt on rear lower arm and loosen locknut, Fig. 6.
3. Rotate adjusting bolt to obtain specified toe-in.
4. Install new locknut and torque nut to 40 ft. lbs. while holding adjusting bolt, then ensure toe-in is still within specifications.
