Coolant Temperature Sensor/Switch (For Computer): Testing and Inspection

TW Sensor

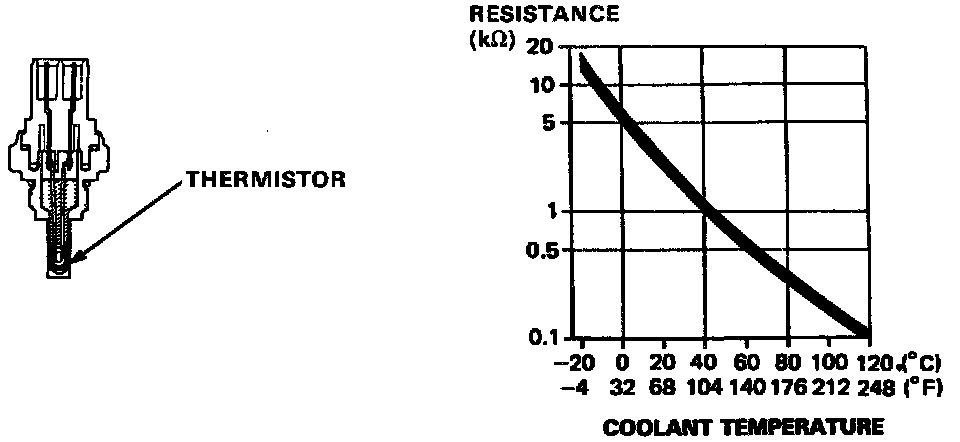

The coolant temperature (TW) sensor is a temperature dependant resistor (thermistor). The resistance of the thermistor decreases as the coolant temperature increases as shown.
