Home >> Honda >> 1987 >> Accord L4-1955cc 2.0L SOHC 2-bbl >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Vehicle Speed Sensor >> Testing and Inspection >> Check Procedure

Check Procedure

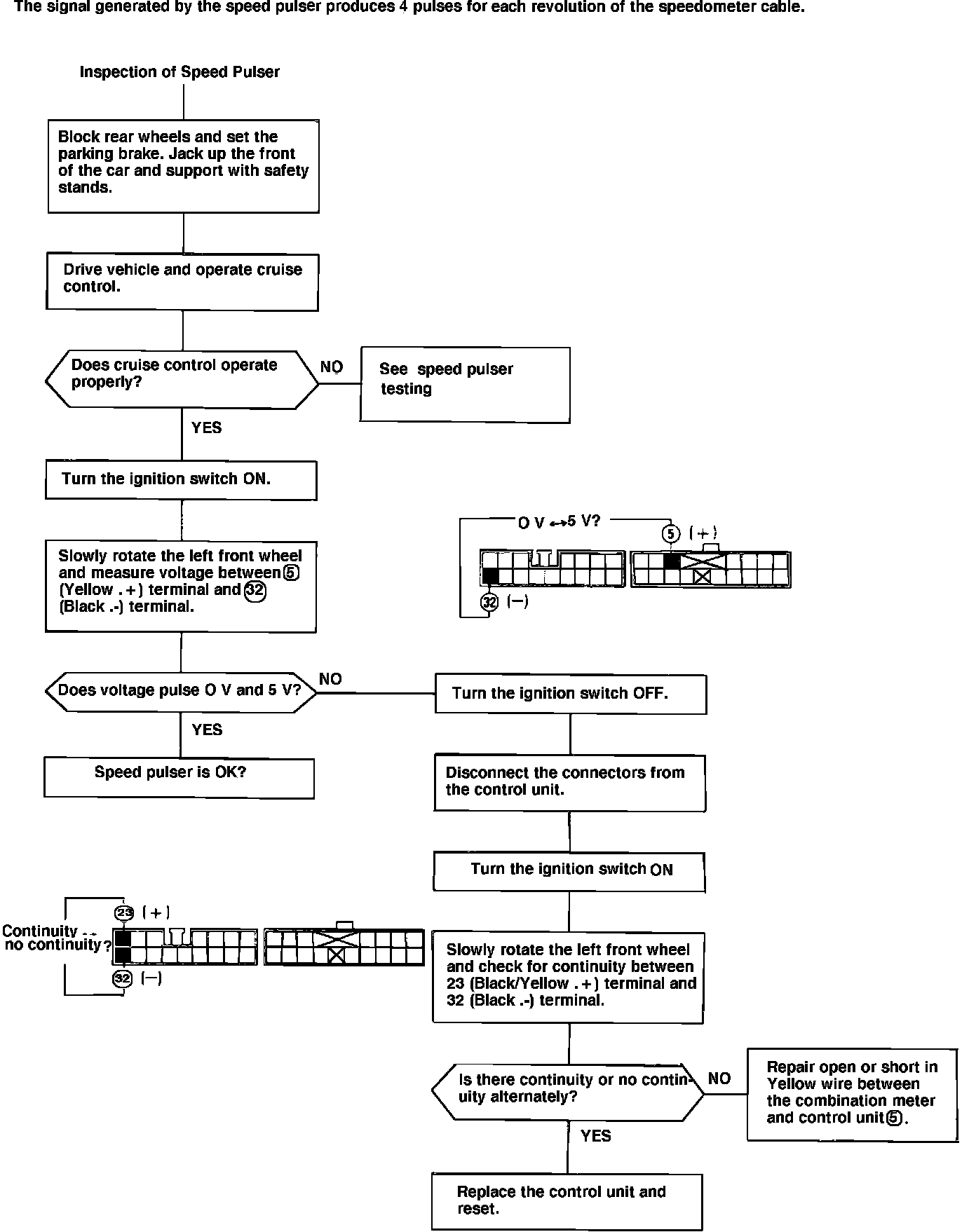

Fig. 36 Checking Speed Pulser.:
