Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
1987
>>
Accord L4-1955cc 2.0L SOHC 2-bbl
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Vehicle Speed Sensor
>>
Testing and Inspection
>>
Testing Speed Pulser
Testing Speed Pulser

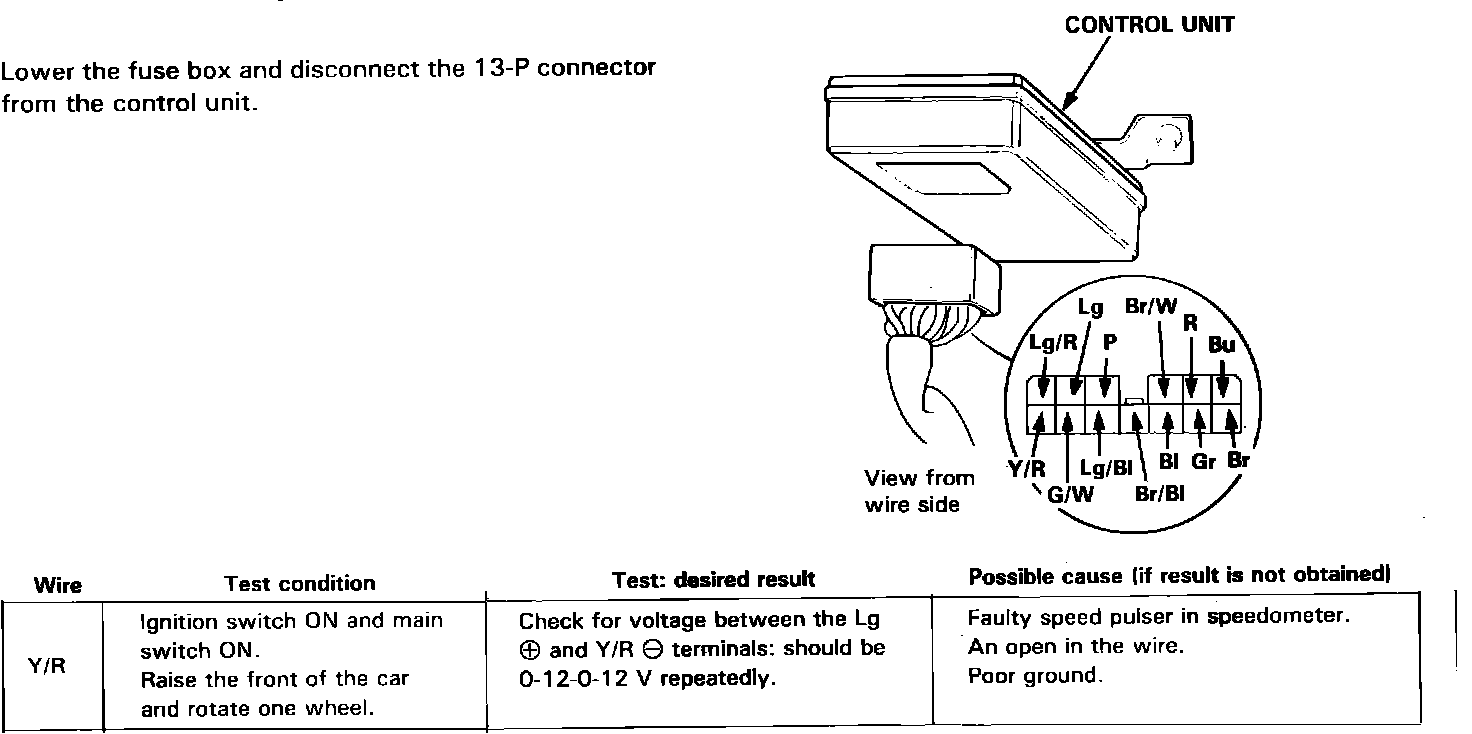

Fig. 36 Testing Speed Pulser.:
