Blower Unit

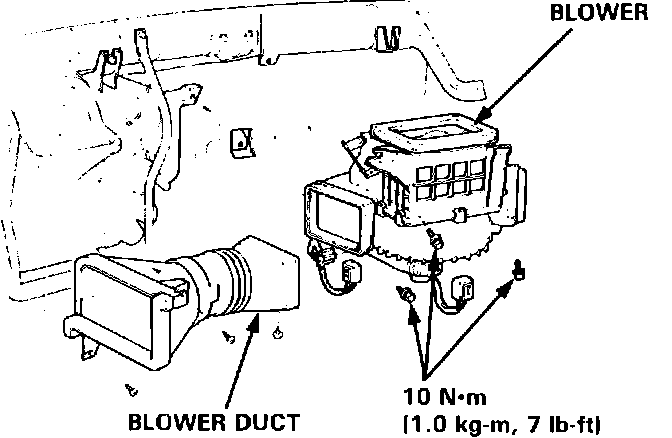

Fig. 1 Blower housing assembly.:

1. Disconnect battery ground cable.
2. On vehicles equipped with heat only, remove blower duct, Fig. 1 . On vehicles equipped with A/C, remove blower assembly to evaporator housing sealing band.
3. Remove three mounting bolts from blower assembly, Fig. 1, then remove blower assembly.
4. Disconnect electrical connectors, vacuum hoses or cables from blower assembly.
5. Reverse procedure to install.
