Control Box & Vacuum Connection Reference Diagram. W/Fuel Inj.
Control Box & Vacuum Connection Reference Diagram. W/Fuel Inj.

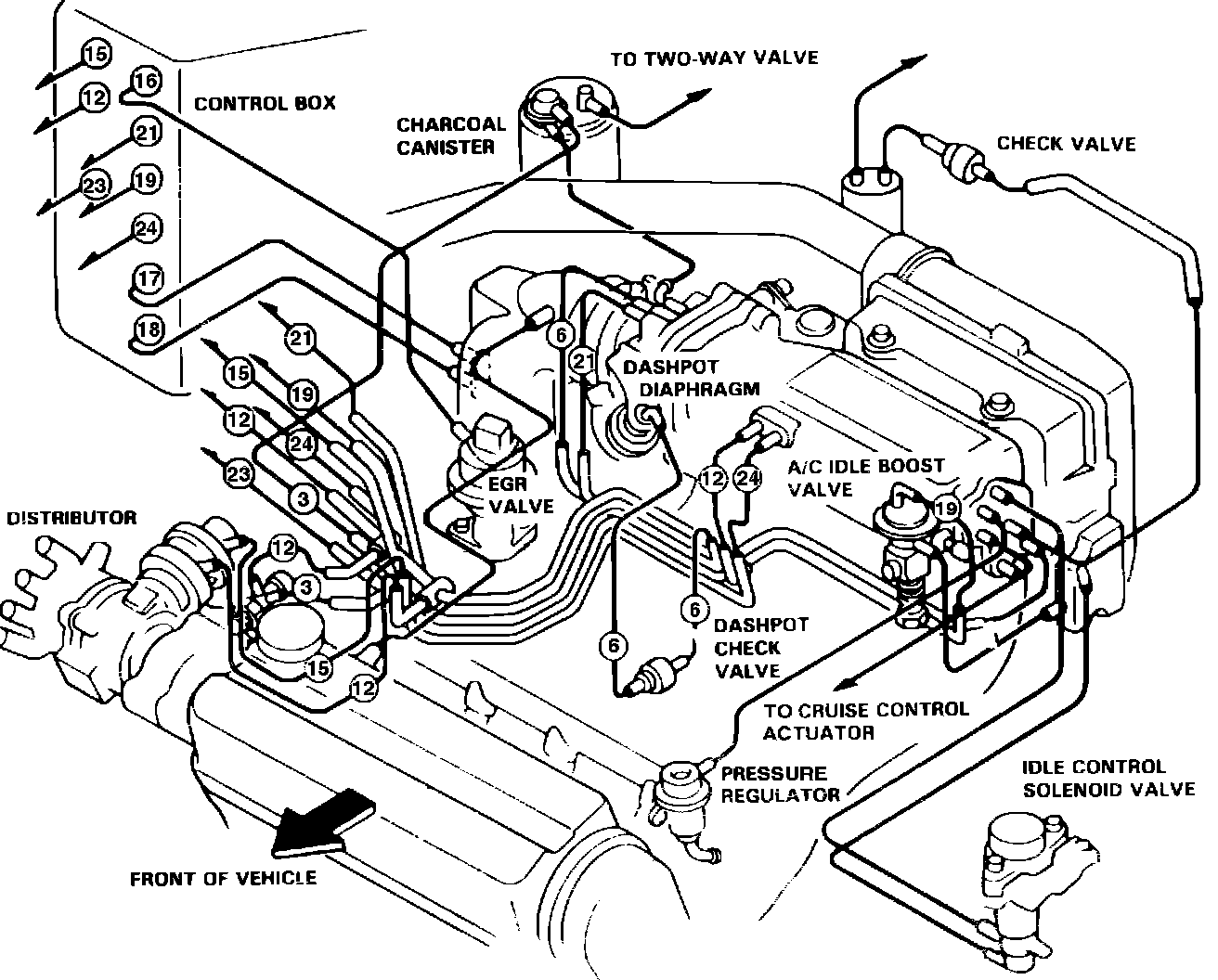

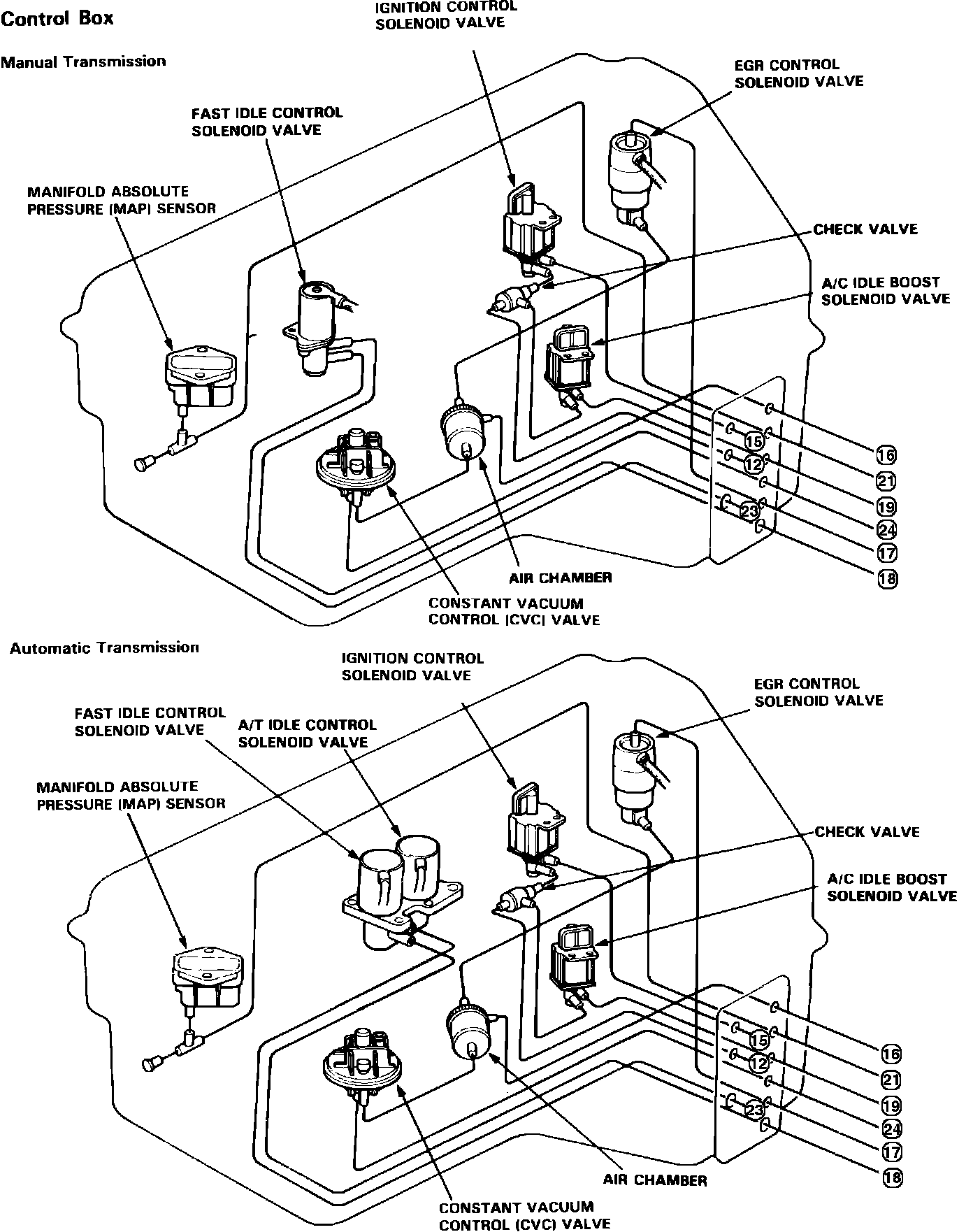

Fig. 24 Control Box & Vacuum Connection Reference Diagram. W/Fuel Injected Engine:
Fig. 24 Control Box & Vacuum Connection Reference Diagram. W/Fuel Injected Engine:
