Locations
>>
Control Box Component Locations (M/T)
Control Box Component Locations (M/T)

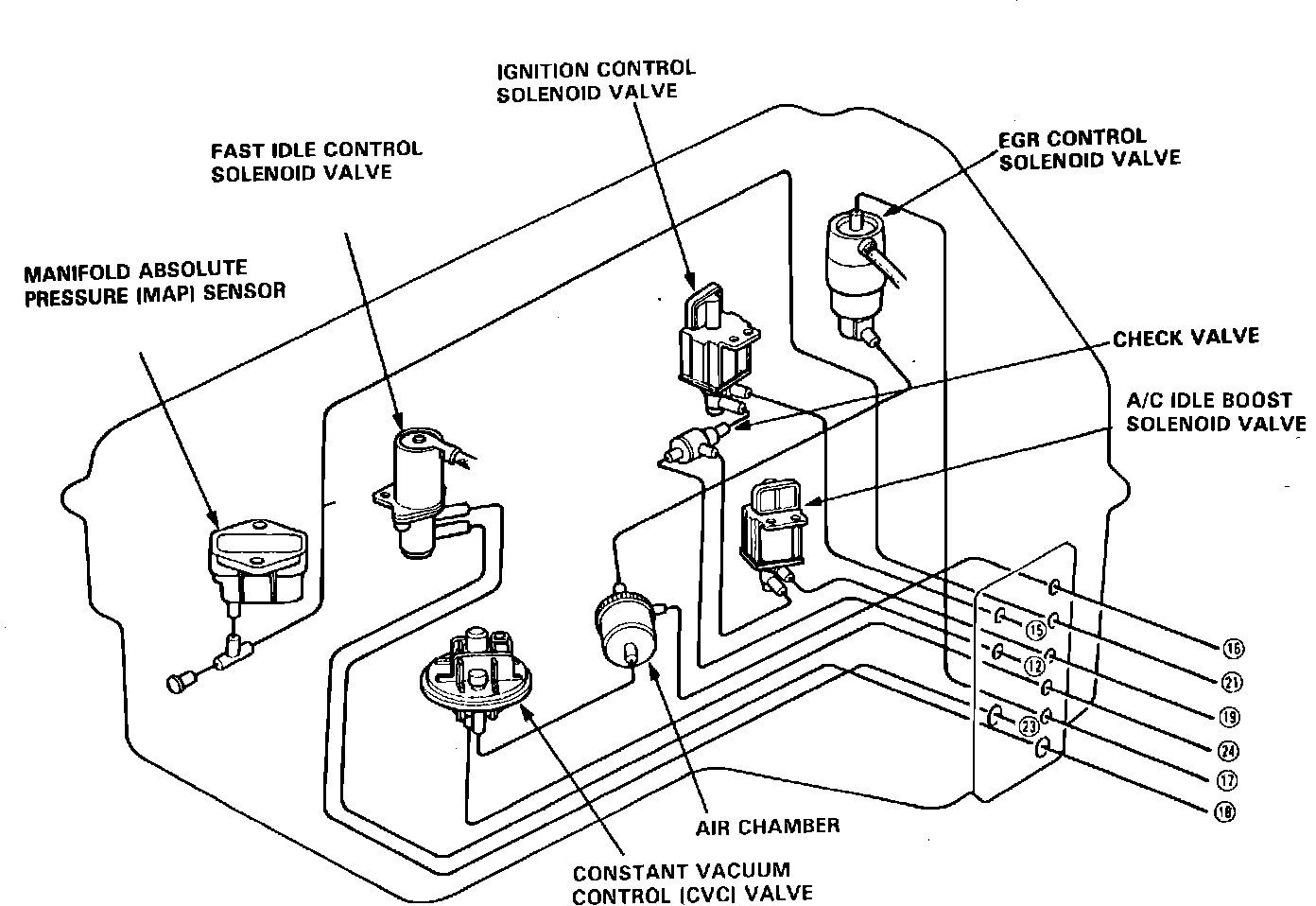

Fig. 268 Control Box Manual Transmission:
