Shift Rod

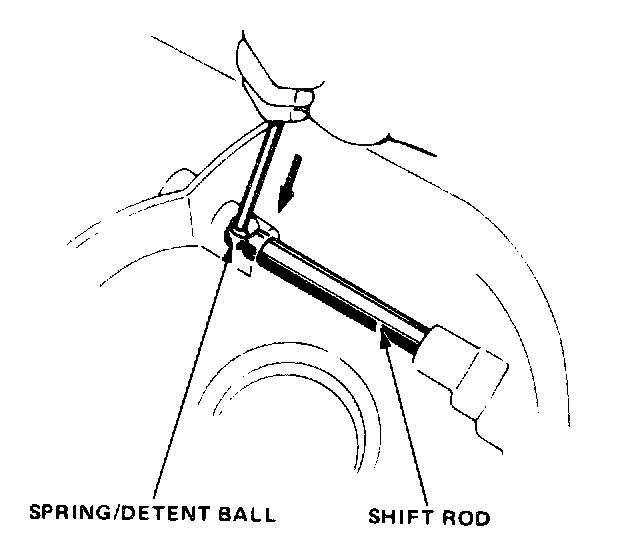

1. Install shift rod with detent notches facing downward.
2. Install spring and detent ball. Lubricate spring with molylube.
3. Install shift rod while pushing detent ball in.

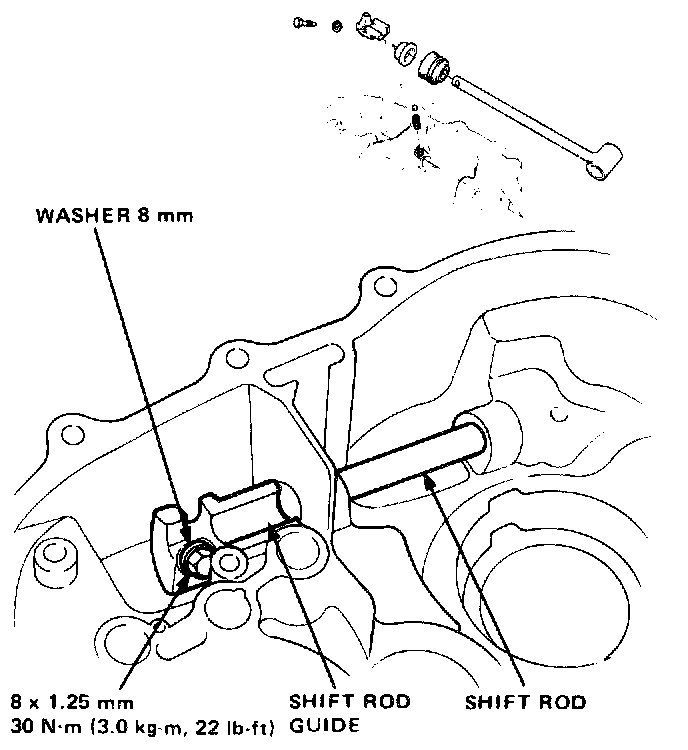

4. Install shift rod guide on shift rod.
