Brake Caliper
Brake Caliper

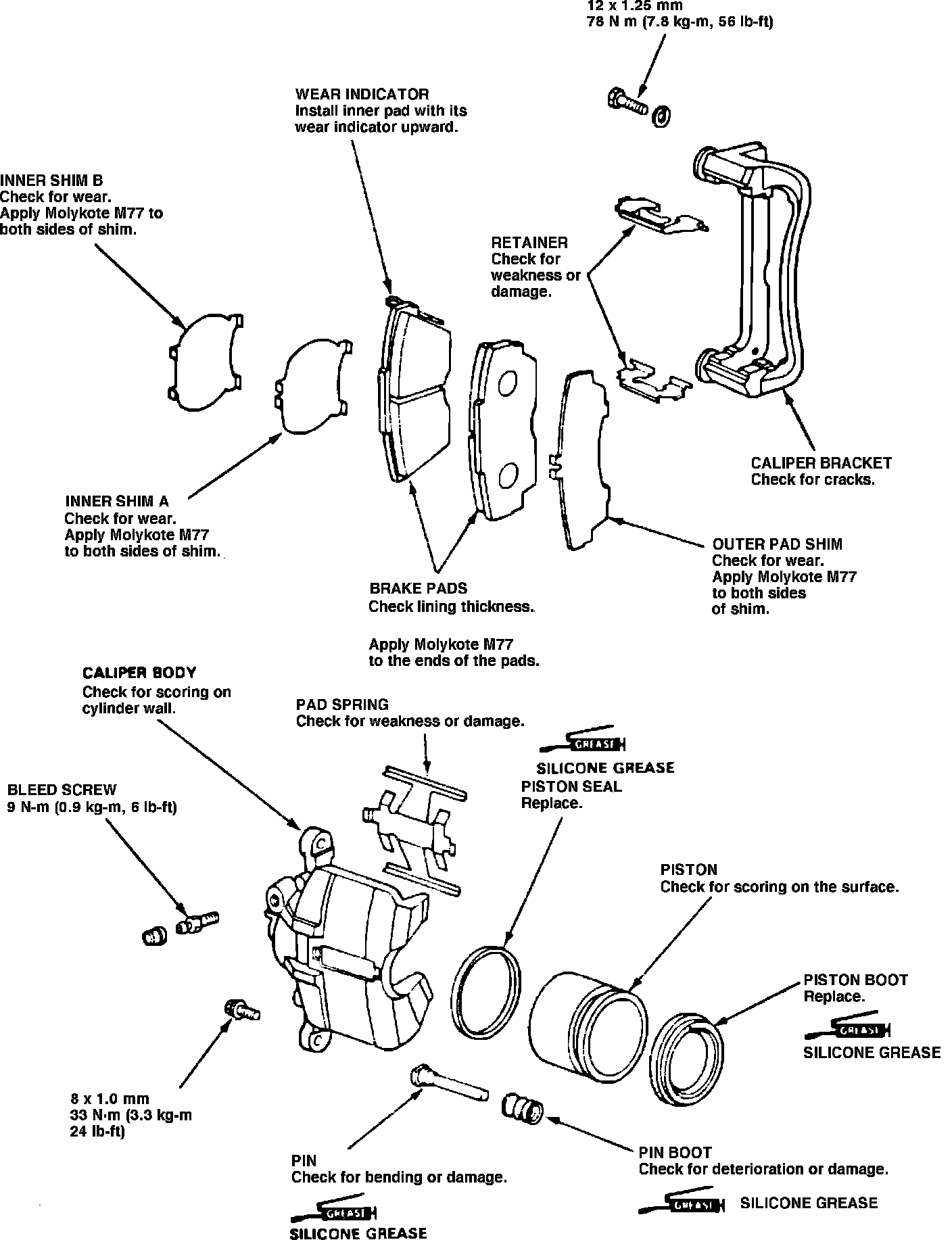

Fig. 13 Front disc brake caliper exploded view. 1988 Prelude W/ fuel injected engine:
