A/T Shift Position Switch Signal
A/T Shift Position Switch Signal

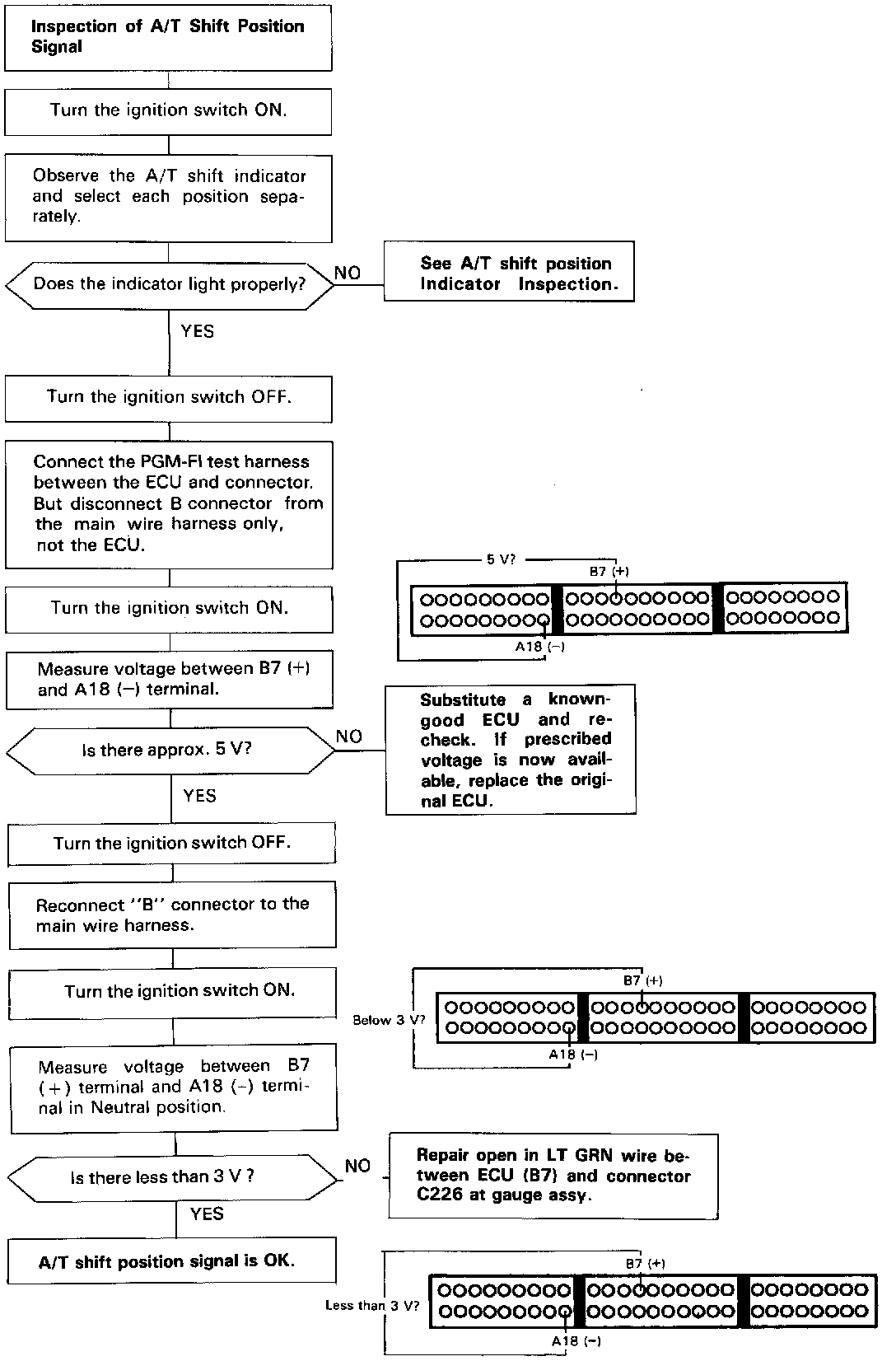

A/T Shift Position Signal
This signals the
PGM-FI ECU
when the transmission is in Neutral or Park.
