Tools - Code Key Cutters

88honda02
Model Applicable To File Under Bulletin No.

88-012
ALL ALL SPECIAL
TOOLS Issue Date
MAR 18, '88

Code Key Cutters

Most Hondas are designed with keys cut at a 45 degree angle with the exception of the 1988 Civics which are cut to a 47 degree angle. We now offer two sources to meet your minimum key cutting requirements.

^ The Exacta Code Key Cutter - Manufactured by Ilco Unican Co. is available from American Honda using your normal parts ordering procedures. The kits will be shipped to you directly from the manufacturer.

^ The Curtis Key Cutter - Available from Curtis Industries, Inc., Attn: Order Desk, 34999 Curtis Blvd., Eastlake, OH 44094-4899, 216/951-2400.

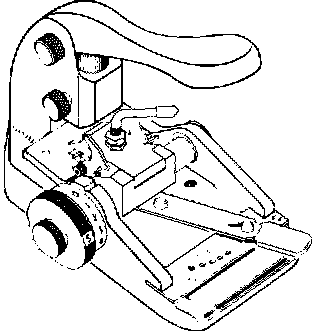

EXACTA BY ILCO UNICAN CO.



Features:
^ Cuts Honda and other brands' keys by changing four parts.

^ Up-dating for future key cutting needs also involves changing these four parts.

^ Portable, table-top operation.
Parts Information:

^ The Code Key Cutter Base Kit must be used with either the 47 degree Code Key Cutter Accessory Kit (for '88 Civics) or the 45 degree Code Key Cutter Accessory Kit (for all other Hondas).

^ Code Key Cutter Base Kit (includes Exacta and a Carrying Case).
H/C 2942548 T/N 07JAB-001000A

^ For '88 Civics use the 47 degree Code Key Cutter Accessory Kit with the Code Key Cutter Base Kit.
H/C 2942555 T/N 07JAB-001001A

^ For all other Hondas use the 45 degree Code Key Cutter Accessory Kit with the Code Key Cutter Base Kit.
H/C 2942886 T/N 07JAB-001002A

NOTE:
^ Key blanks do not come with the kits ordered from American Honda; refer to Parts Bulletin No. 88- 0007 for order information..
^ The Code Key Cutter Accessory Kits includes a depth knob, spacing plate, key insert, and punch & die.

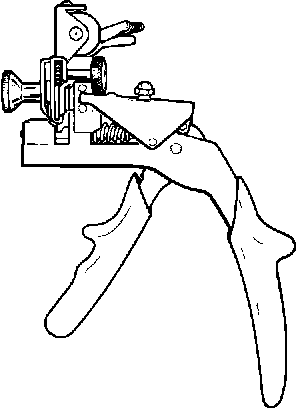

CURTIS INDUSTRIES INC.



Features:
^ One time setting of depth codes allows you to cut more than one copy without resetting.

^ Can be updated within the determined cutting angle of the cutter.

^ Portable, hand-held operation.
Parts Information:

^ For the '88 Civics you need the 47 degree Master Kit.

Kit No. 20423.

^ For all other Hondas, you need the 45 degree Master Kit.

Kit No. 19849

NOTE:
^ Both Master Kits include: code key cutter, carriages, camsets, decoder, key blanks and literature.

^ If you already have the 45 degree Code Key Cutter, 15B-45, but do not have the capability to cut Honda keys, you need to order the 45 degree Update Kit.

Kit No. 19850
