Home >> Honda >> 1988 >> Prelude L4-1958cc SOHC >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Testing and Inspection >> A/C Switch & Fan Switch

A/C Switch & Fan Switch

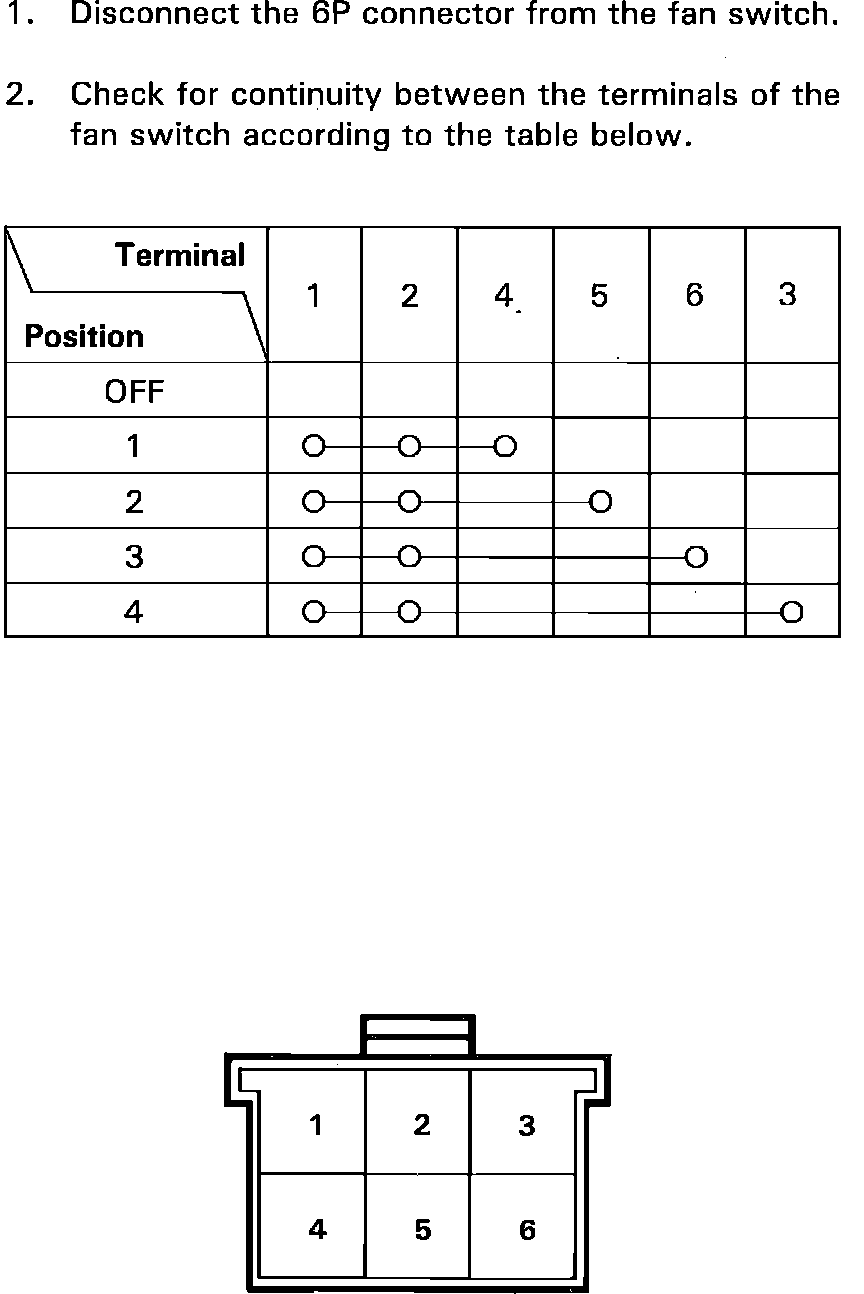

Fig. 47 Fan switch.:
