Mixture Control Solenoid - Slow Cut: Testing and Inspection

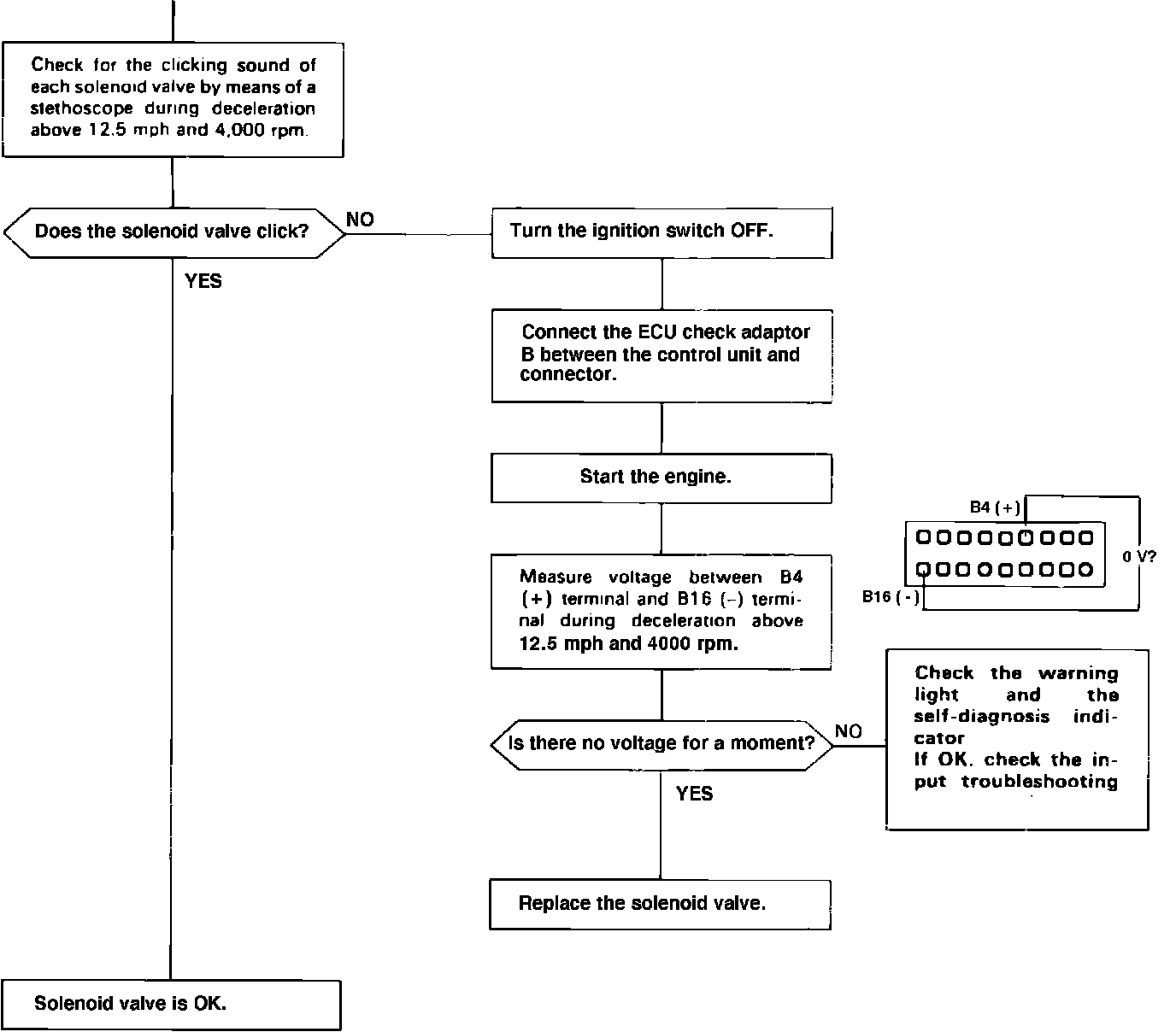

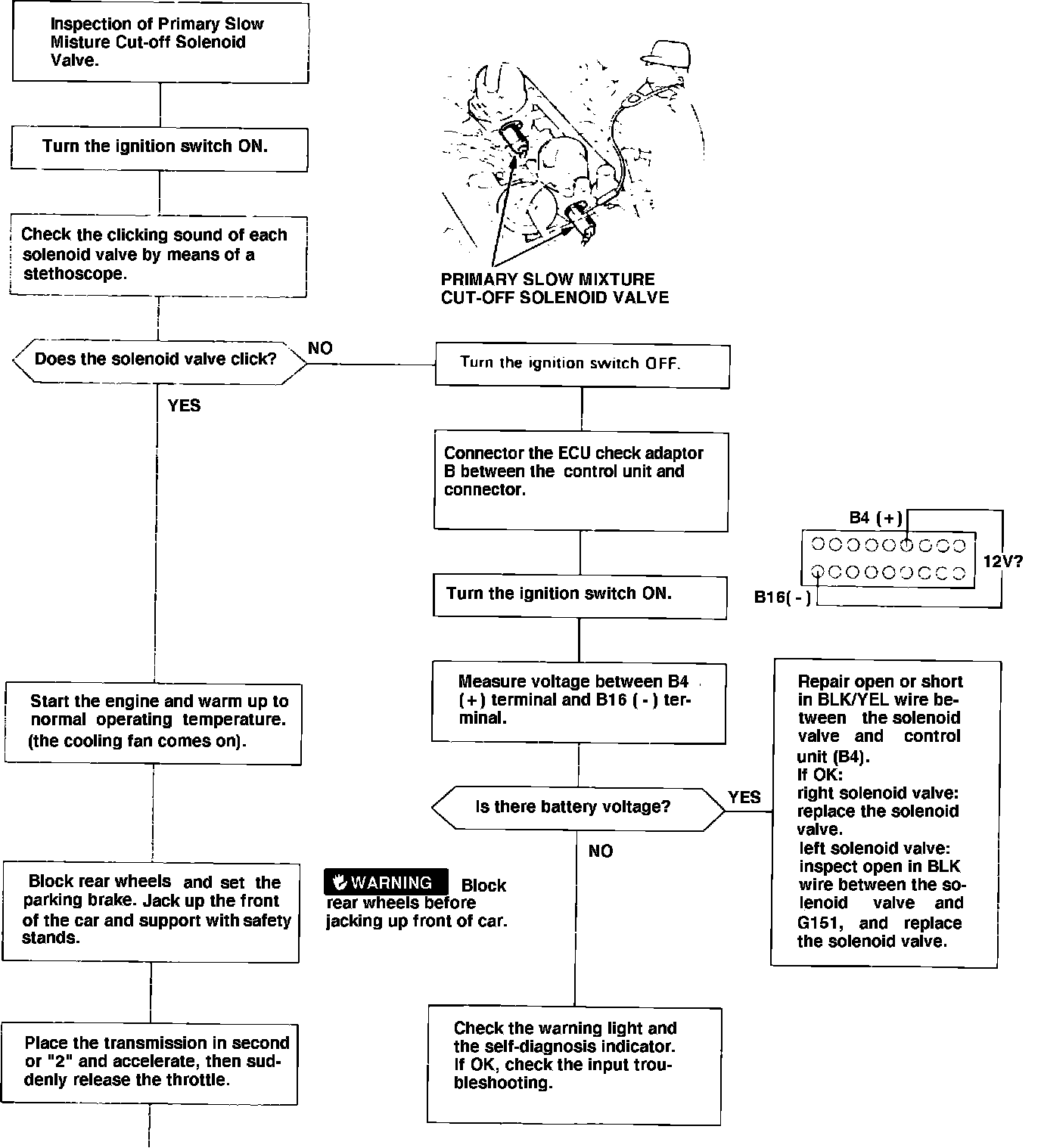

Fig. 29 Troubleshooting Flow Chart. Testing Primary Slow Mixture Cut-Off Valve:




Fig. 29 Troubleshooting Flow Chart. Testing Primary Slow Mixture Cut-Off Valve:





Refer to Fig. 29 for testing of primary slow mixture cut-off solenoid valve.
