Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
1989
>>
Accord L4-1955cc 2.0L SOHC 2-bbl
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Coolant Temperature Sensor/Switch (For Computer)
>>
Testing and Inspection
Coolant Temperature Sensor/Switch (For Computer): Testing and Inspection

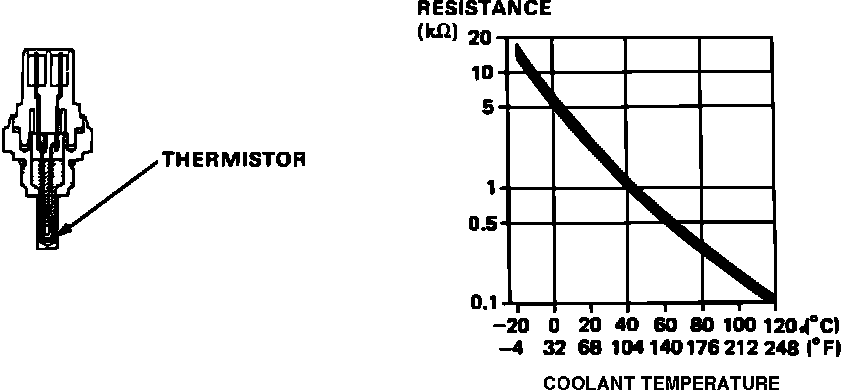

Fig. 22 Coolant Temperature (TW) Sensor And Specification Chart:

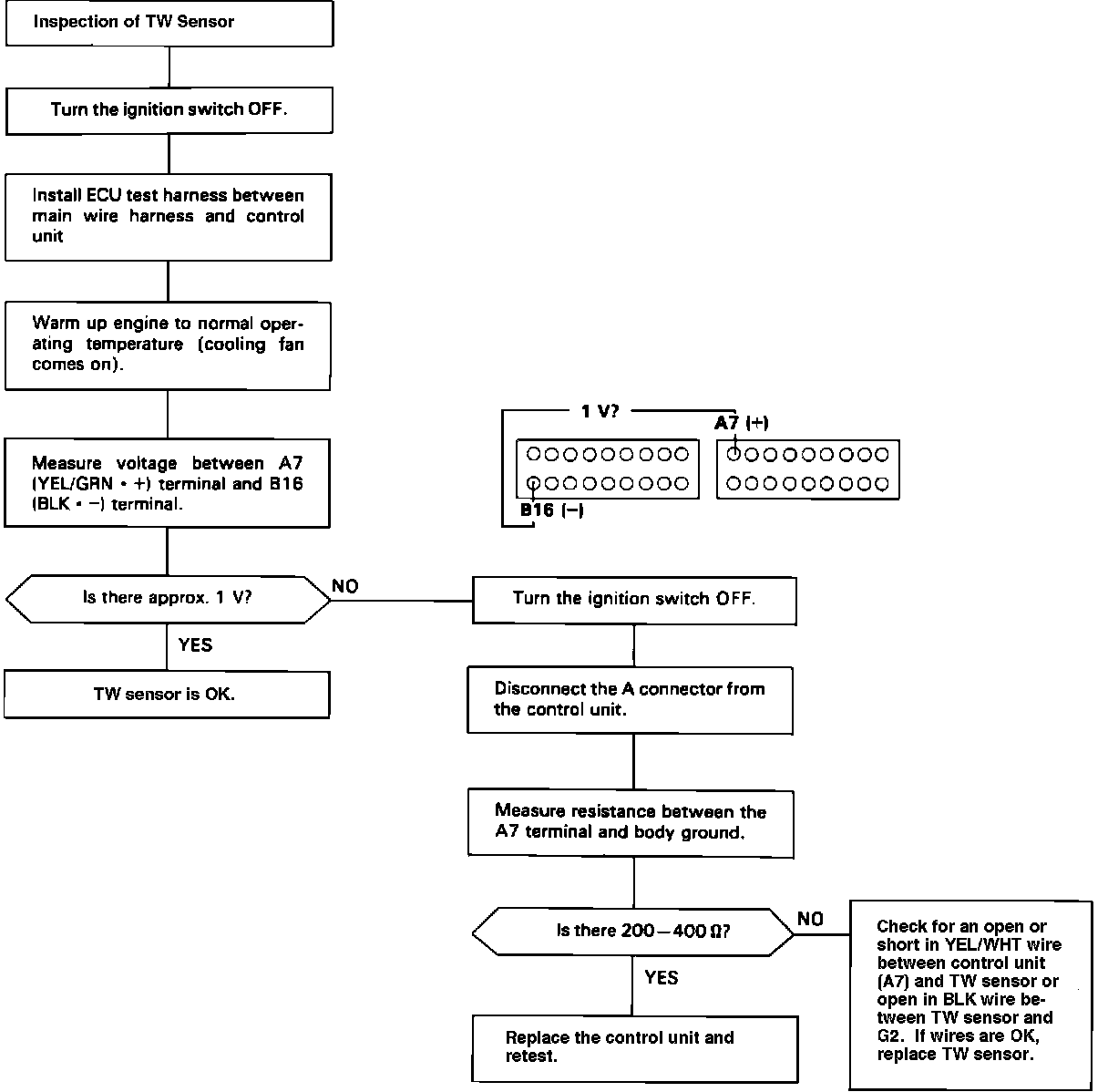

Fig. 23 Coolant Temperature (TW) Sensor Test:
