Feedback Control Solenoid: Testing and Inspection

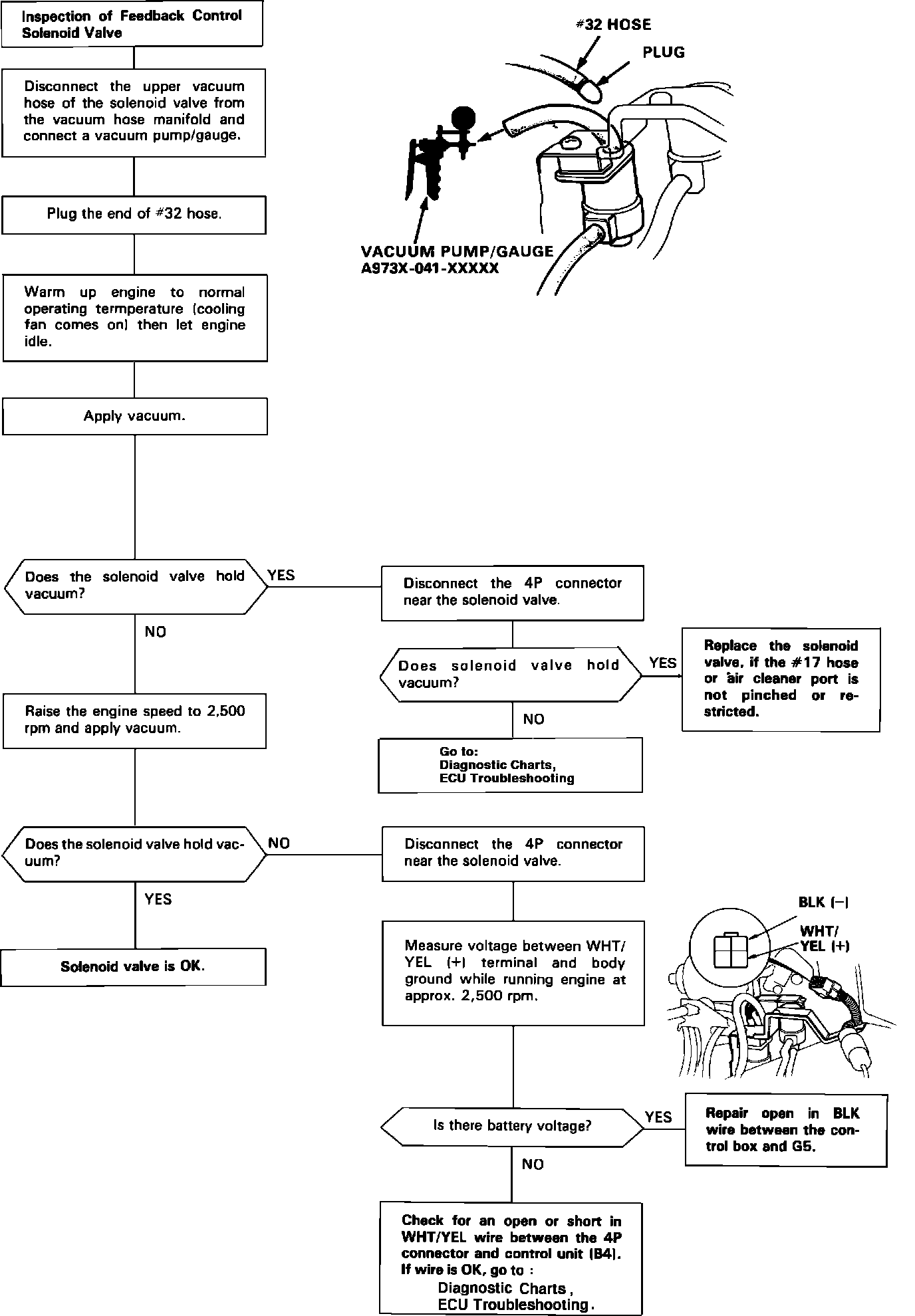

Fig. 84 Feedback Control Solenoid Valve Testing Procedure:
