A/C Signal
>>
Testing and Inspection
>>
Air Conditioning Signal
Air Conditioning Signal

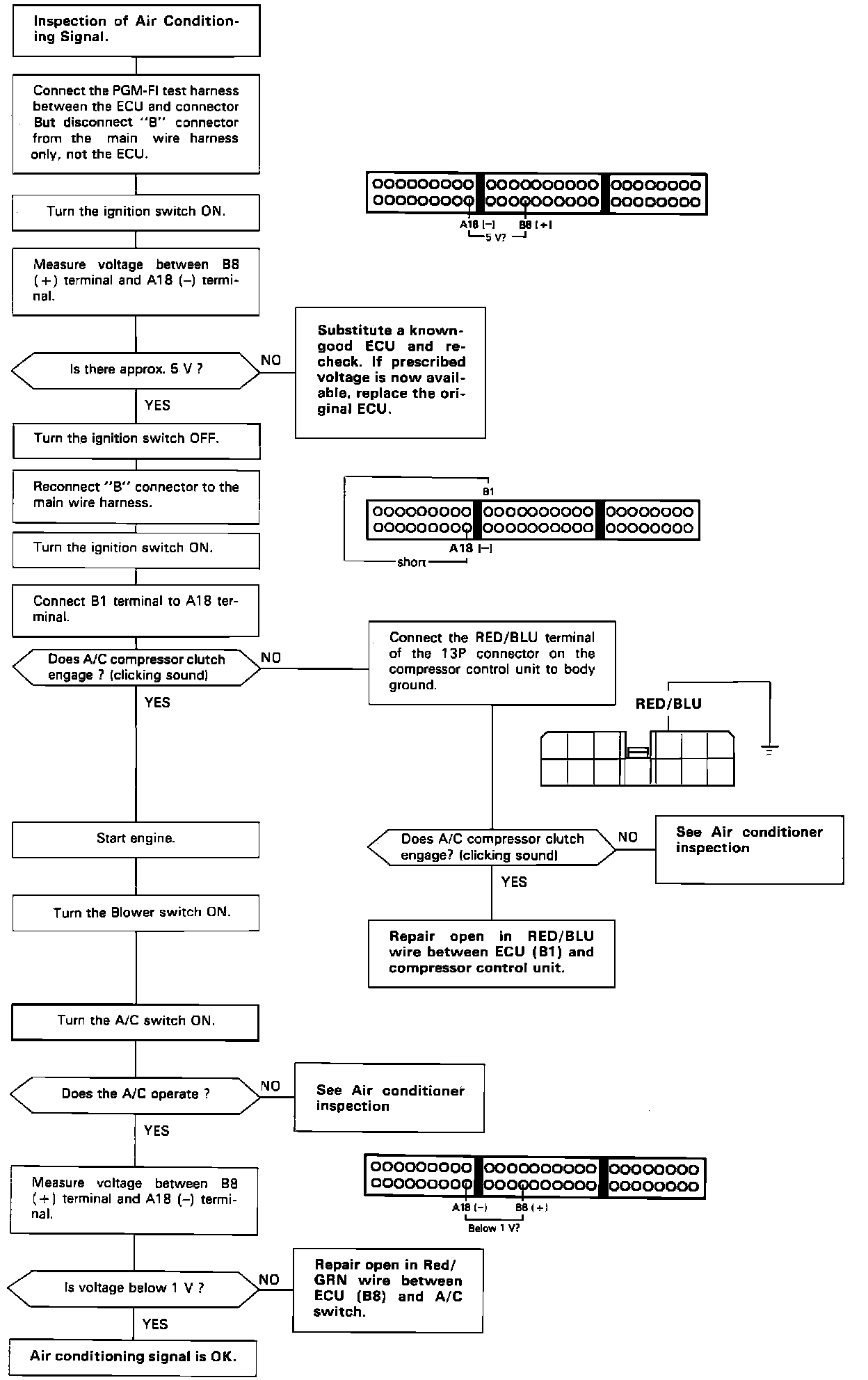

Fig. 41 Air Conditioning Signal Test:
