Rear

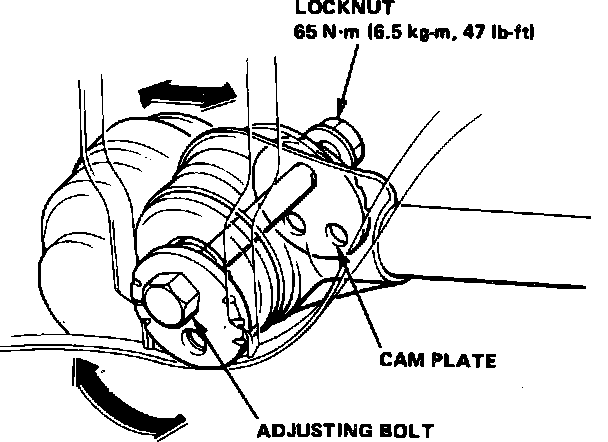

Fig. 7 Rear Toe-in Adjustment:

2 Wheel Steering

Ensure tires are properly inflated prior to checking or adjusting toe-in.

1. Release parking brake.
2. Loosen locknut in rear radius arm pivot bolt, then turn adjusting bolt, Fig. 7, until toe-in is within specifications.
3. Torque locknut to 33 ft. lbs.

4 Wheel Steering

1. On 1992,93 Preludes with 4 wheel steering, set rear main steering angle sensor in Neutral position and jumper service check connector. This will turn 4WS indicator On.
2. Rear toe is adjusted by loosening the tie rod end lock nuts and rotating the tie rods. After completing adjustment, torque tie rod end lock nuts to 33 ft. lbs.
