Removal and Installation

1. Remove the ashtray.

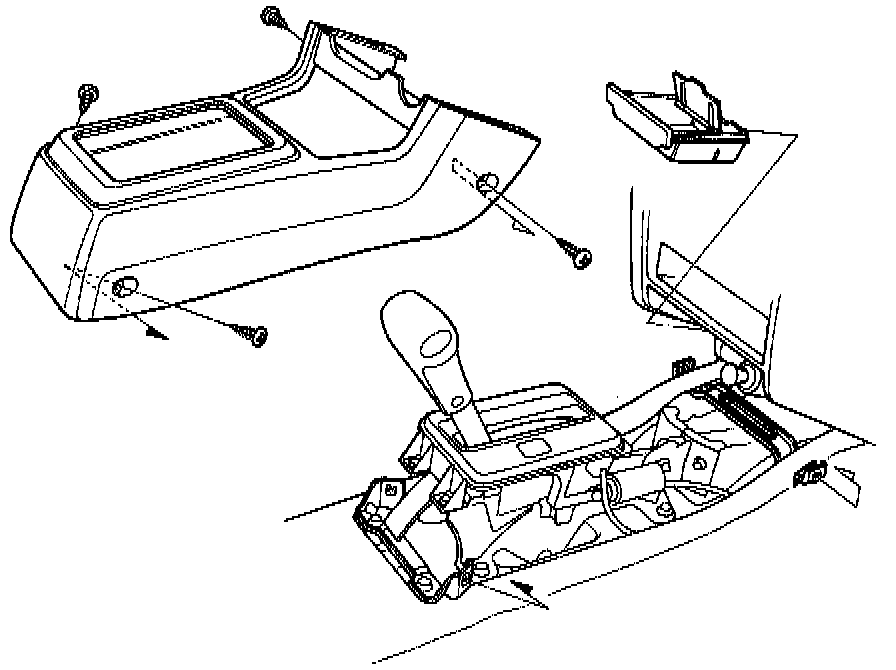

Remove the console.

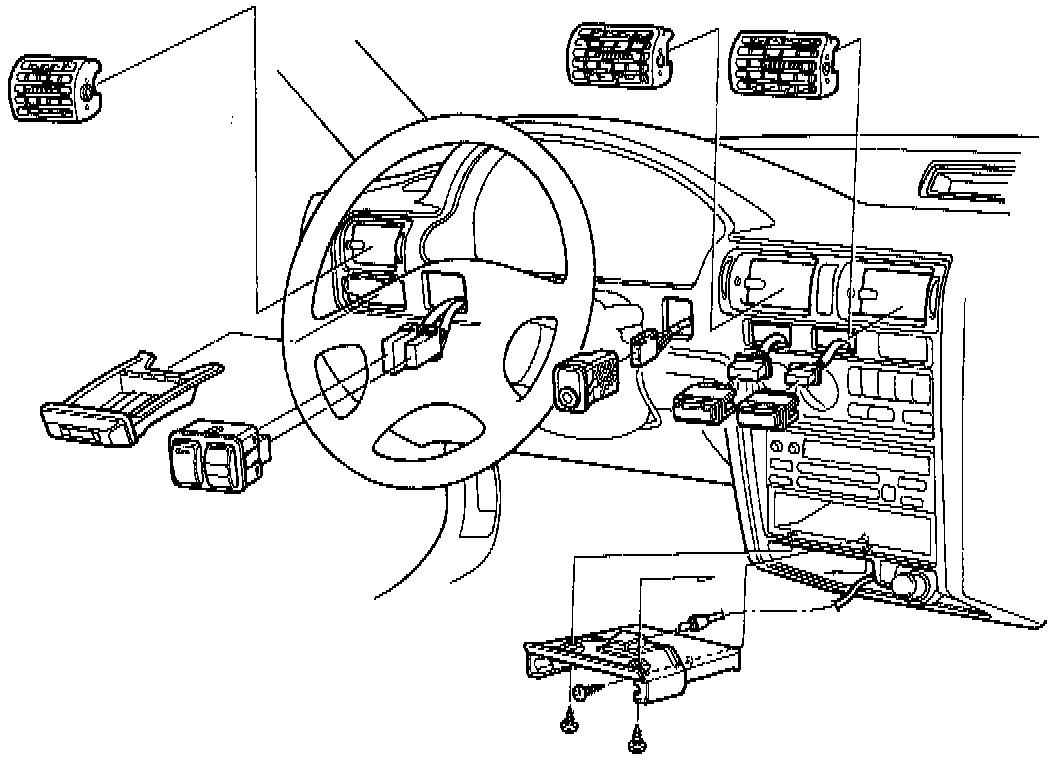

2. Remove the switches, coin box, air vent, and ashtray lighting bracket.

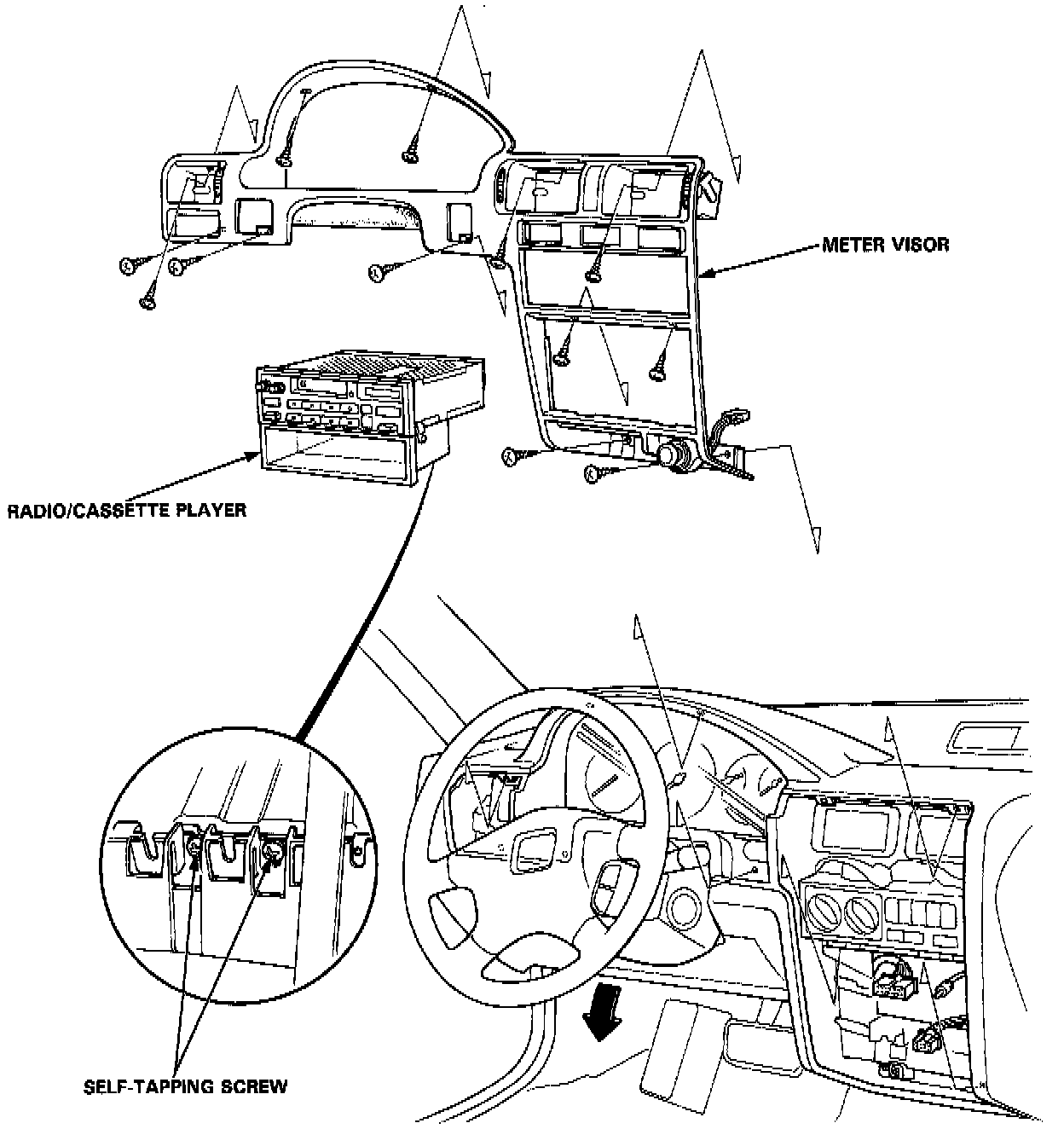

3. Remove the radio/cassette player and meter visor.
- Loosen the self-tapping screws under the radio, and remove the radio/cassette player.
- Tilt the steering column down, then remove the meter visor.

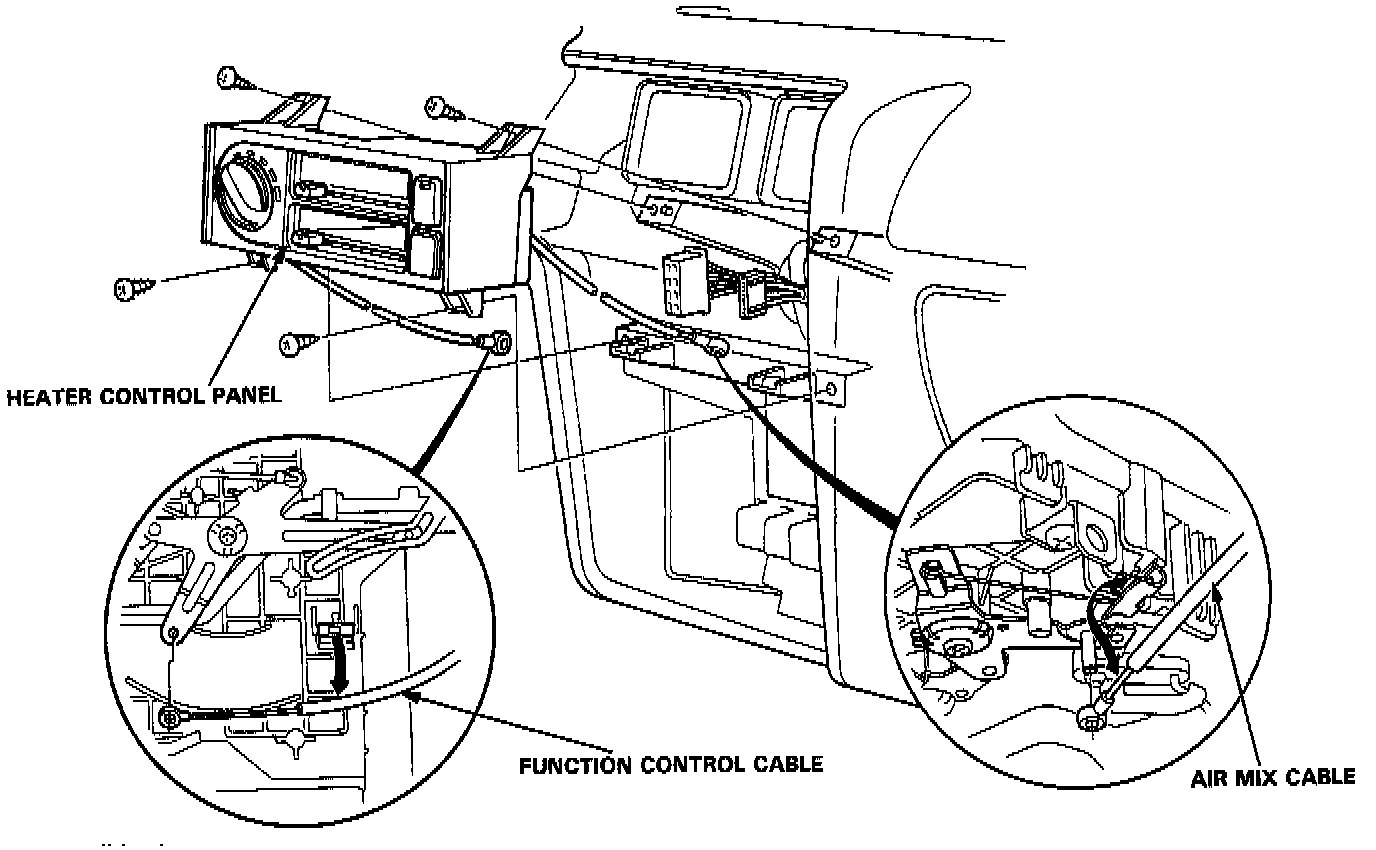

Button Type Control Panel:

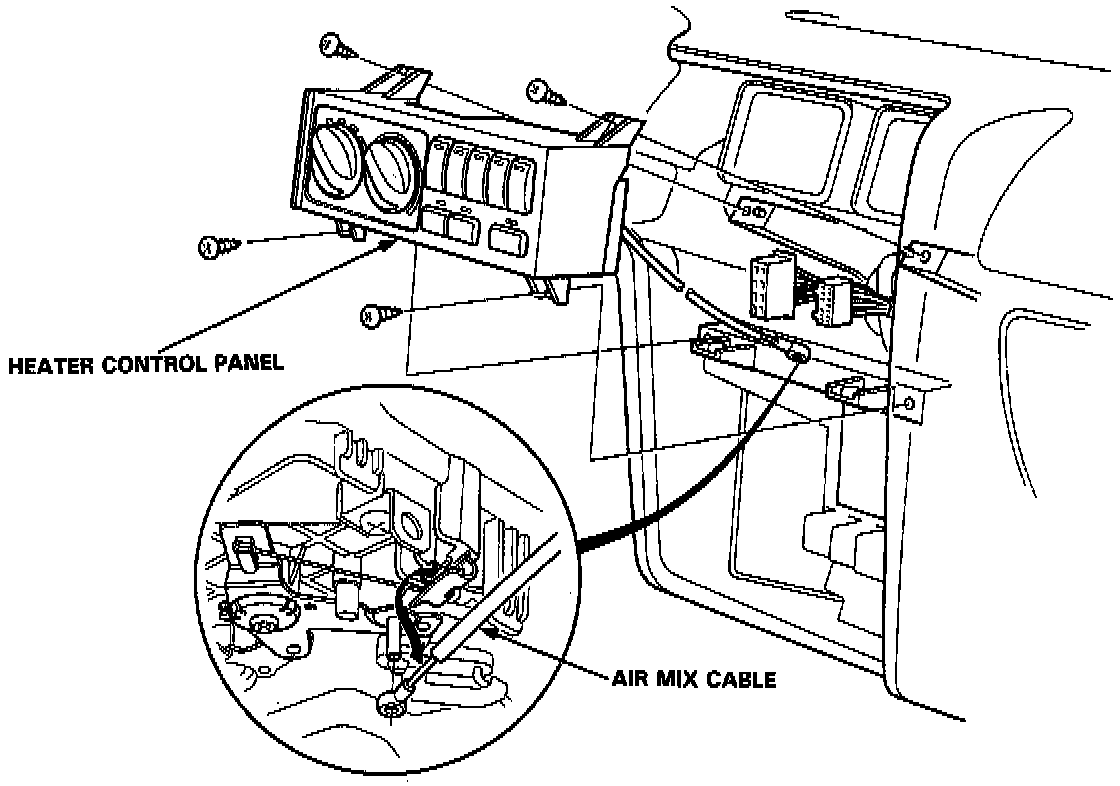

Lever Type Control Panel:

4. Disconnect the cables at the heater assembly.
5. Remove the self-tapping screws (4), pull out the heater control panel, disconnect the wire harness connectors, then remove the heater control panel.
6. Install in the reverse order of removal, reconnect the cables, making sure they are properly adjusted.
