Engine Oil: Service and Repair

CAUTION: Remove the drain plug carefully while the engine is hot, the hot oil may cause scalding.

NOTE: The oil filter should be replaced at each oil change.


1. Warm up the engine.
2. Drain the engine oil.

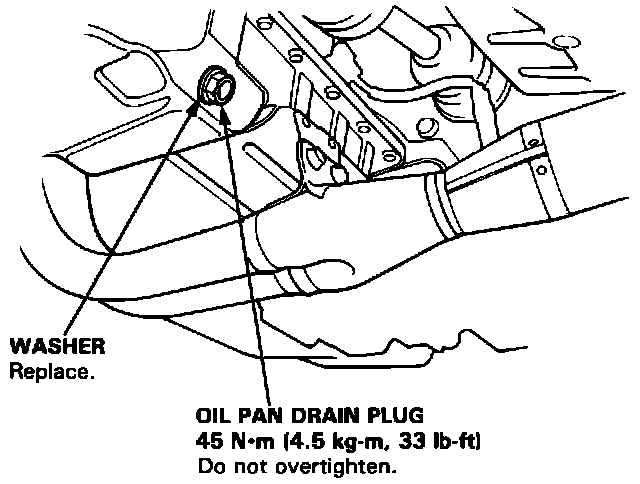

Engine Oil Drain Plug:

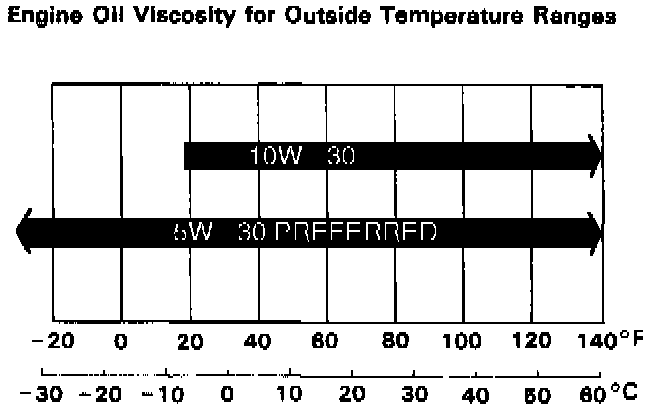

Oil Viscosity Recommendations:

3. Reinstall the drain plug with a new washer, and refill with the recommended oil for the recommended temperature.

Requirement:
API Service Grade: Use "Energy Conserving II" SG grade oil, 5W-30 preferred.
Capacity:
3.8 l (4.0 US qt, 3.3 Imp qt) at change, including filter.
4.9 l (5.2 US qt, 4.3 Imp qt) after engine overhaul.
Change:
Every 7,500 miles (12,000 km) or 6 months.

CAUTION: Do not overtighten the drain plug.
