Home
>>
Honda
>>
1990
>>
Accord L4-2156cc 2.2L SOHC
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Locations
>>
Under-Dash Fuse/Relay Box
Under-Dash Fuse/Relay Box

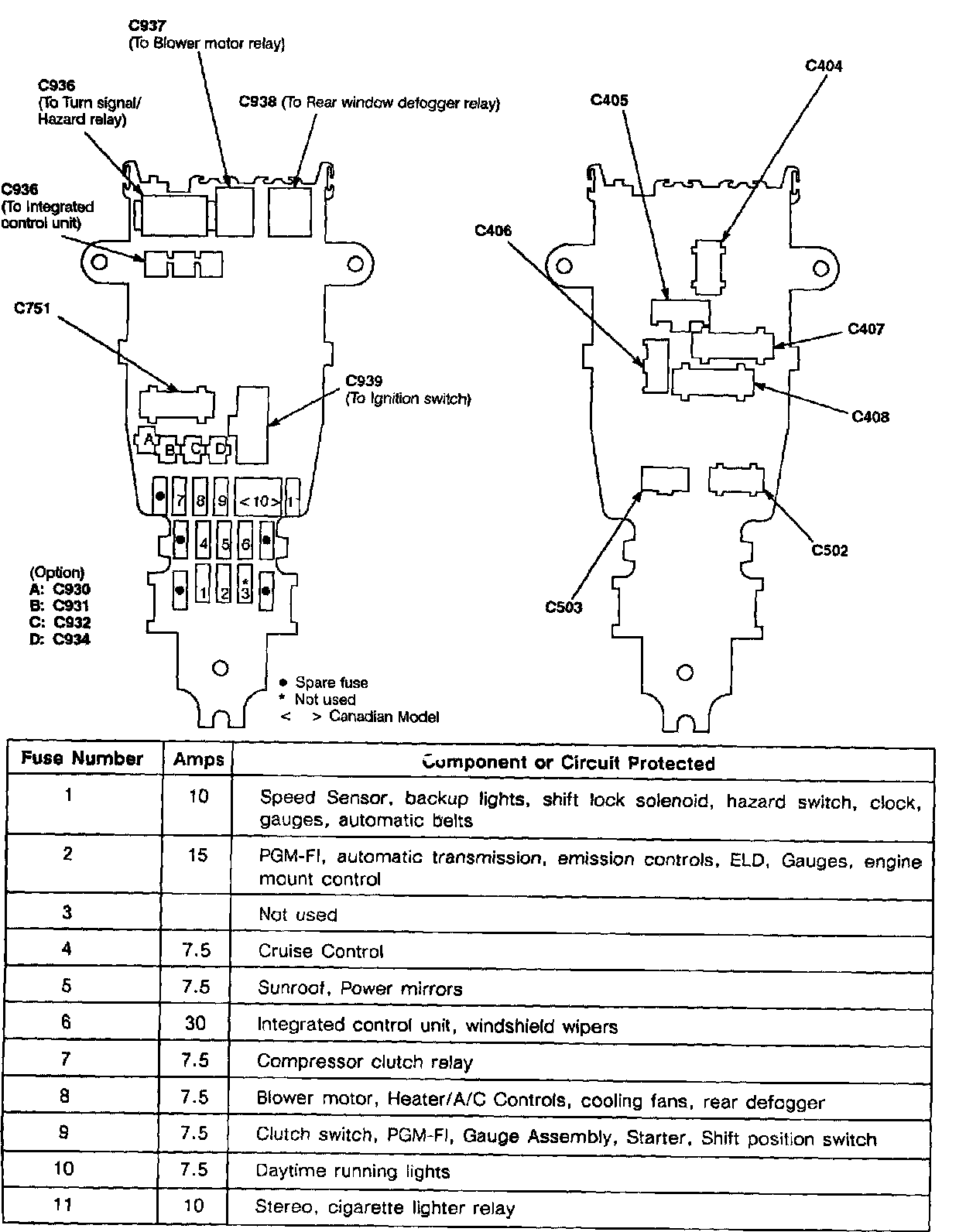

Dash Fuse Box Details:

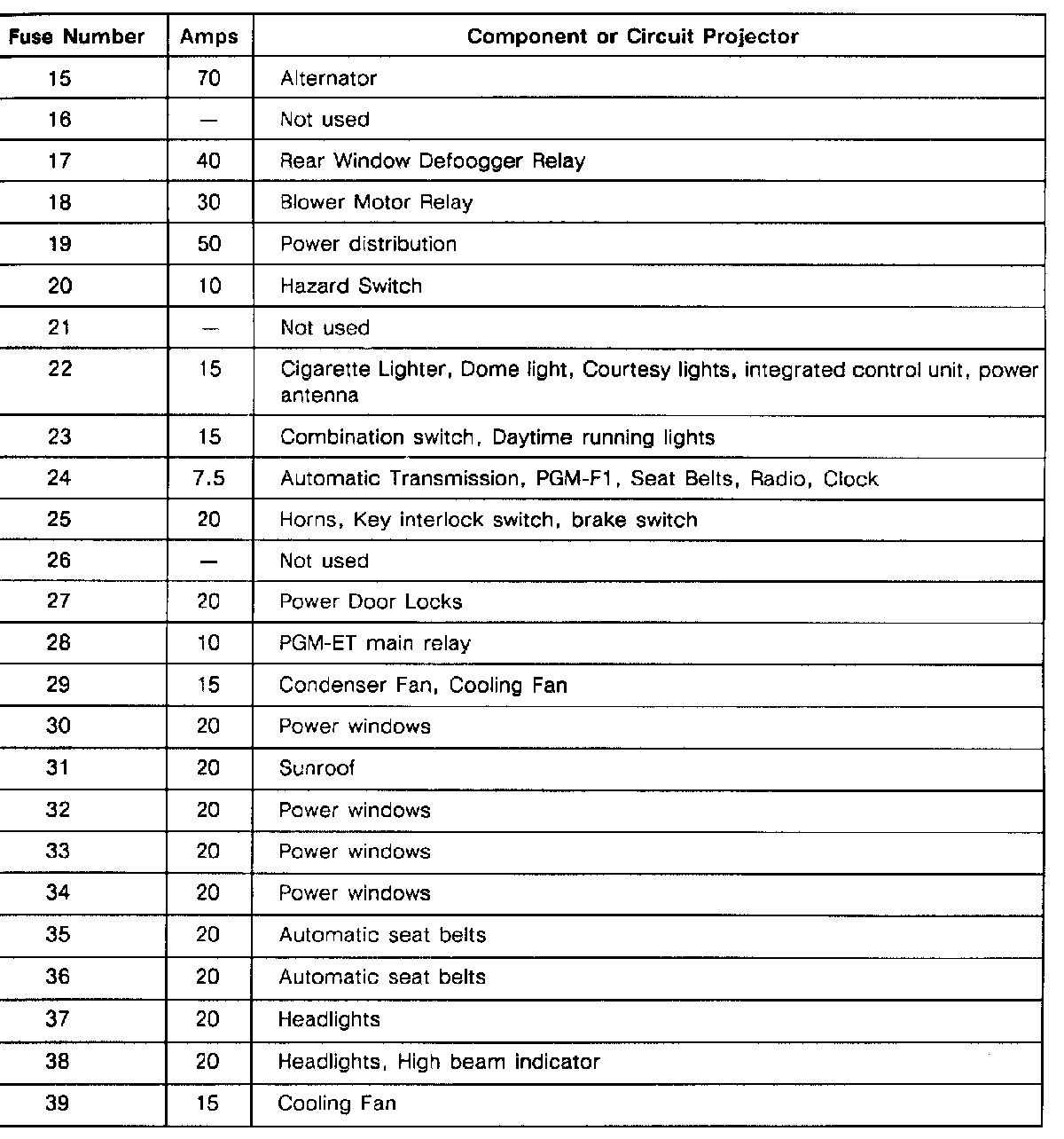

Dash Fuse Details:
