Central Electronics Box: Locations

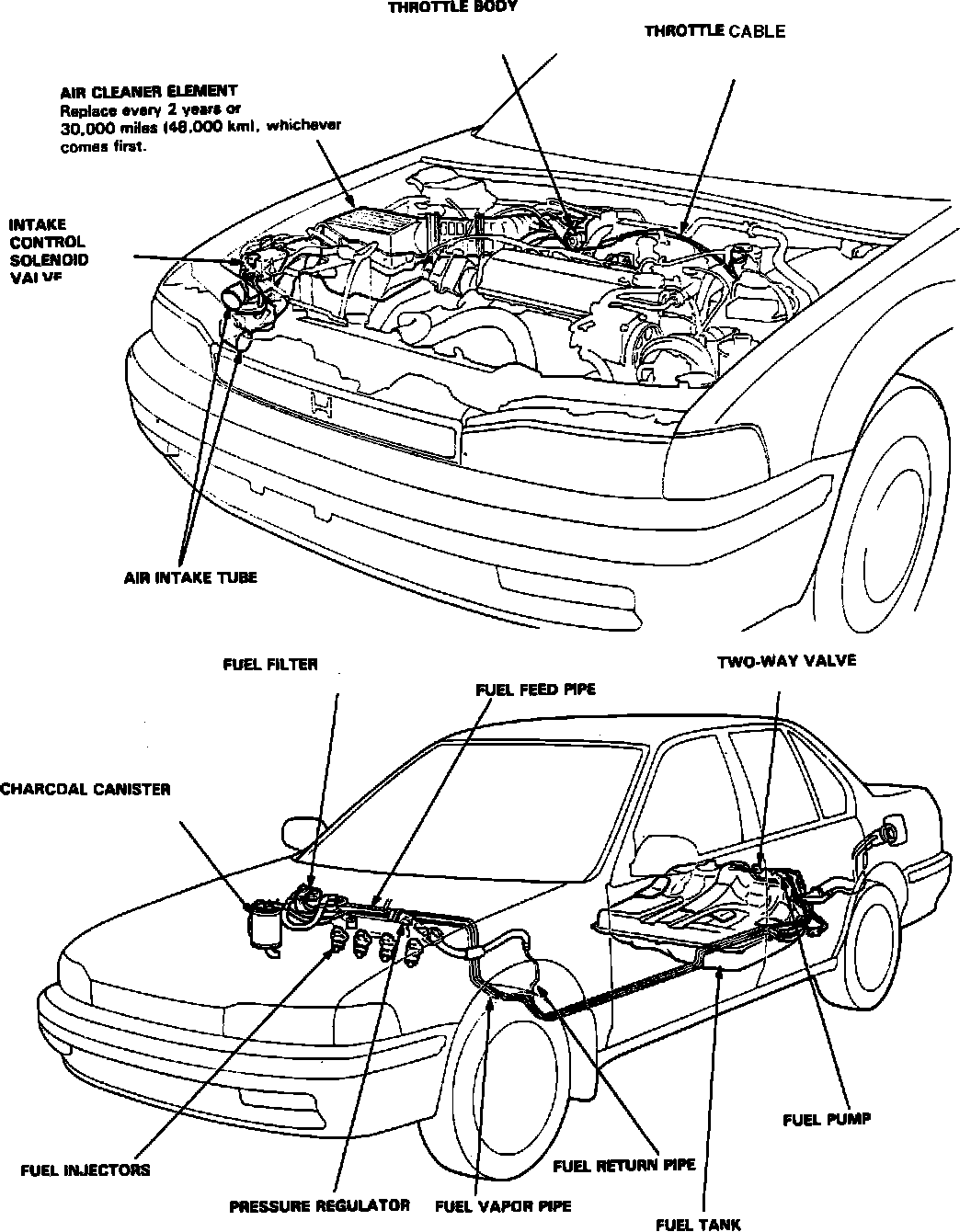

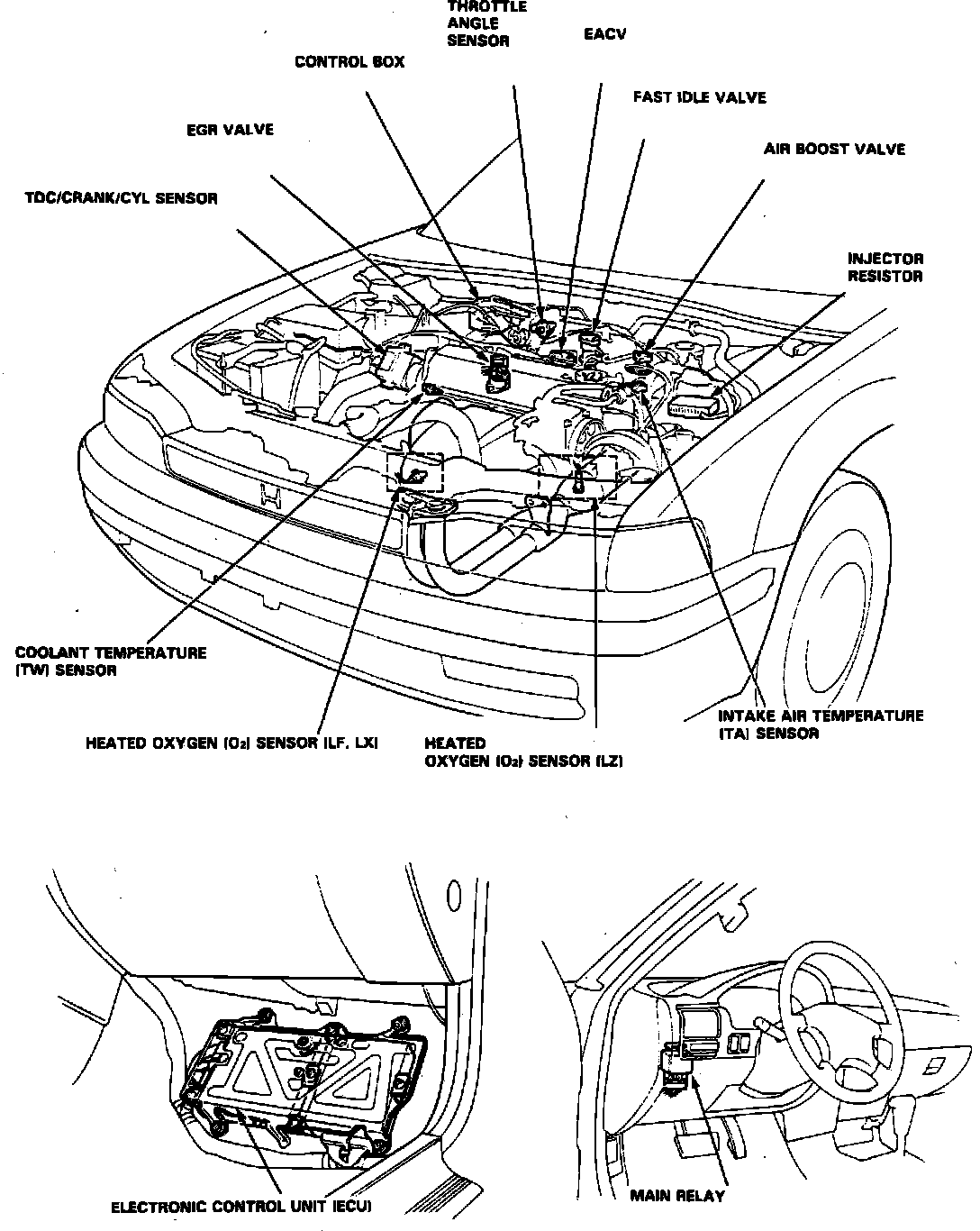

Fuel & Emissions System Components (Part 1 Of 2).:

Fuel & Emissions System Components (Part 2 Of 2).:

At RH Rear Of Engine Compartment

Applicable to: 1990 Models
