Home >> Honda >> 1991 >> Accord L4-2156cc 2.2L SOHC >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Diagrams >> Electrical Diagrams >> Fuse 36

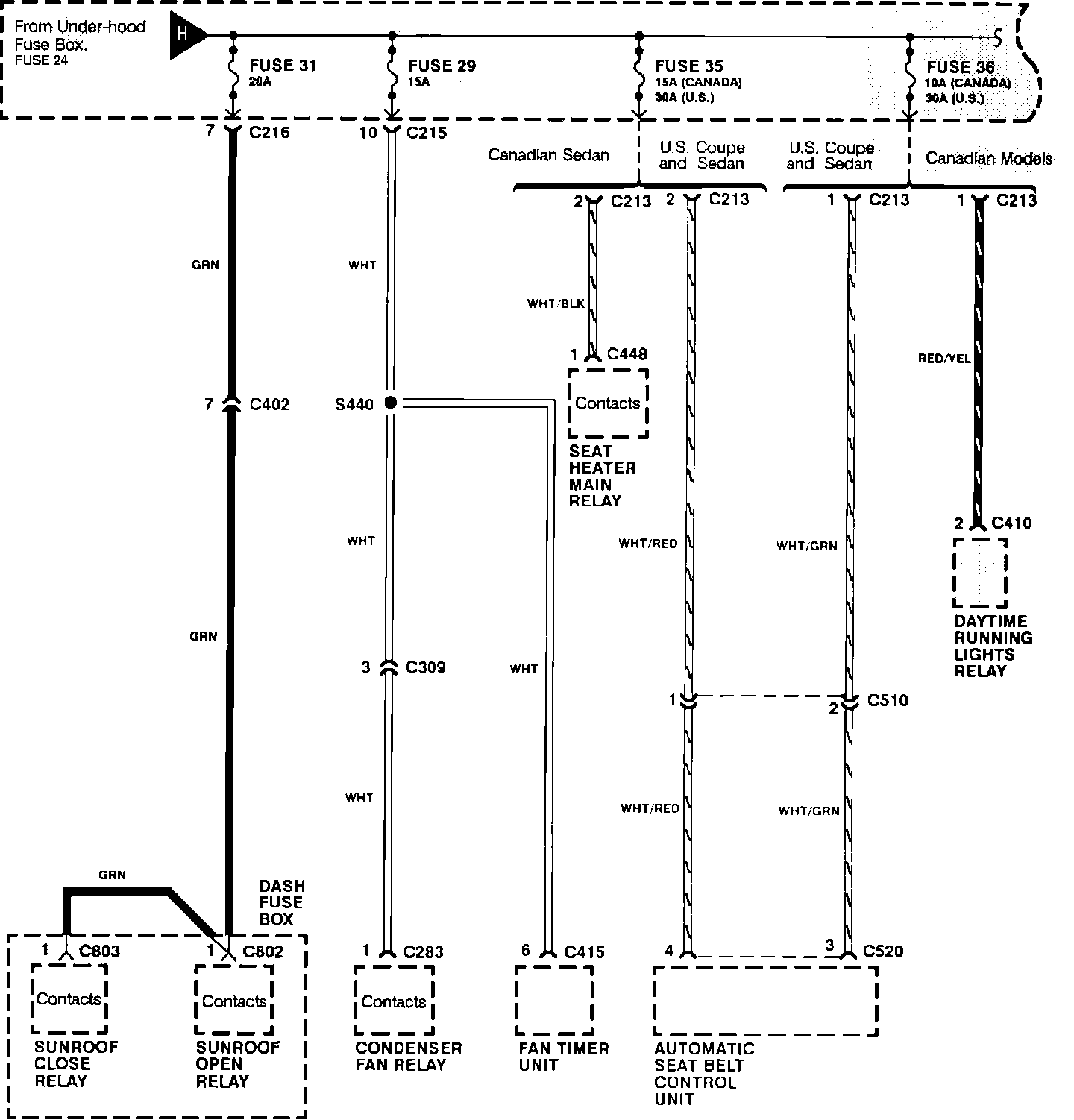

Fuse 36

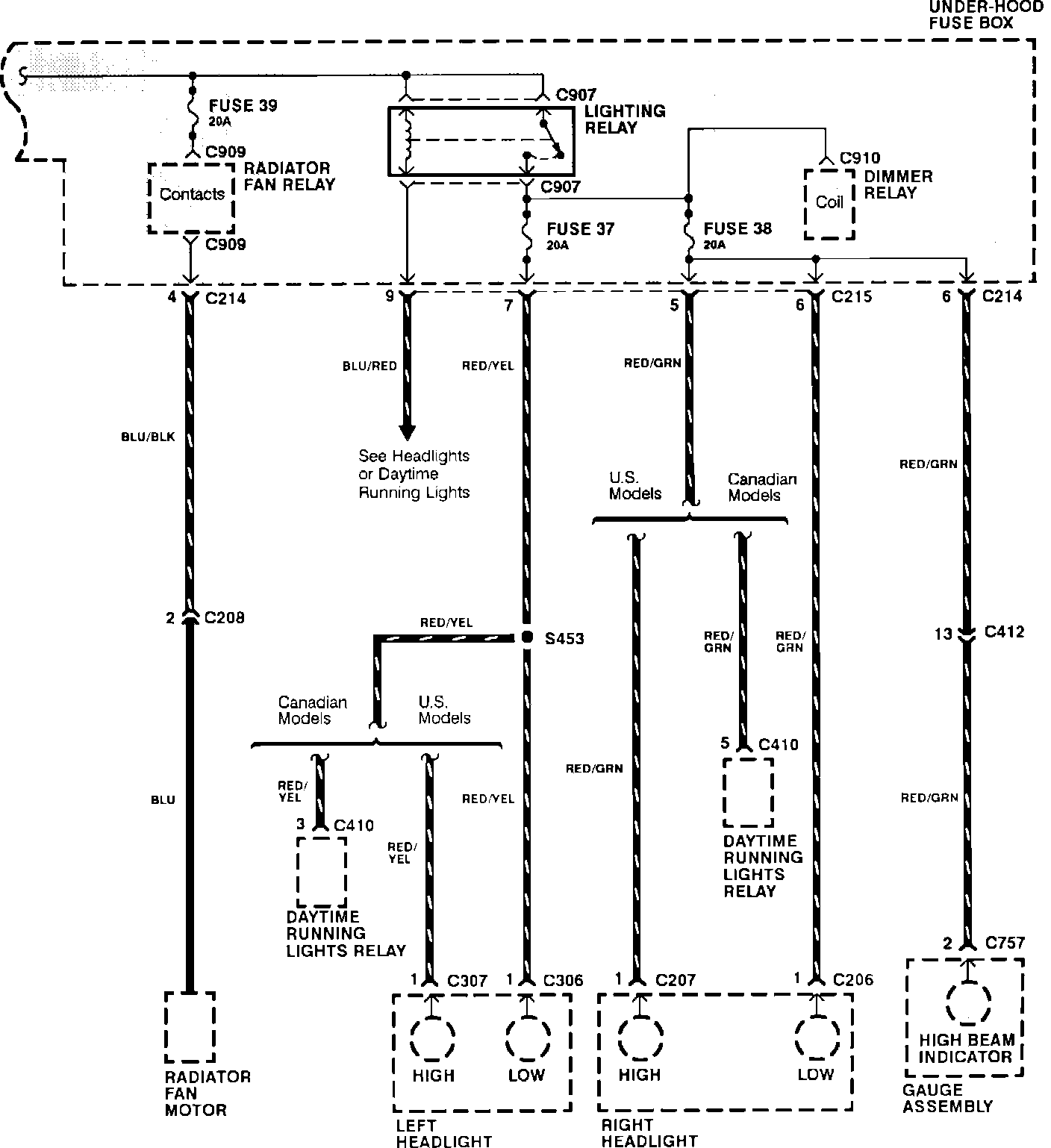

Power Distribution:

Power Distribution:
