Compressor Clutch Relay: Testing and Inspection

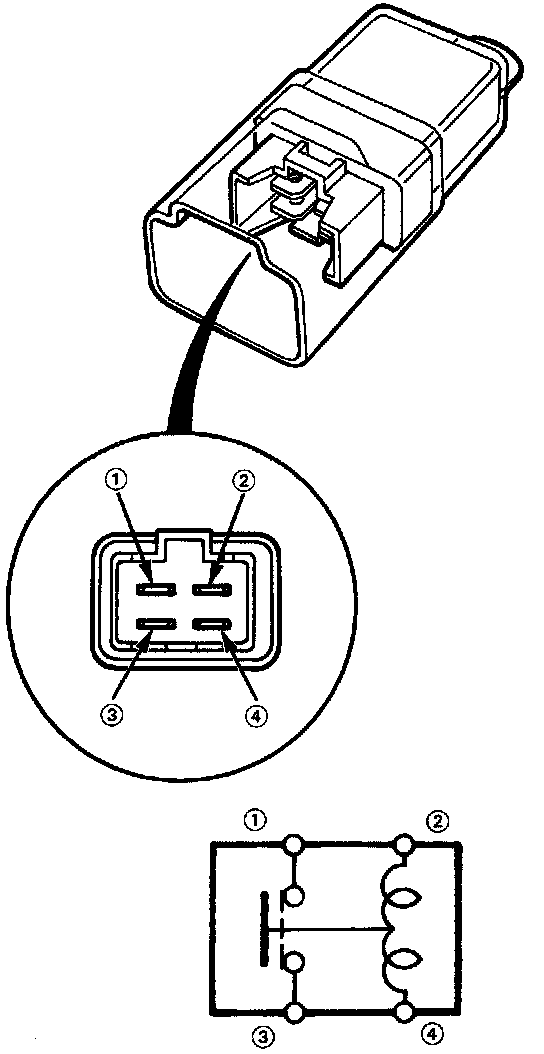

Relay




NOTE: All A/C system relays are similar.

1. Check for continuity between terminals (2) and (4).
2. Connect a 12 V battery across terminals (2) and (4).
There should be continuity between terminals (1) and (3).
