EX-R Model

Vacuum And Vapor Hose Diagram:

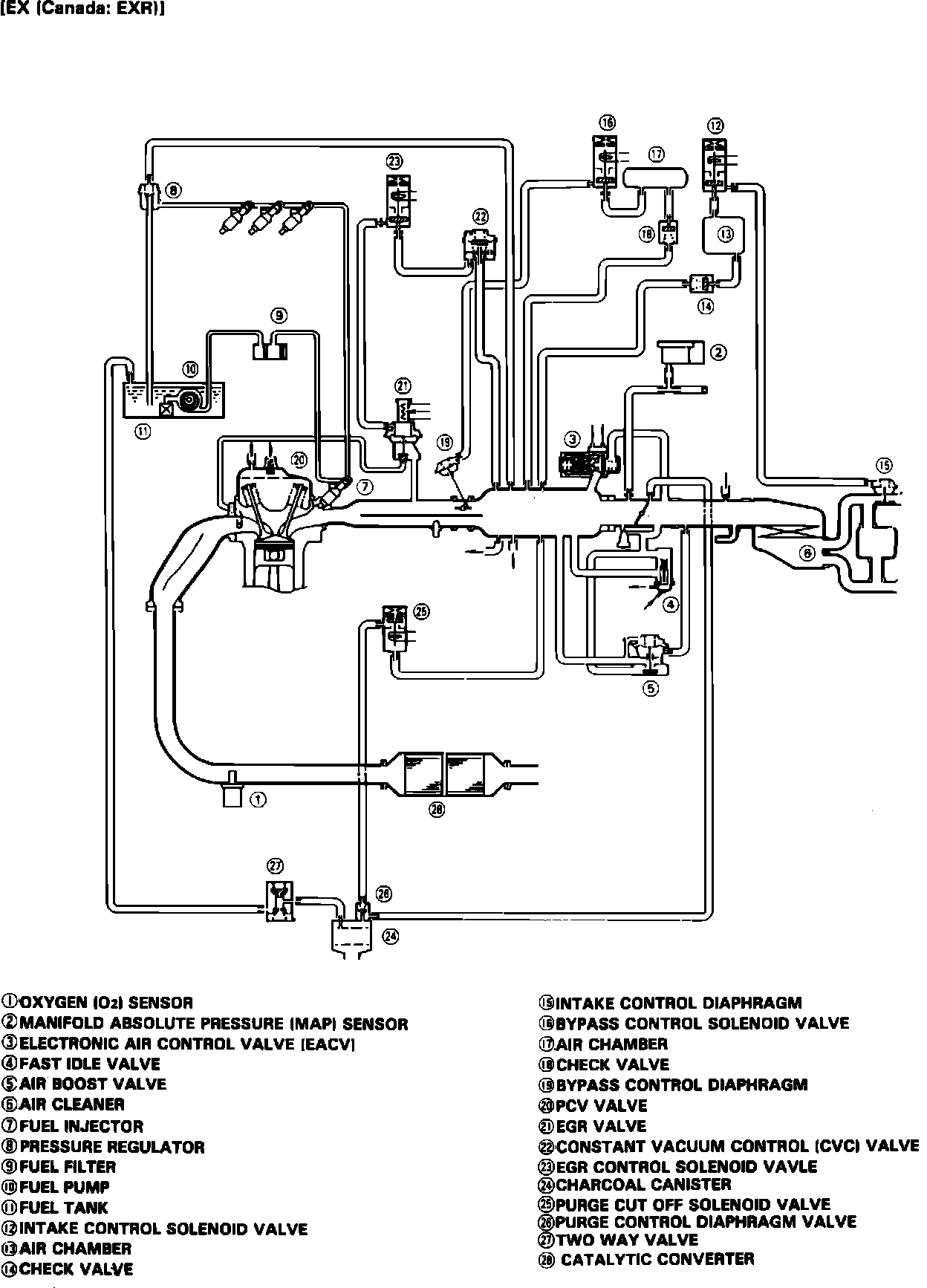

COMPLETE VACUUM AND VAPOR HOSE SCHEMATIC

Vacuum Hose Connections:

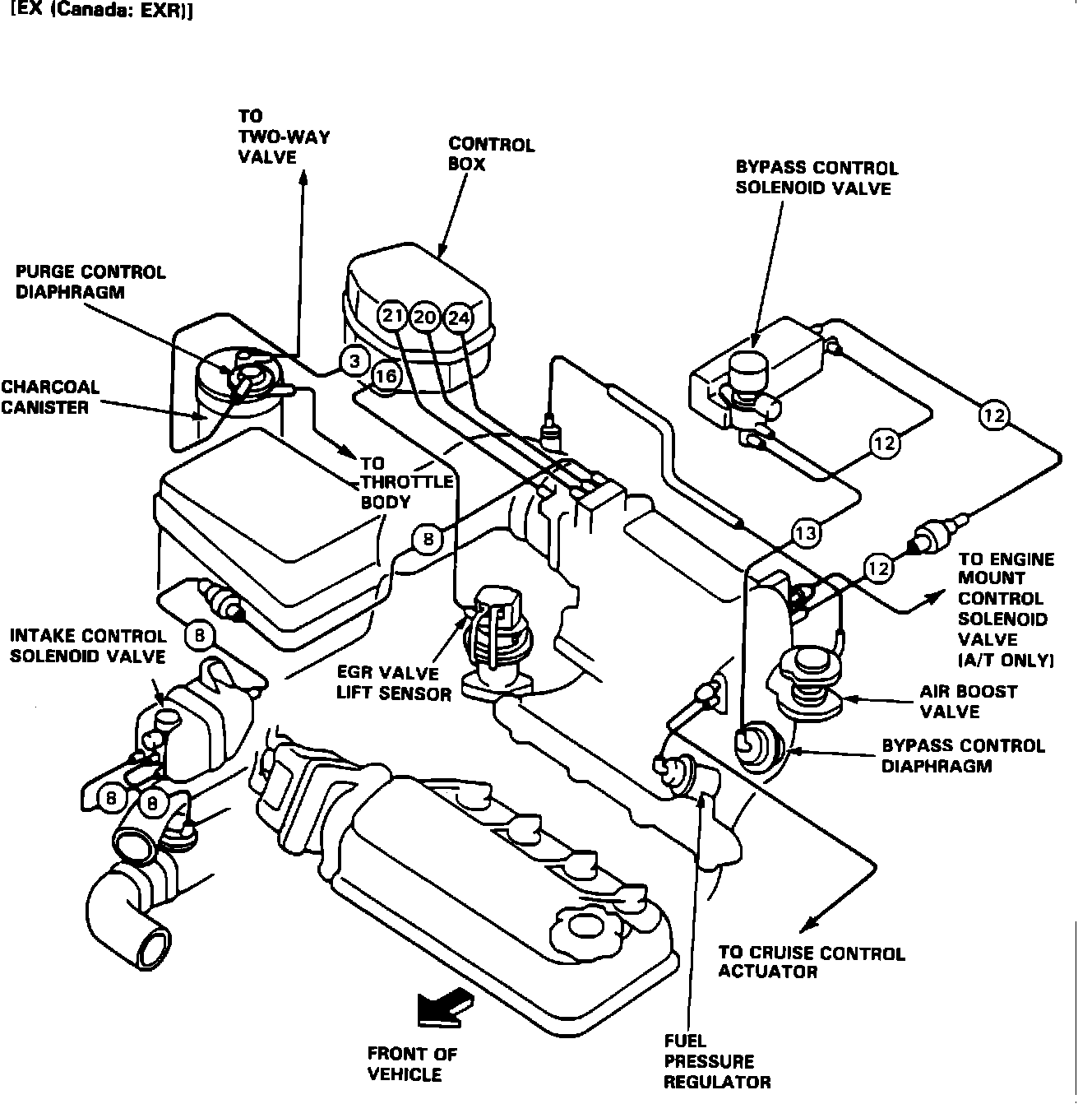

VACUUM HOSE ROUTING EXCEPT CONTROL BOX

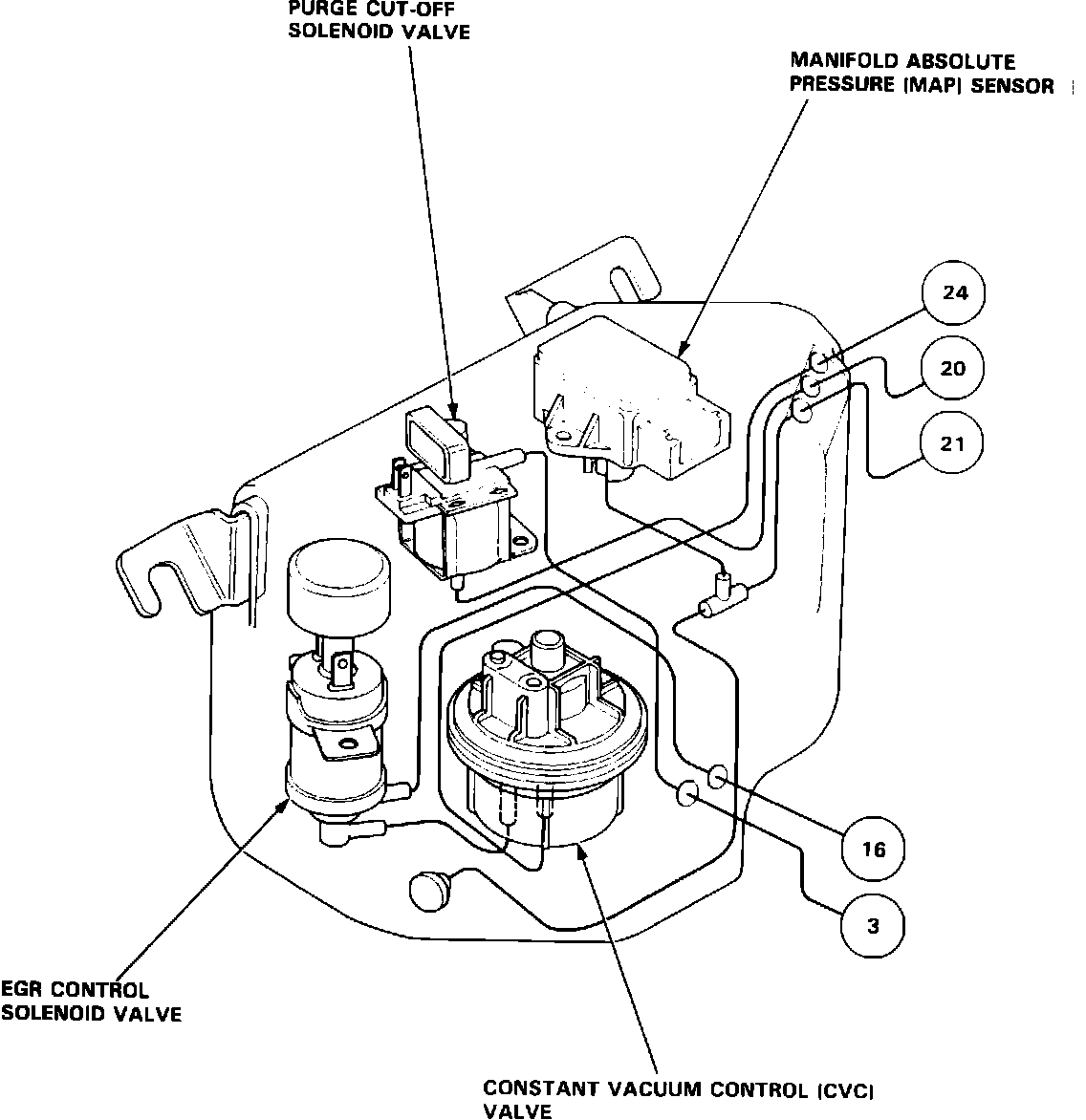

Control Box Vacuum Hose Routing:

VACUUM HOSE ROUTING CONTROL BOX
