Central Electronics Box: Locations

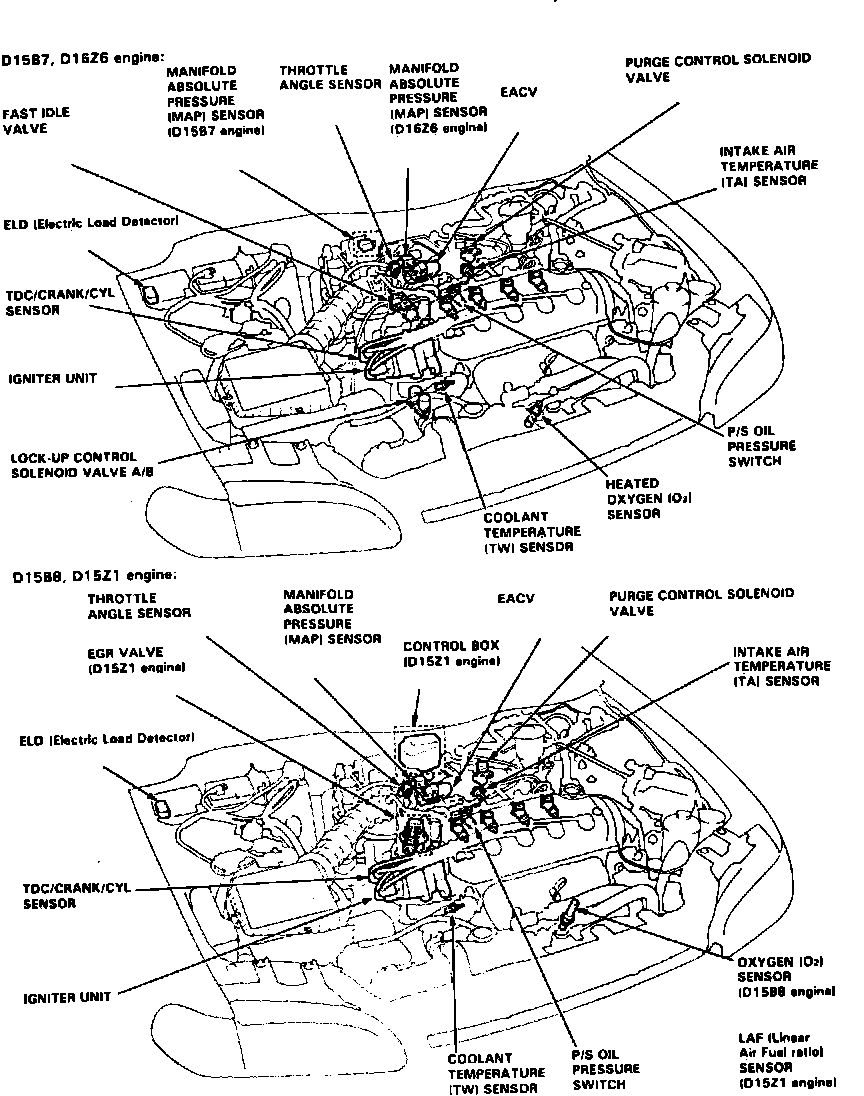

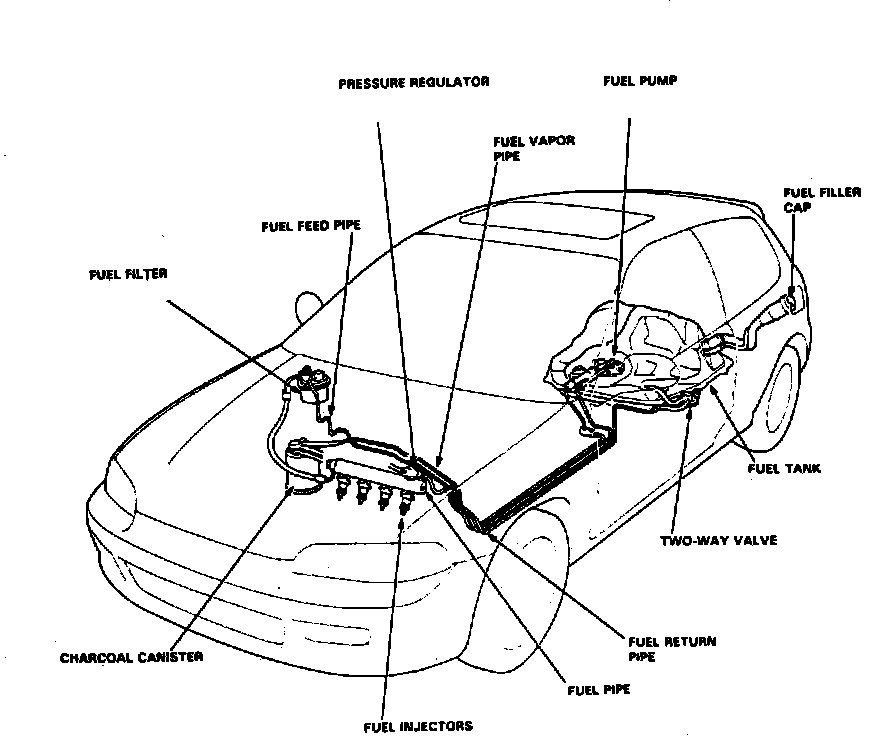

Fuel & Emissions System Components (Part 1 Of 3).:

Fuel & Emissions System Components (Part 1 Of 3).:

Fuel & Emissions System Components (Part 1 Of 3).:

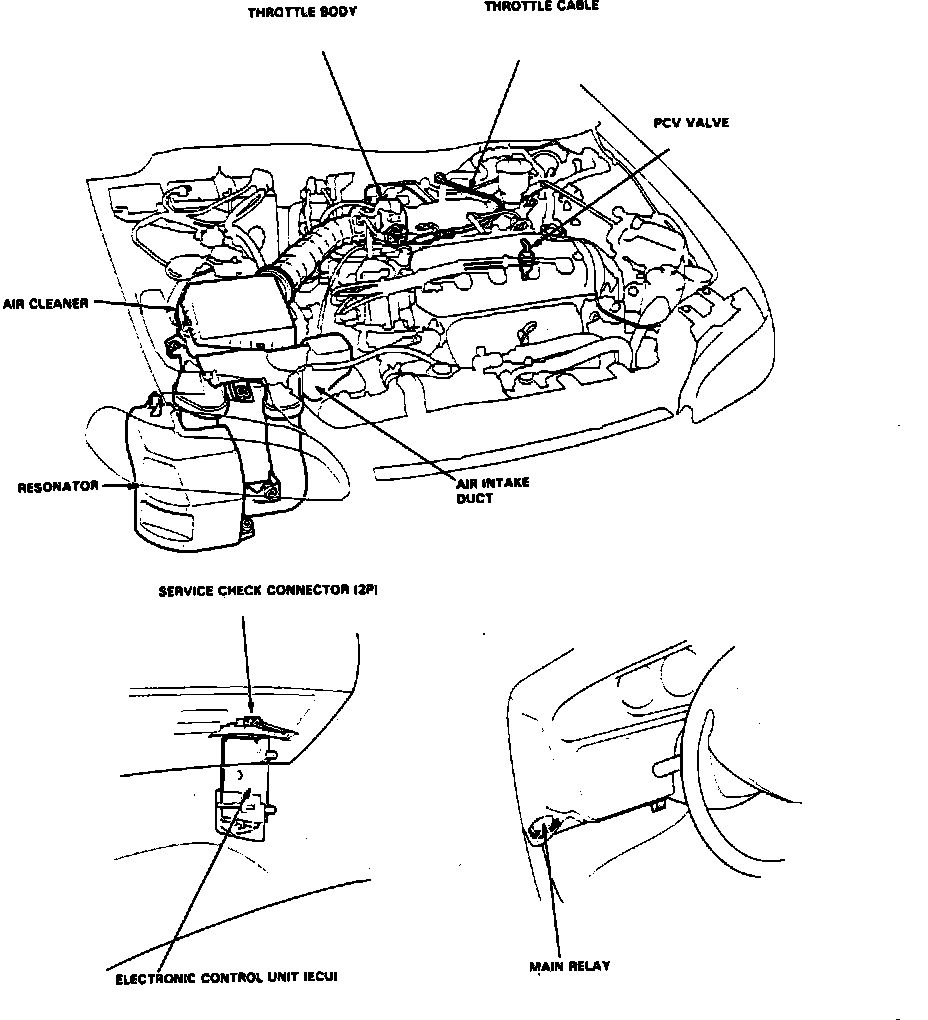

Rear Center Of Engine Compartment

Applicable to: 1992
