Torque Specifications

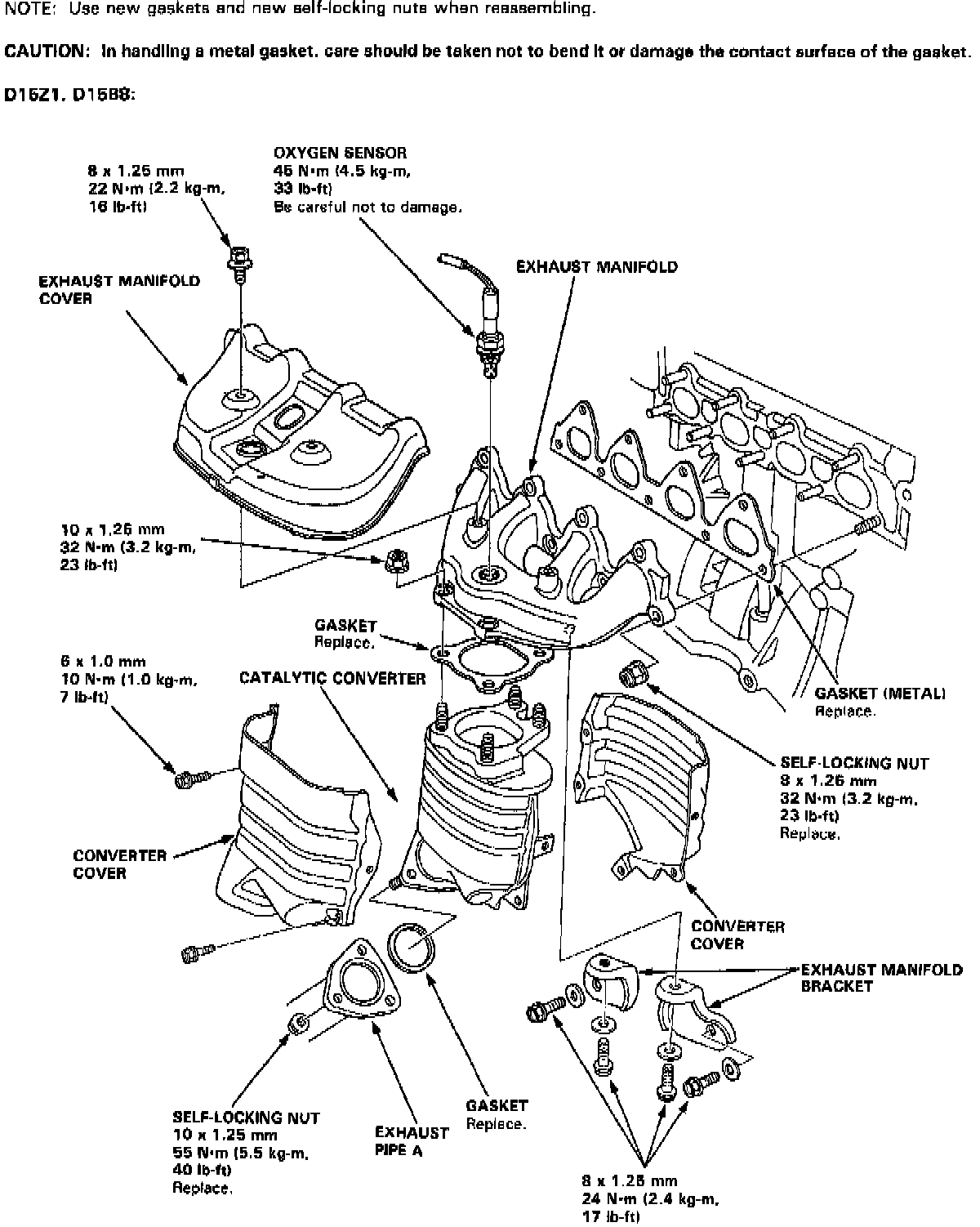

Exhaust Manifold:

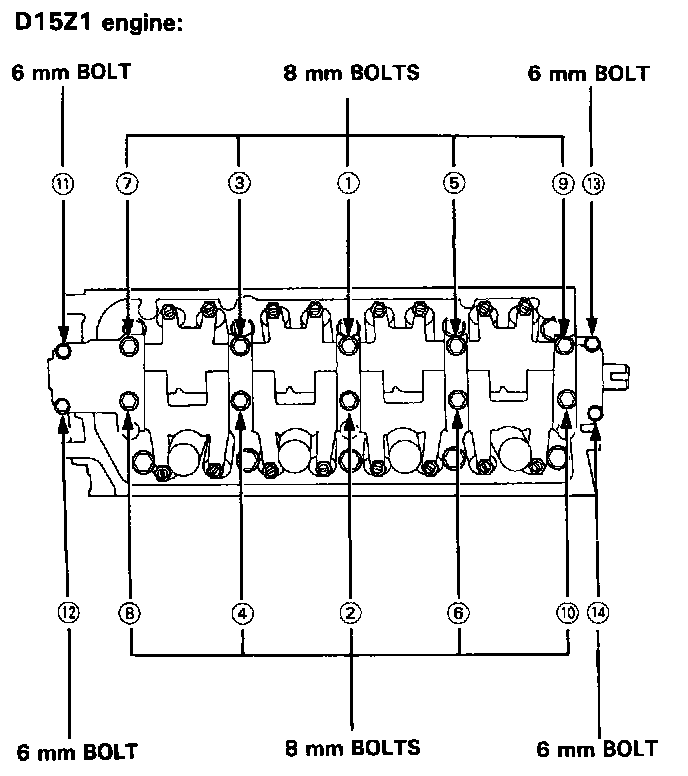

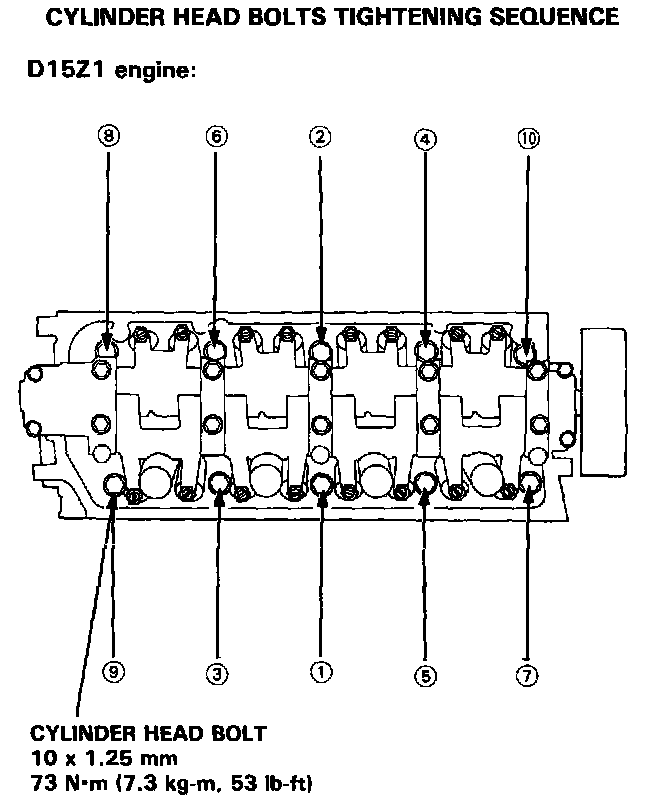

Head Bolt Torque Sequence:

Torque cylinder head attaching bolts in sequence in two steps; first to 22 ft. lbs., then to 53 ft lbs.

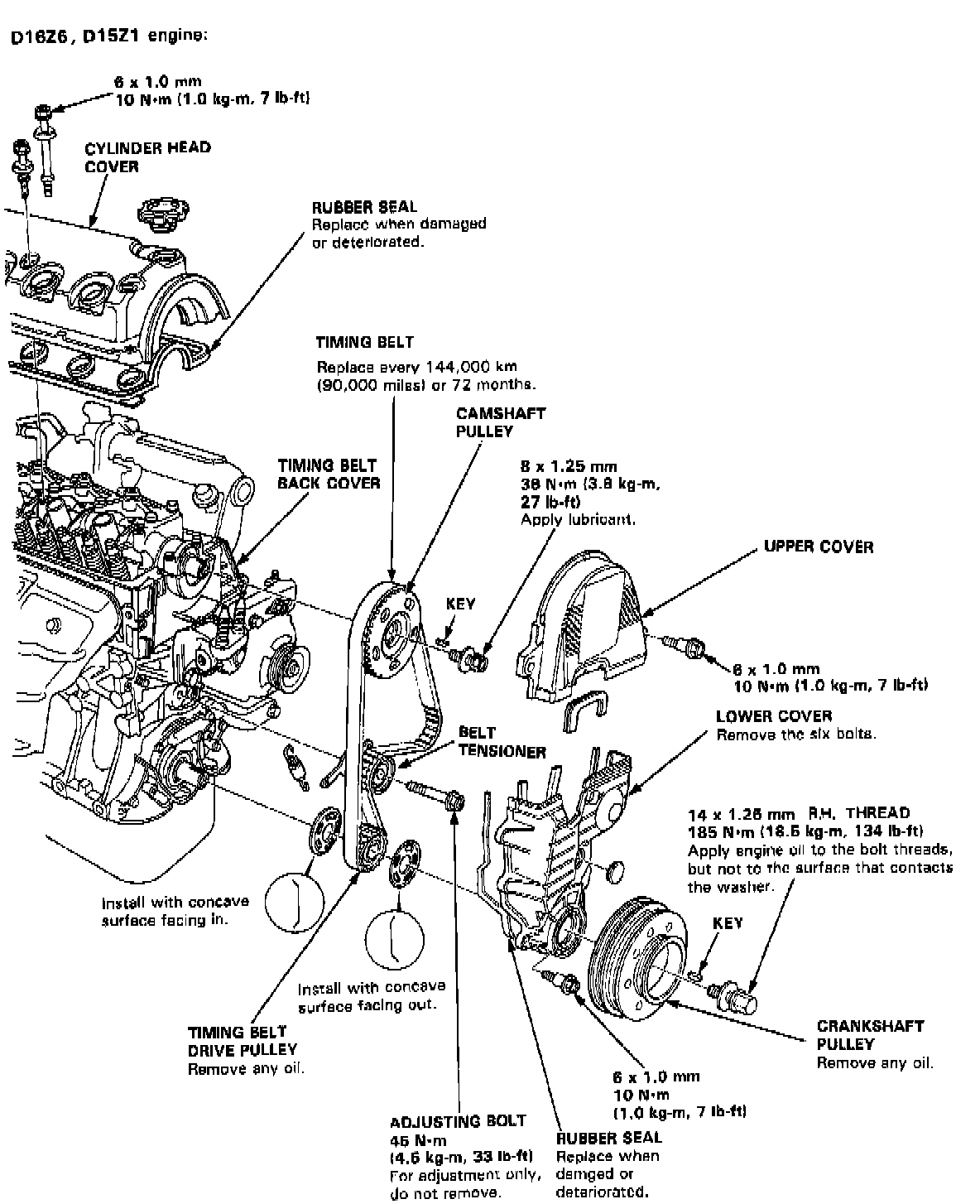

Timing Components:

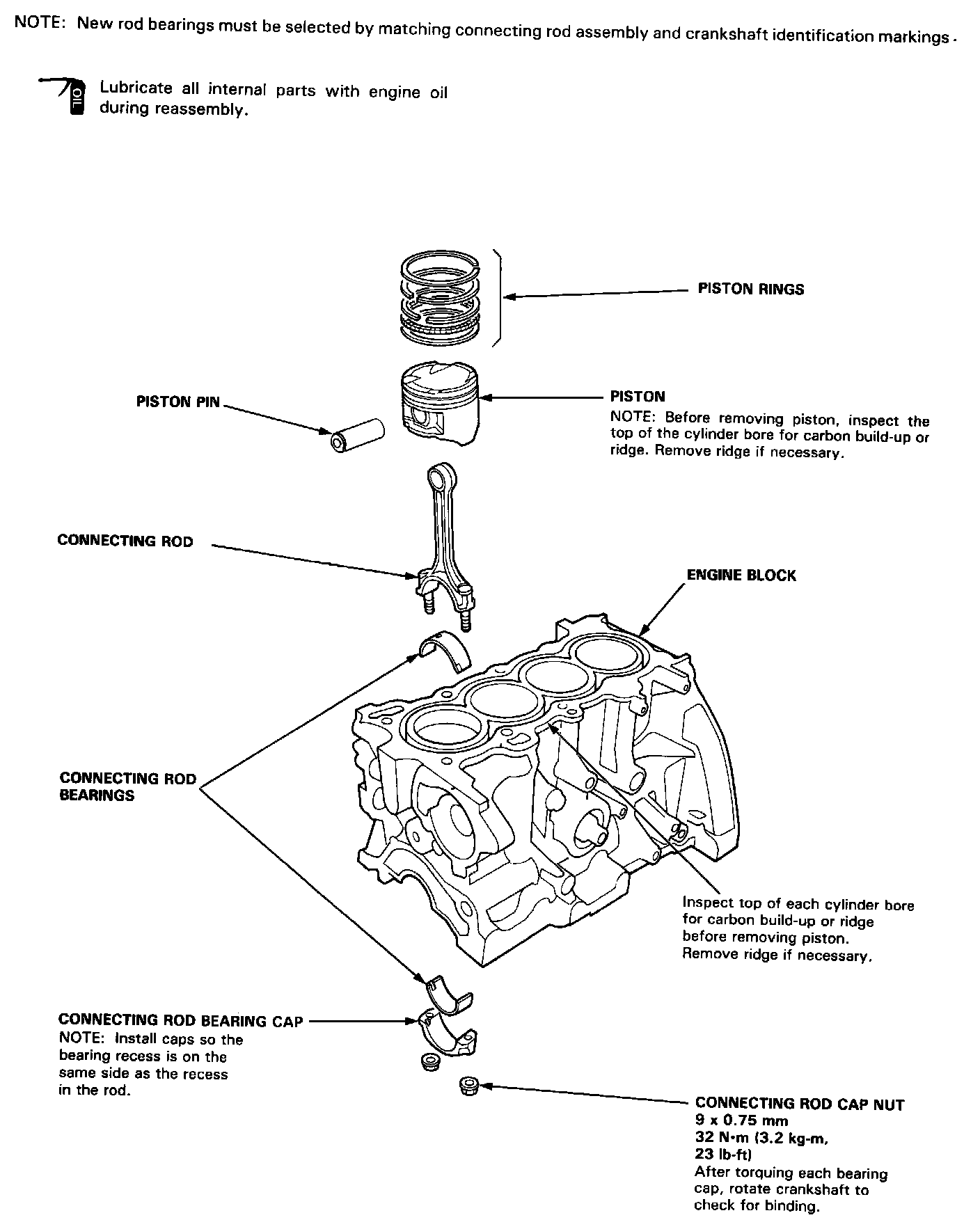

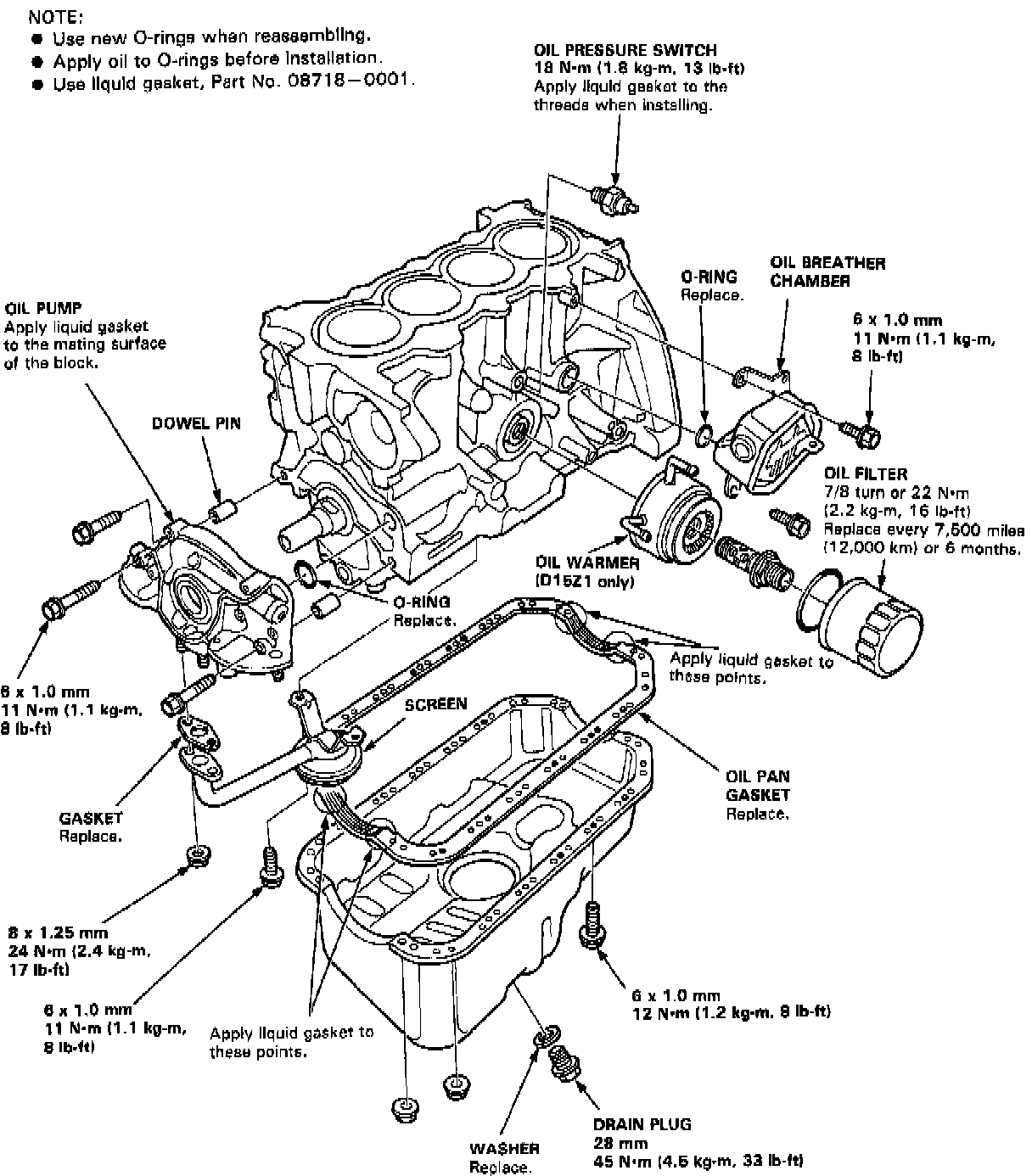

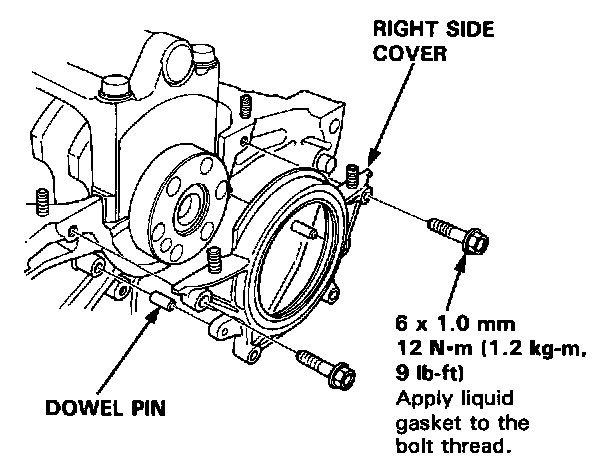

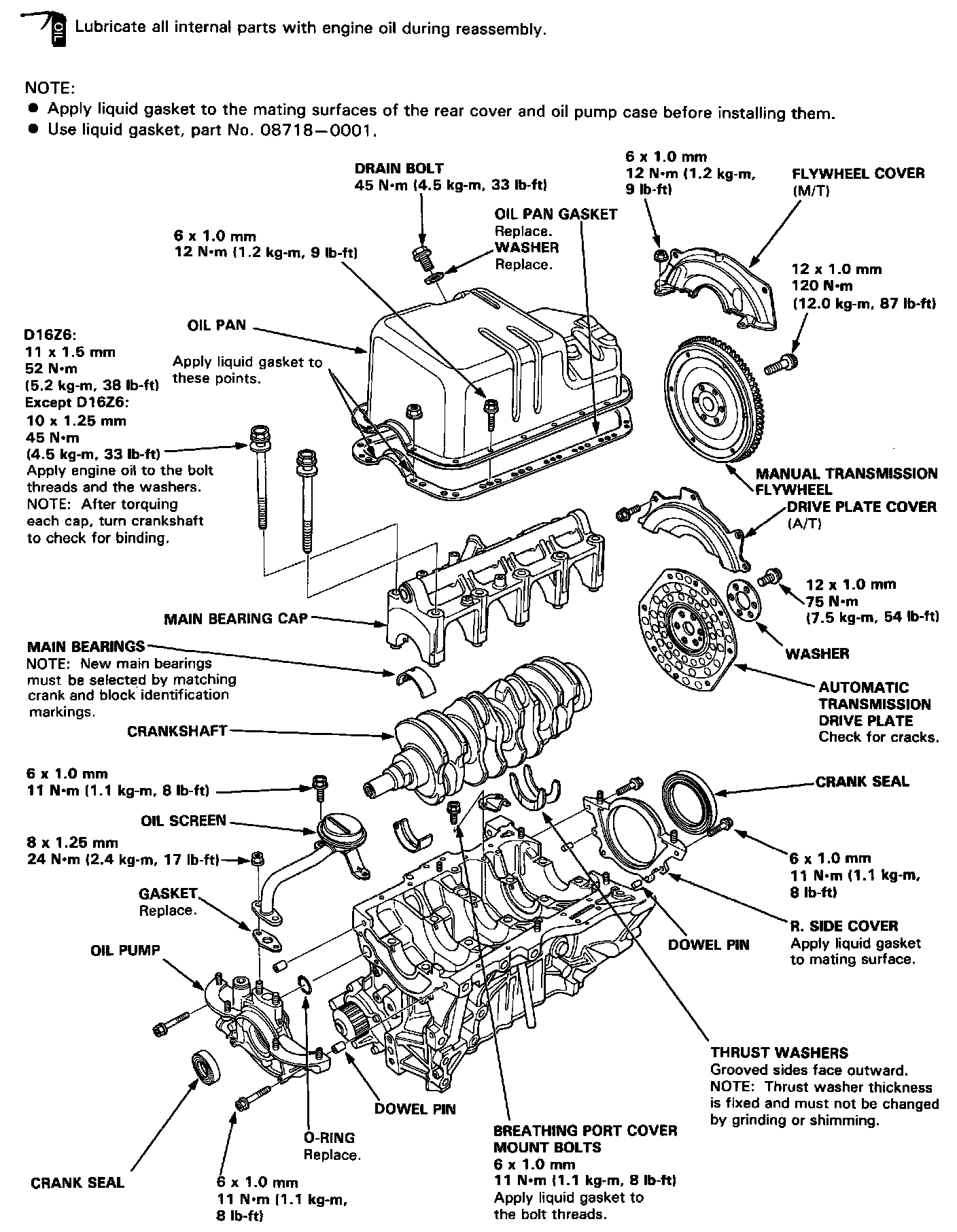

Lower Engine:

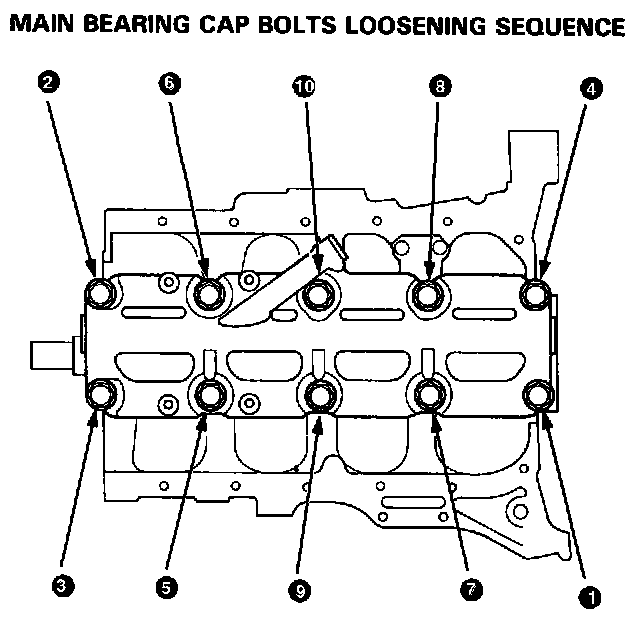

Main Bolt Loosening Sequence:

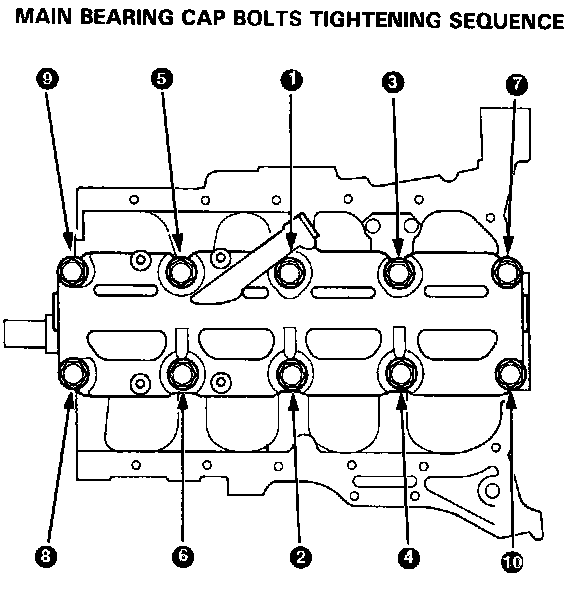

Main Bolt Torque Sequence:

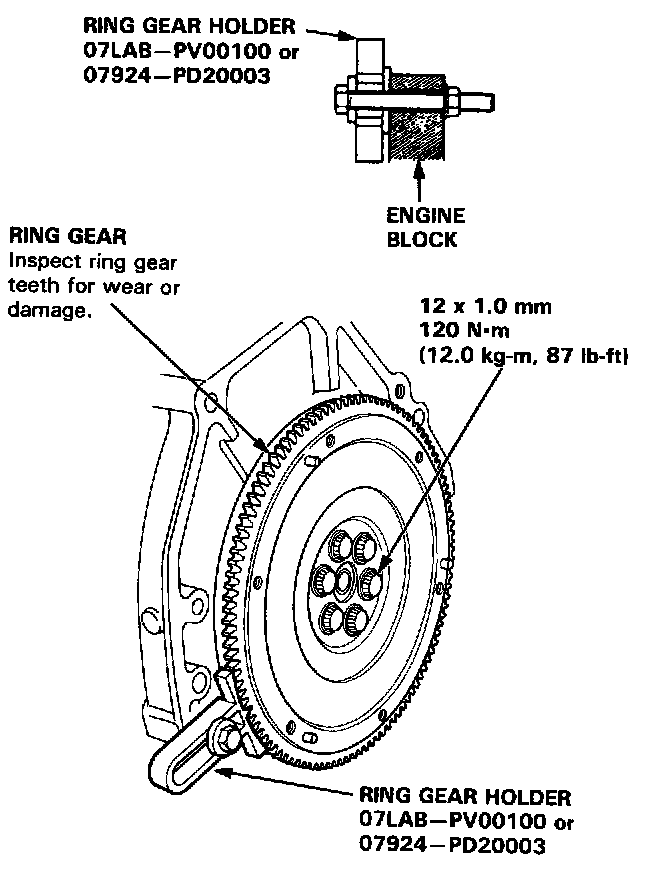

Flywheel (M/T) Torque:

Drive Plate (A/T) Torque:
