Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
1992
>>
Civic L4-1590cc 1.6L SOHC (VTEC)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Locations
>>
Ground Locations
>>
Main Harness
>>
Left Side
Left Side

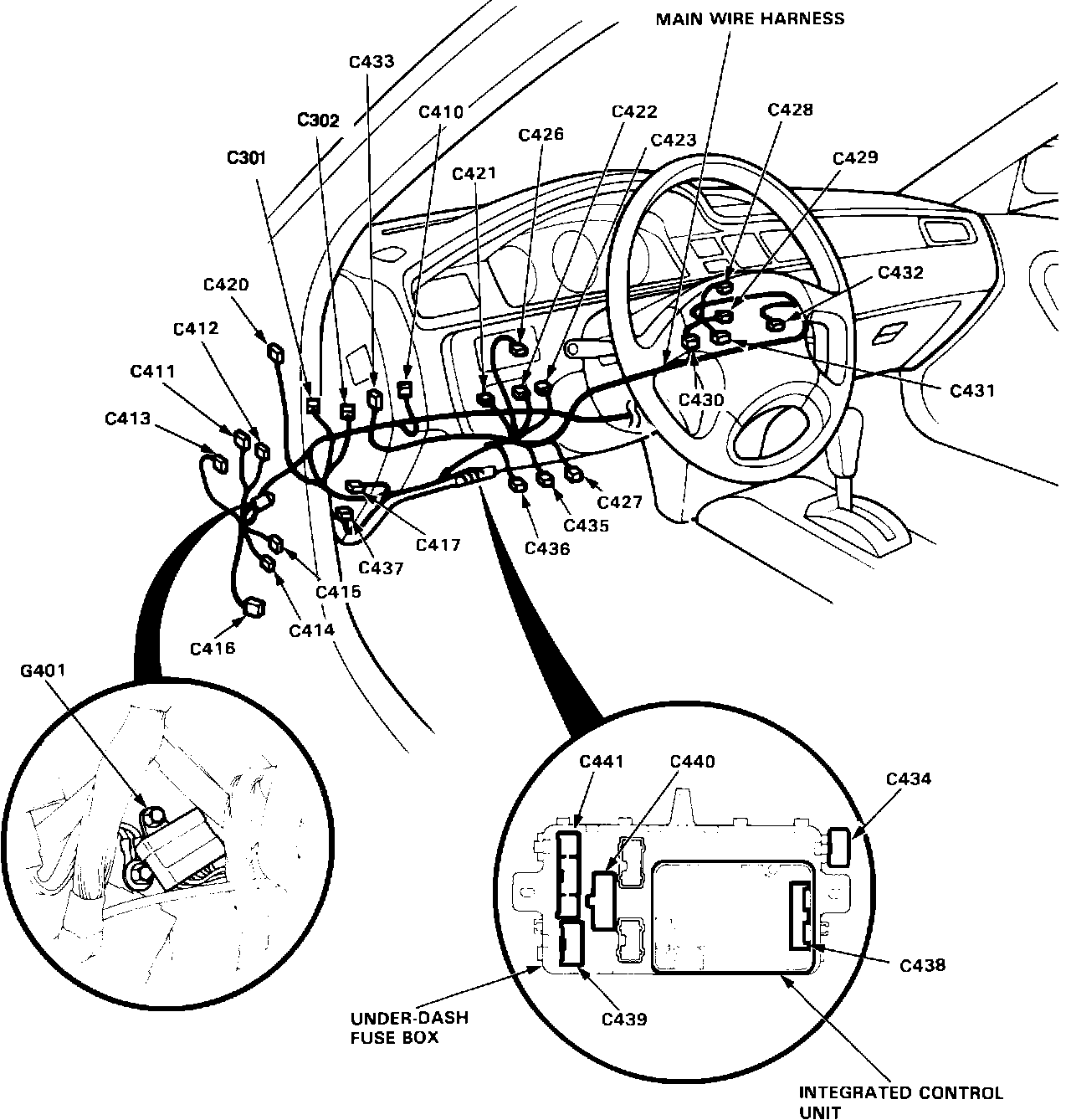

Main Wire Harness (Left Side Of Dash Branch):
