Torque Specifications

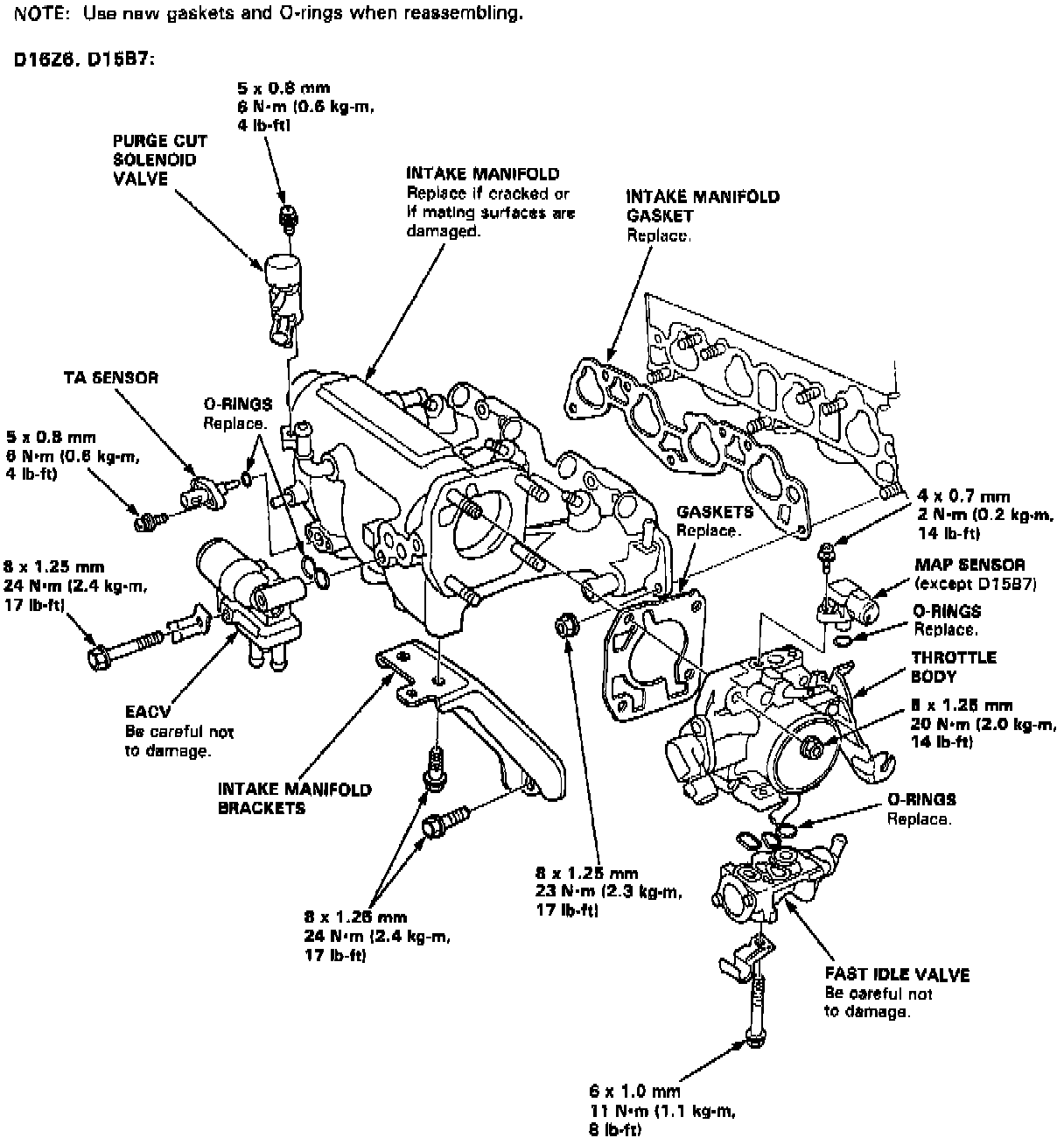

Intake:

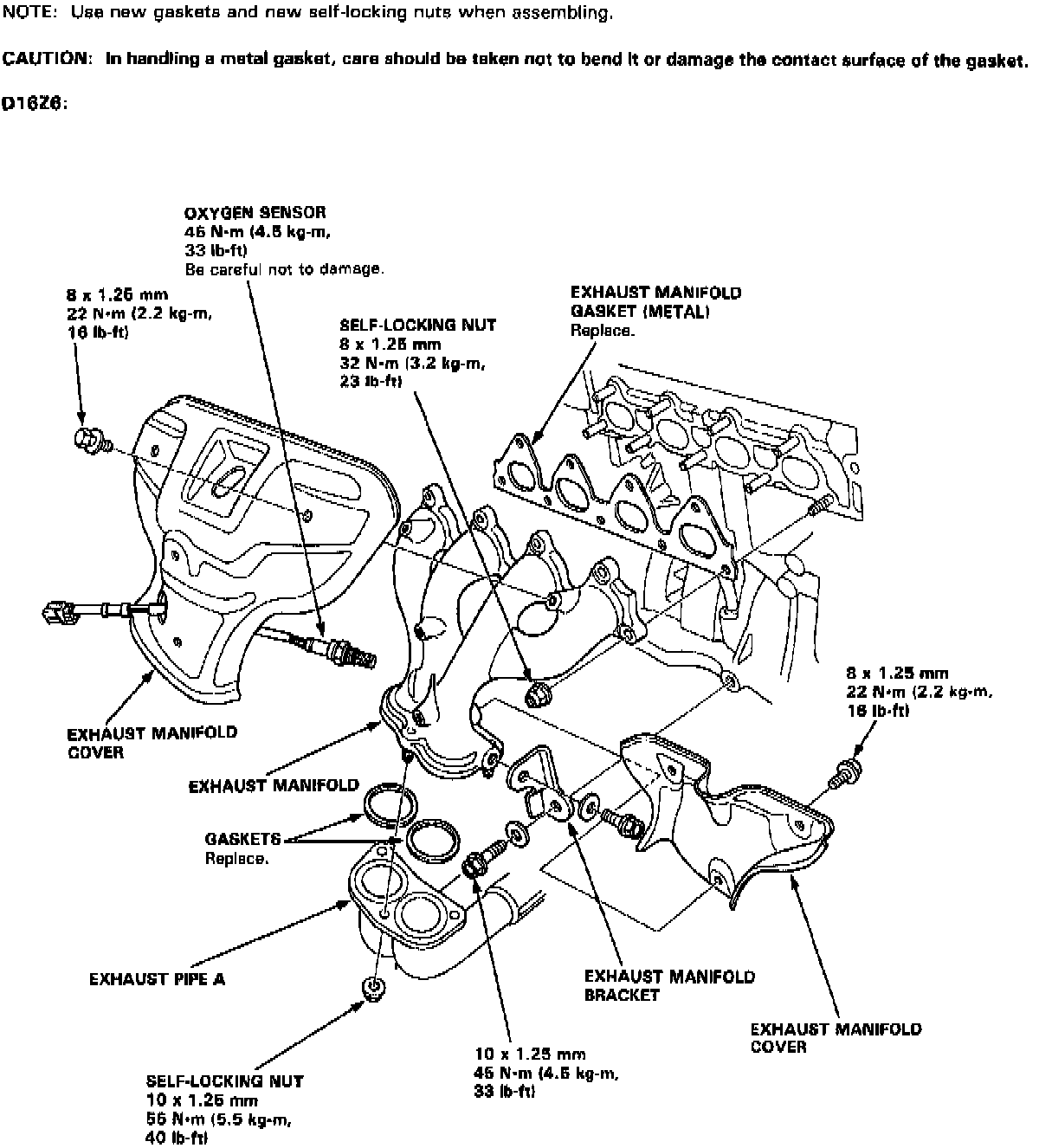

Exhaust Manifold:

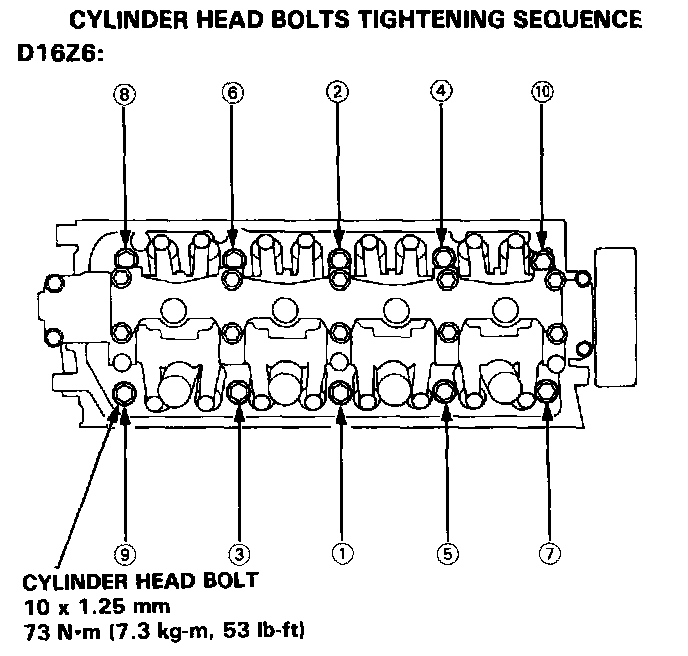

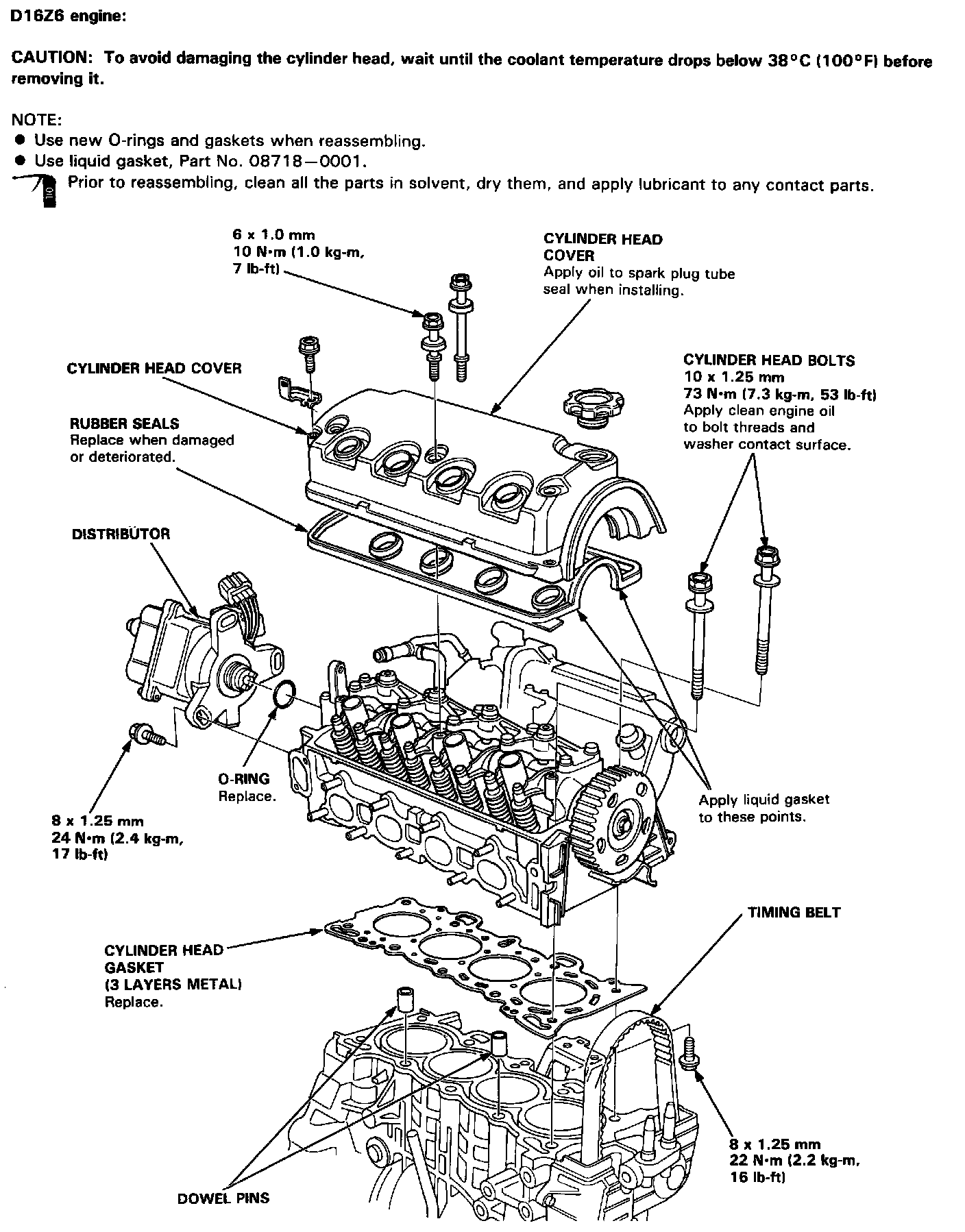

Torque cylinder head attaching bolts in sequence in two steps; first to 22 ft. lbs., then to 53 ft lbs.

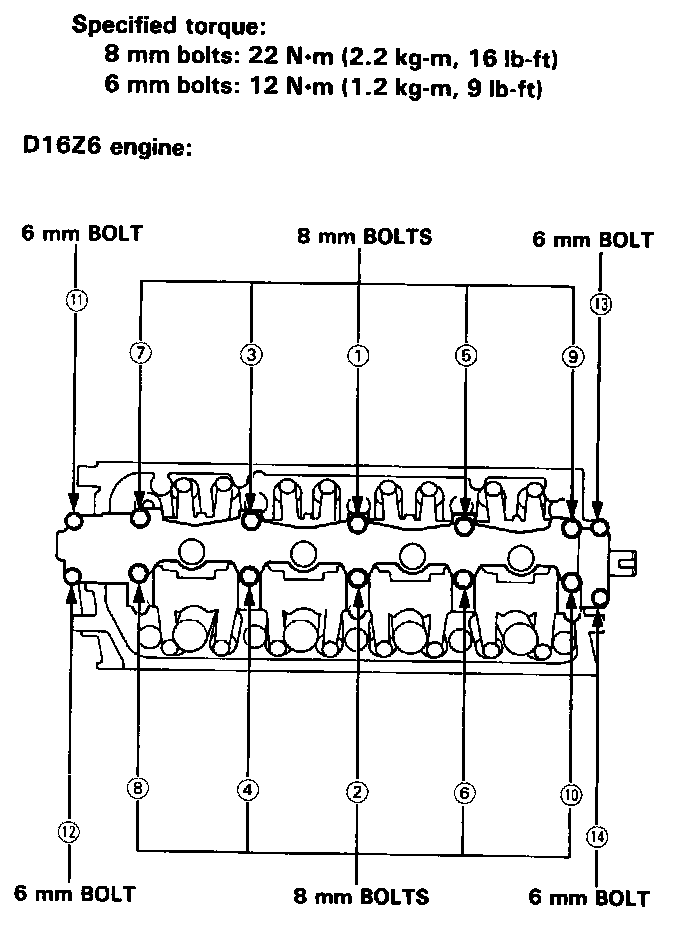

Timing Components:

Lower Engine:

Main Bolt Loosening Sequence:

Main Bolt Torque Sequence:

Flywheel (M/T) Torque:

Drive Plate (A/T) Torque:
