DEF Door Adjustment

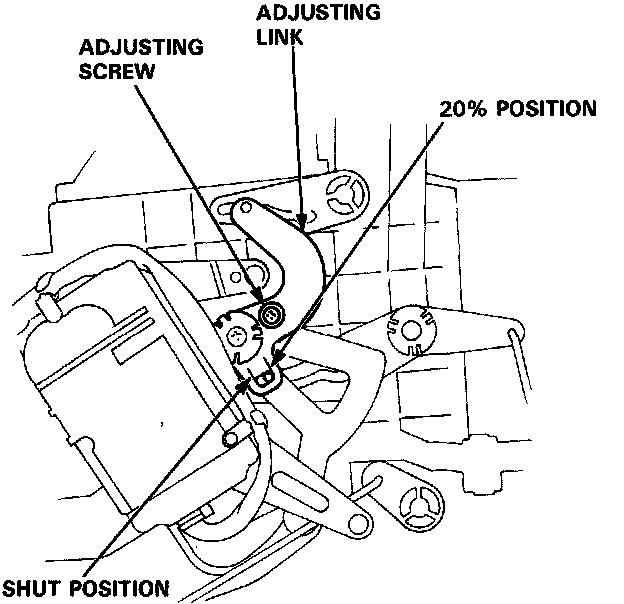

Set the heater control switch on HEAT for adjusting DEF leak (shut 20%).
1.
Loosen the adjusting screw.
2.
Adjust the heater linkage.
3.
Tighten the adjusting screw.
