Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
1992
>>
Prelude L4-2.2L SOHC
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Heater Flow Charts
>>
Recirculation Control
Recirculation Control
Recirculation Control

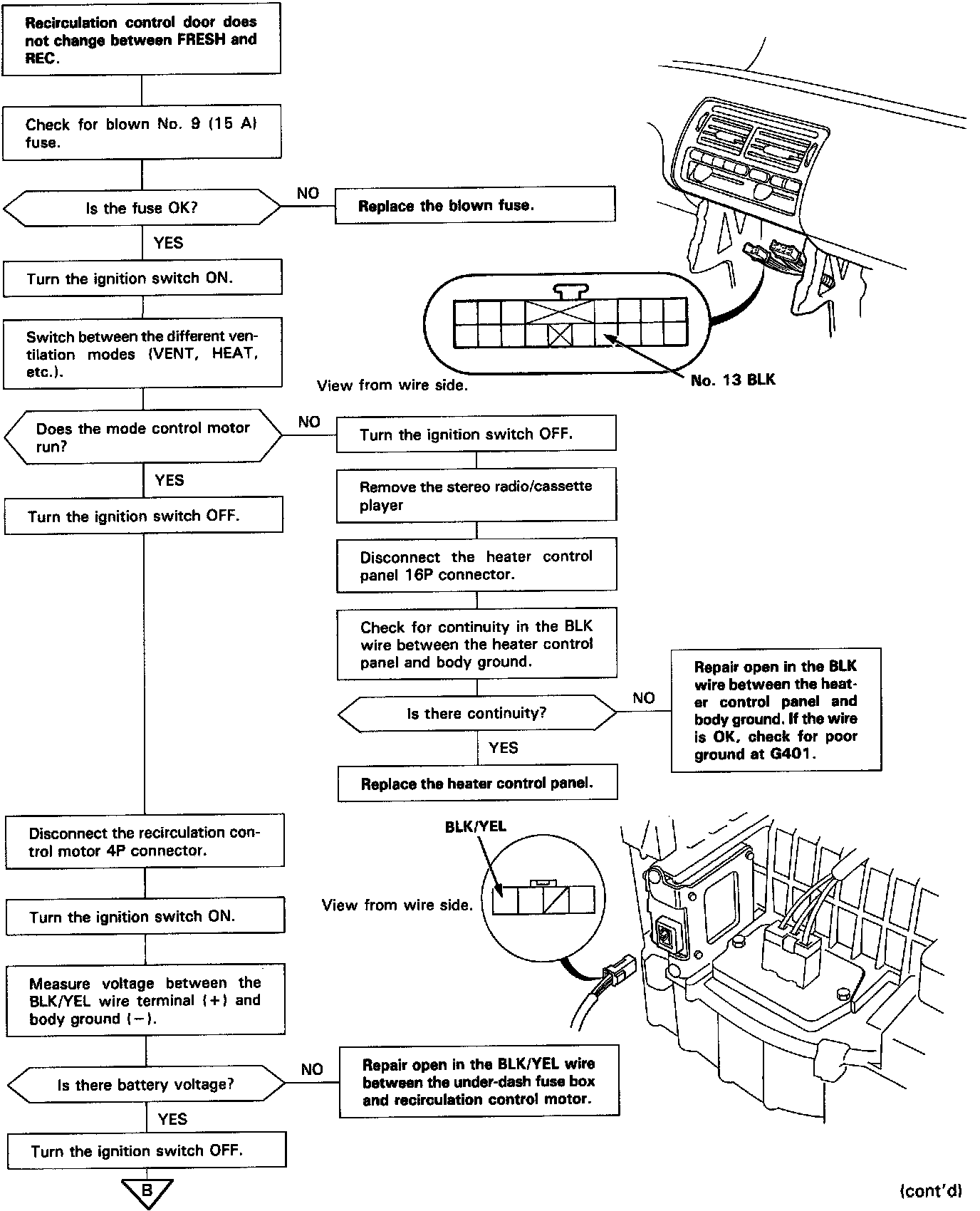

Part A:

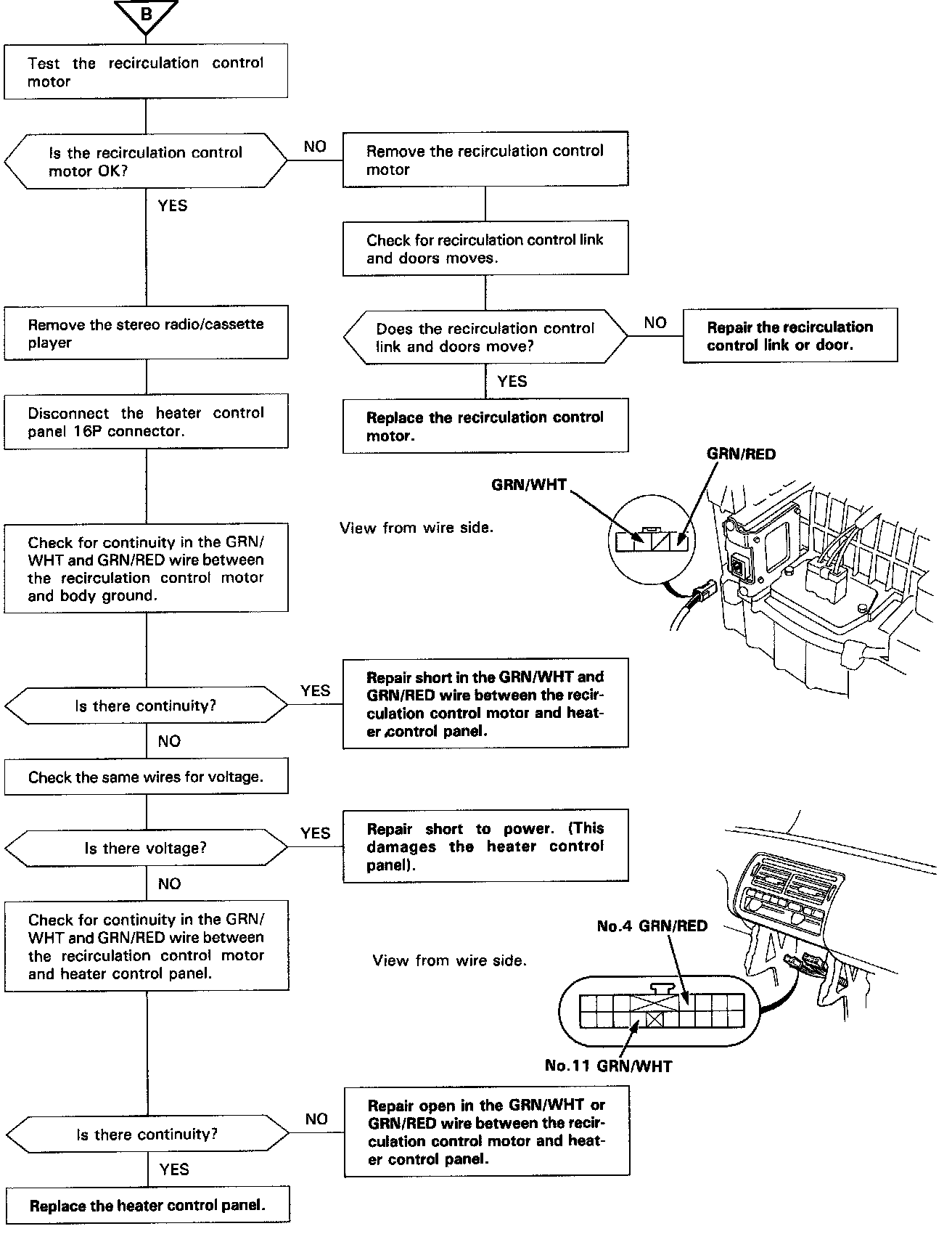

Part B:
