Anti-Lock Brake System

Place vehicle on level ground with wheels blocked, put transmission in neutral for manual transmission models and in ``park'' for automatic transmission models when bleeding brakes.

Fig. 6 Inspection Connector Location. 1992 Prelude & Civic:

1. On Accord models, with ignition switch off, disconnect 6-P inspection connector from connector cover on the crossmember under passenger seat and connect it to anti-lock brake checker No. 07HAJ-SG0010B or 07HAJ-SG00100 or equivalent, Fig. 6.

Fig. 7 Inspection Connector Location. Accord:

2. On Prelude and Civic models, with ignition switch off, disconnect 6-P inspection connector from connector cover on the crossmember under passenger seat and connect it to anti-lock brake checker No. 07HAJ-SG0010A or 07HAJ-SG0010B or equivalent, Fig. 7.
3. Fill modulator reservoir to MAX level and install reservoir cap.
4. Start engine and allow it to idle for a few minutes, then shut engine off. Check fluid in modulator reservoir and refill to MAX level if necessary.

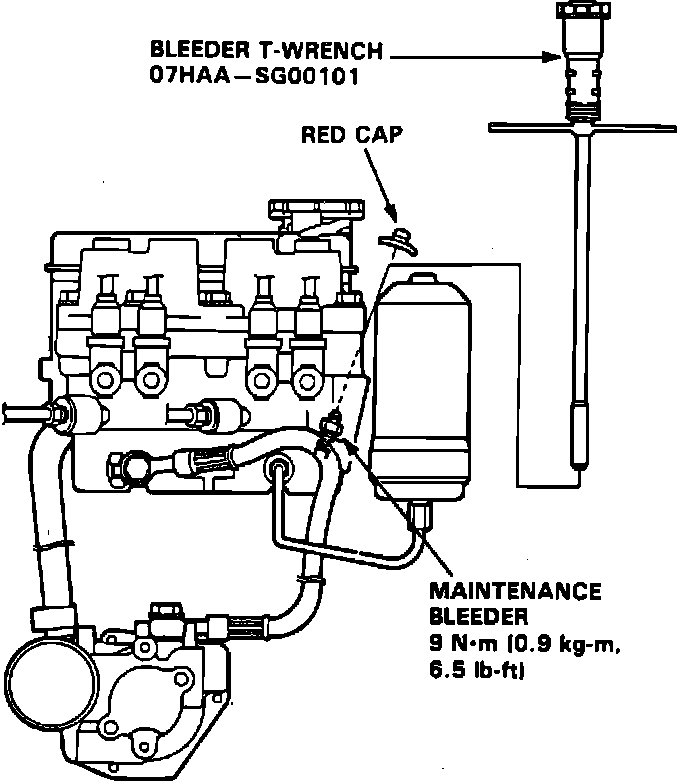

Fig. 9. Bleeding High Pressure Fluid At Maintenance Bleeder. 1992 Accord & Prelude:

5. On Accord and Prelude models, bleed high pressure fluid from maintenance bleeder with special bleeder wrench tool No. 07HAA-SG00101 or equivalent, Fig. 9.

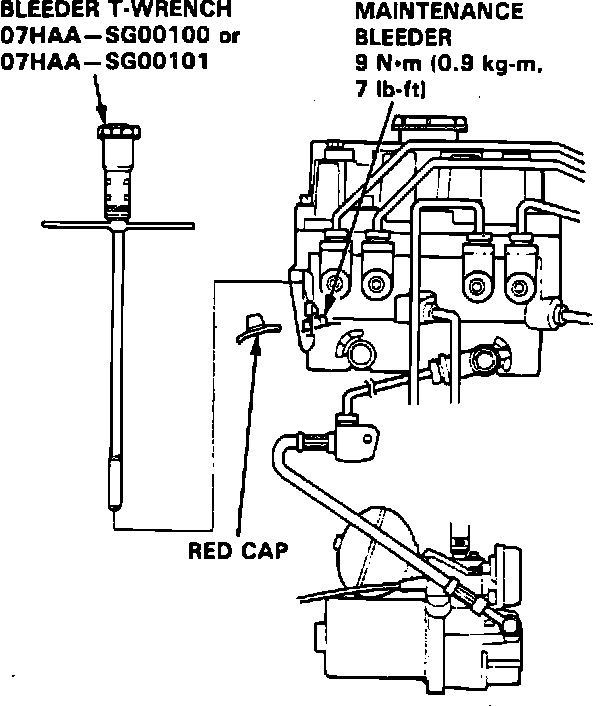

Fig. 76 Bleeding High Pressure Fluid At Maintenance Bleeder.:

6. On Civic models, bleed high pressure fluid from maintenance bleeder with special bleeder wrench tool No. 07HAA-SG00101 or equivalent, Fig. 76.
7. Refill modulator reservoir to MAX level and install reservoir cap.
8. Turn mode selector switch of checker to 2.
9. While depressing brake pedal firmly, push start test switch to operate modulator. There should be kickback on brake pedal. If there is no kickback, repeat steps 4 through 7.
10. Turn mode selector switch of checker to 3, 4 and 5. Perform step 7 for each test mode position.
11. Refill modulator reservoir to MAX level and install reservoir cap. Disconnect ALB checker before driving car. A collision can result from a reduction, or complete loss of braking ability.
