Disassembly/Reassembly

NOTE: During reassembly, grease all sliding parts.

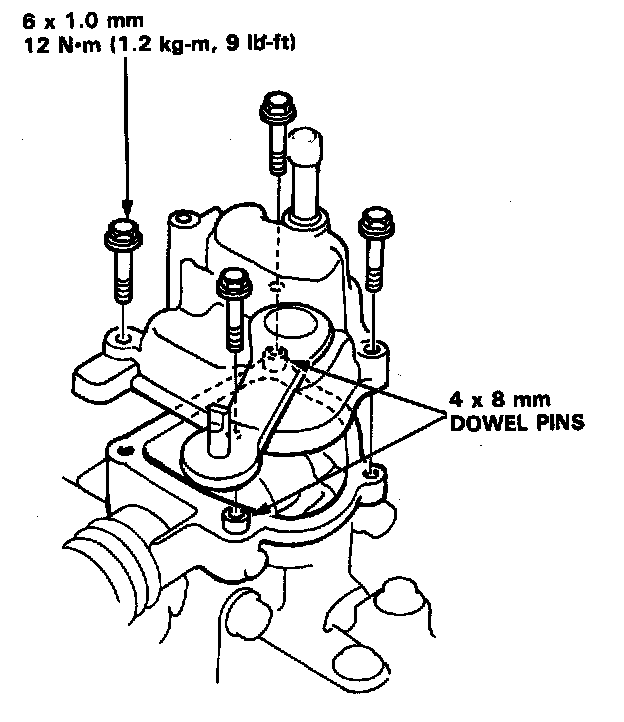

1. Remove the shift arm cover assembly.




2. Remove the spring pin, then remove the select lever, select arm and springs.
3. Remove the select return pin.

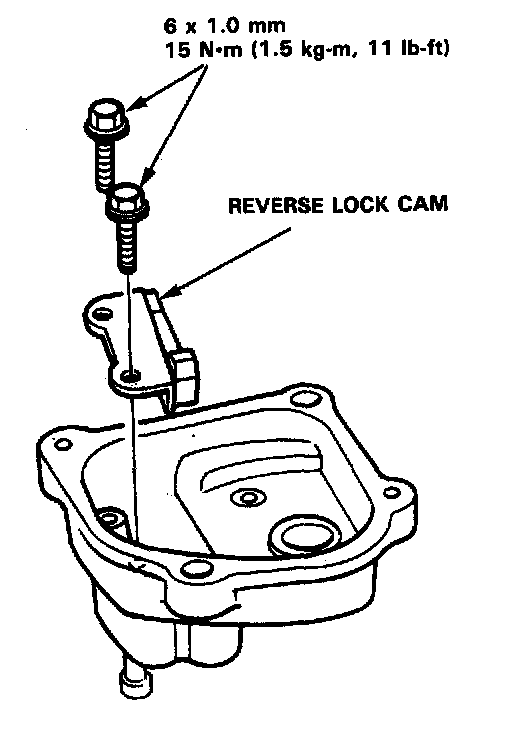

4. Remove the reverse lock cam.

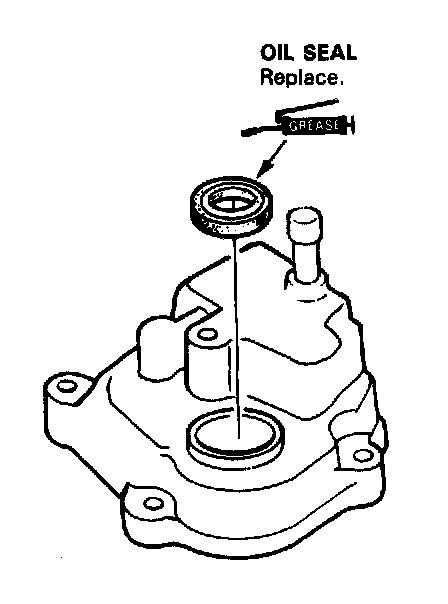

5. Remove the oil seal.

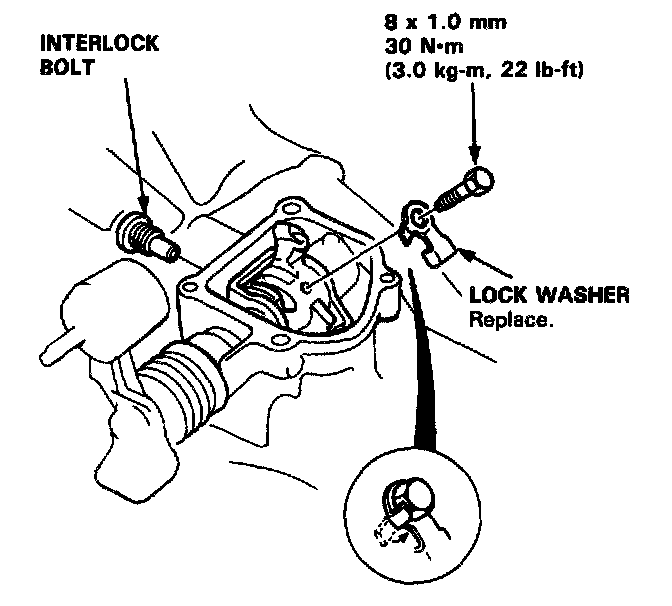

6. Bend the tab of the lock washer, then remove the bolt.
7. Remove the interlock bolt.

NOTE: Apply liquid gasket (P/N 08718-0001) to the threads before reassembly.

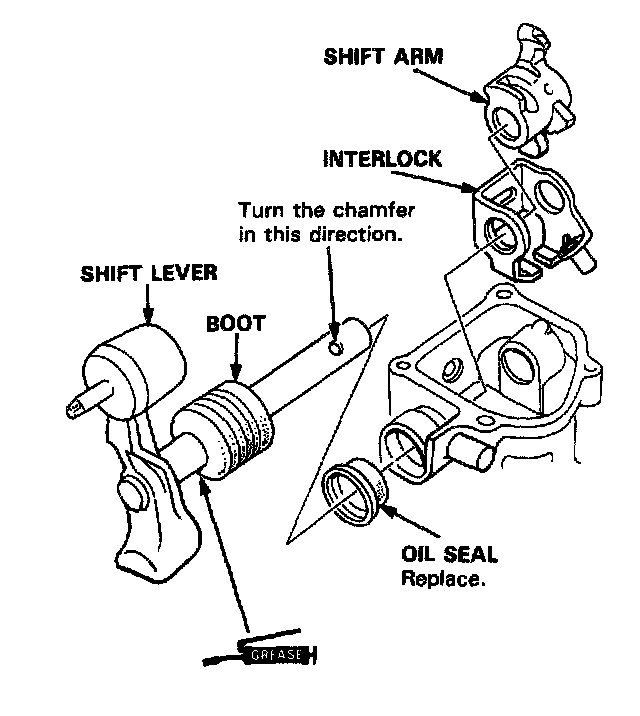

8. Remove the shift lever, shift arm, and interlock.




9. Install the shift arm assembly in the reverse order of removal.

NOTE:
- Remove all dirt and oil from the sealing surface.

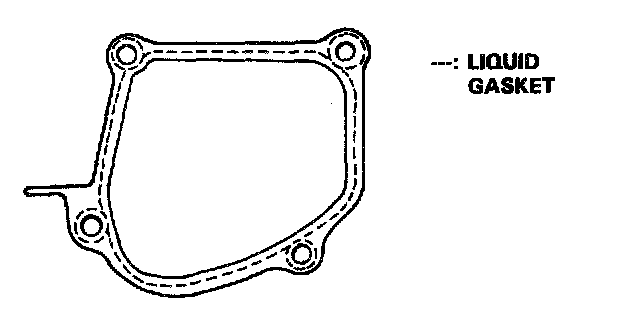

- Apply liquid gasket to the shift arm cover mating surface of the transmission housing.
- Use P/N 08718-0001 for the liquid gasket.
- Apply liquid gasket on the central part of the sealing surface.
- Seal the entire circumference of the bolt hole to prevent oil leakage.
- When the sealing surface has remained untouched for more than 20 minutesafter application of the liquid gasket, do not replace the parts without sealing the surface again.
- Refill the oil after 30 minutes after replacement.
