Heater Fan Switch Test
1. Disconnect the 8P connector from the heater fan switch.

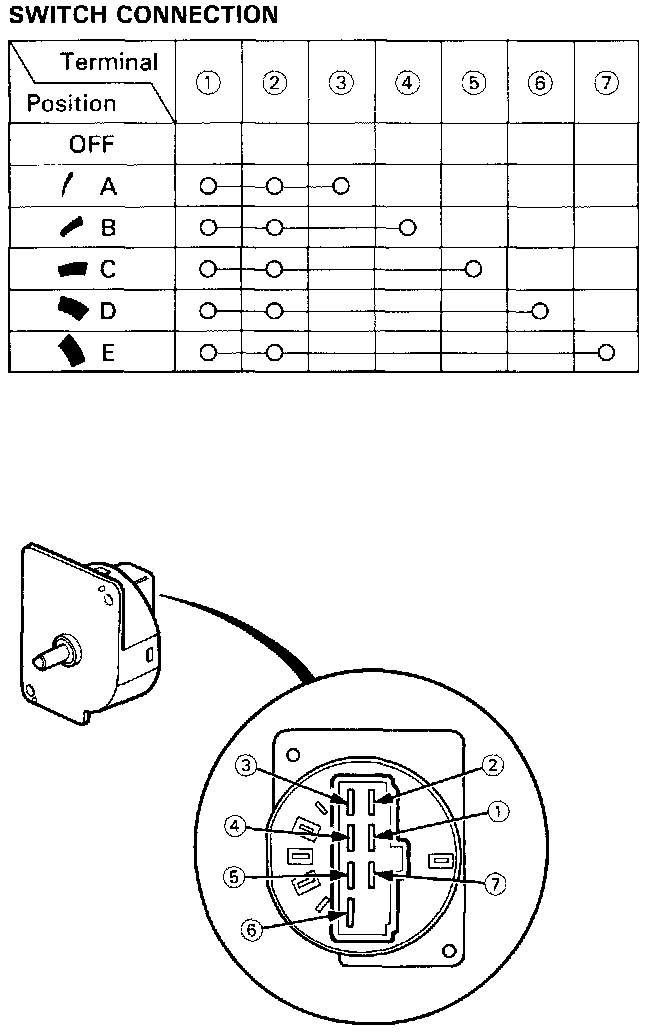

2. Check for continuity between the terminals of the heater fan switch according to the table. (Refer to image for terminal identification.)
1. Disconnect the 8P connector from the heater fan switch.
2. Check for continuity between the terminals of the heater fan switch according to the table. (Refer to image for terminal identification.)
