Accord L4-2156cc 2.2L SOHC
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Application and ID
>>

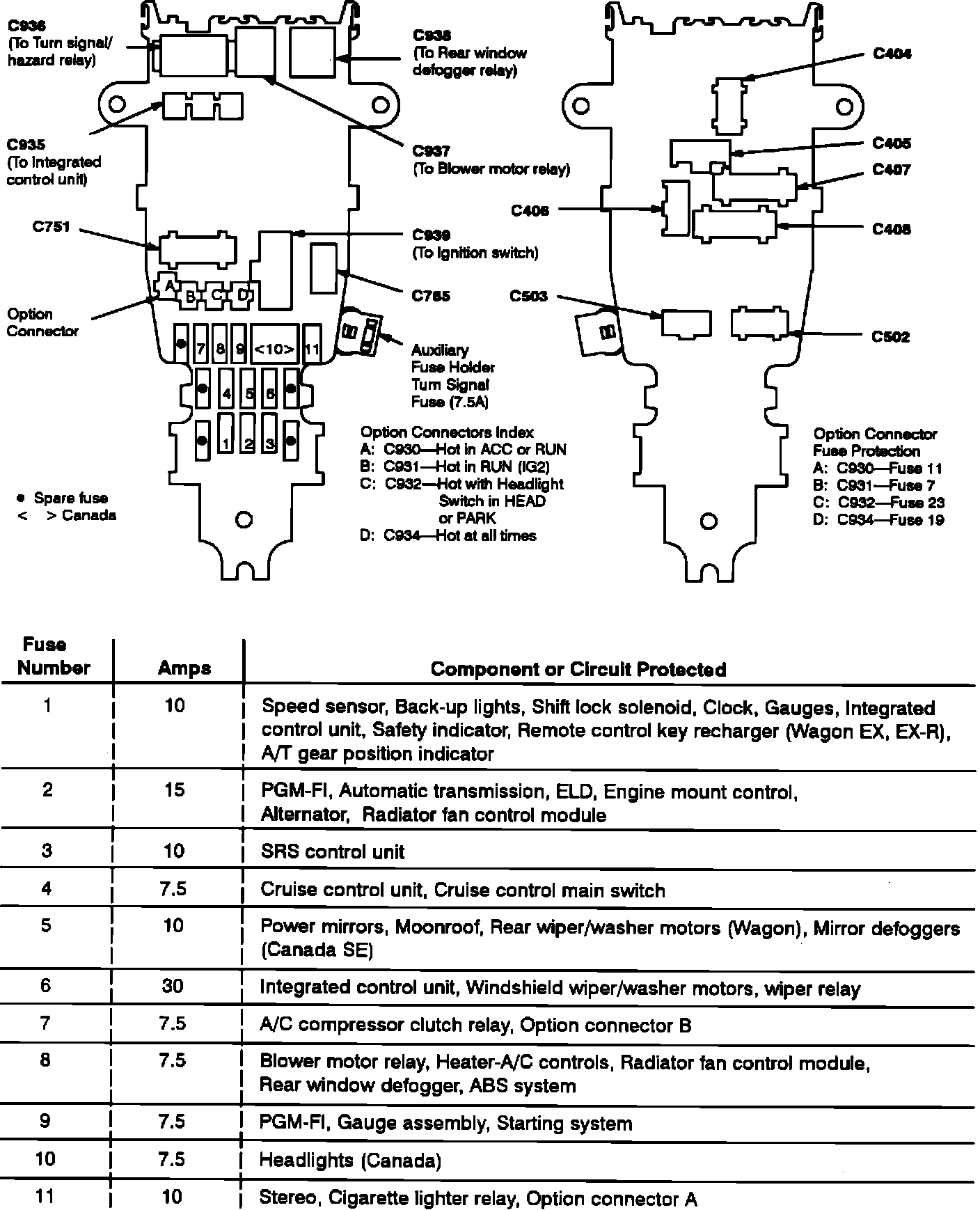

Under-Dash Fuse/Relay Box
Under-Dash Fuse/Relay Box
Under-dash Fuse / Relay Box:
