Home >> Honda >> 1993 >> Accord L4-2156cc 2.2L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Oxygen Sensor >> Locations

Oxygen Sensor: Locations

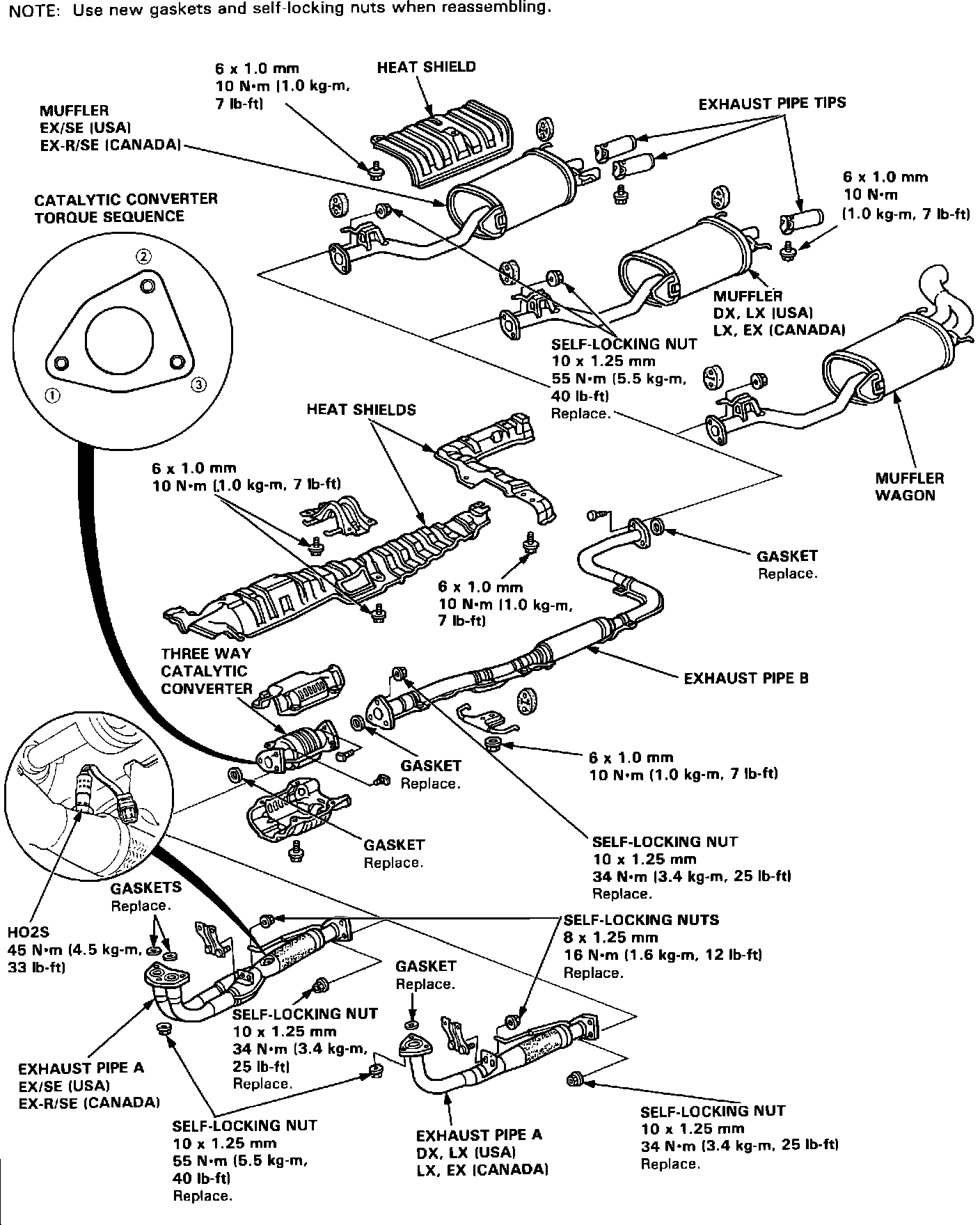

Exhaust System Exploded View:



Under-hood View:
