Electronic Brake Control Module
>>
Locations
>>

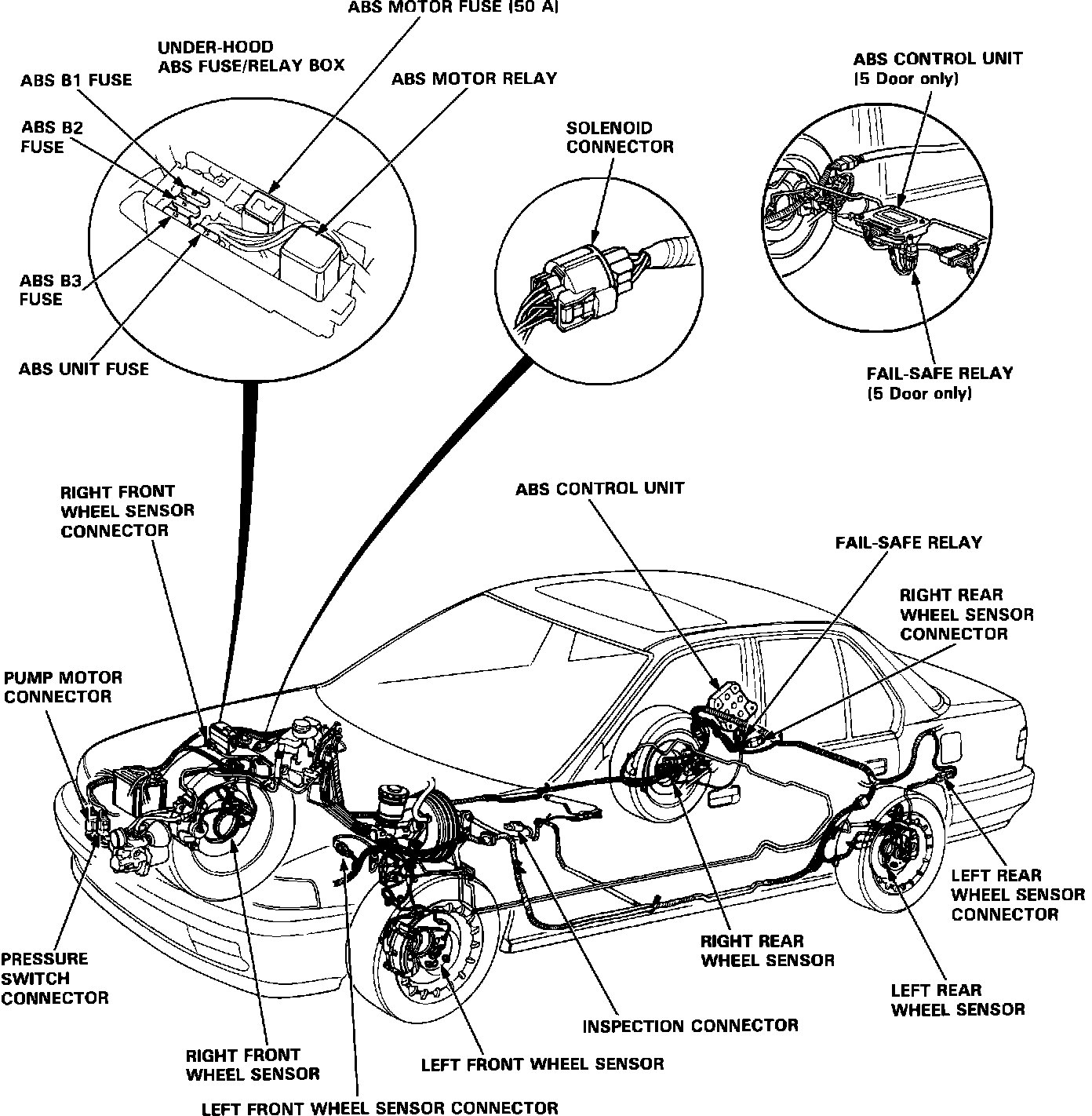

Connector, Control Unit and Relay Locations
Connector, Control Unit and Relay Locations
Connector, Control Unit And Relay Locations:
