Home >> Honda >> 1993 >> Prelude L4-2.2L SOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> By View Number >> 33-42

33-42

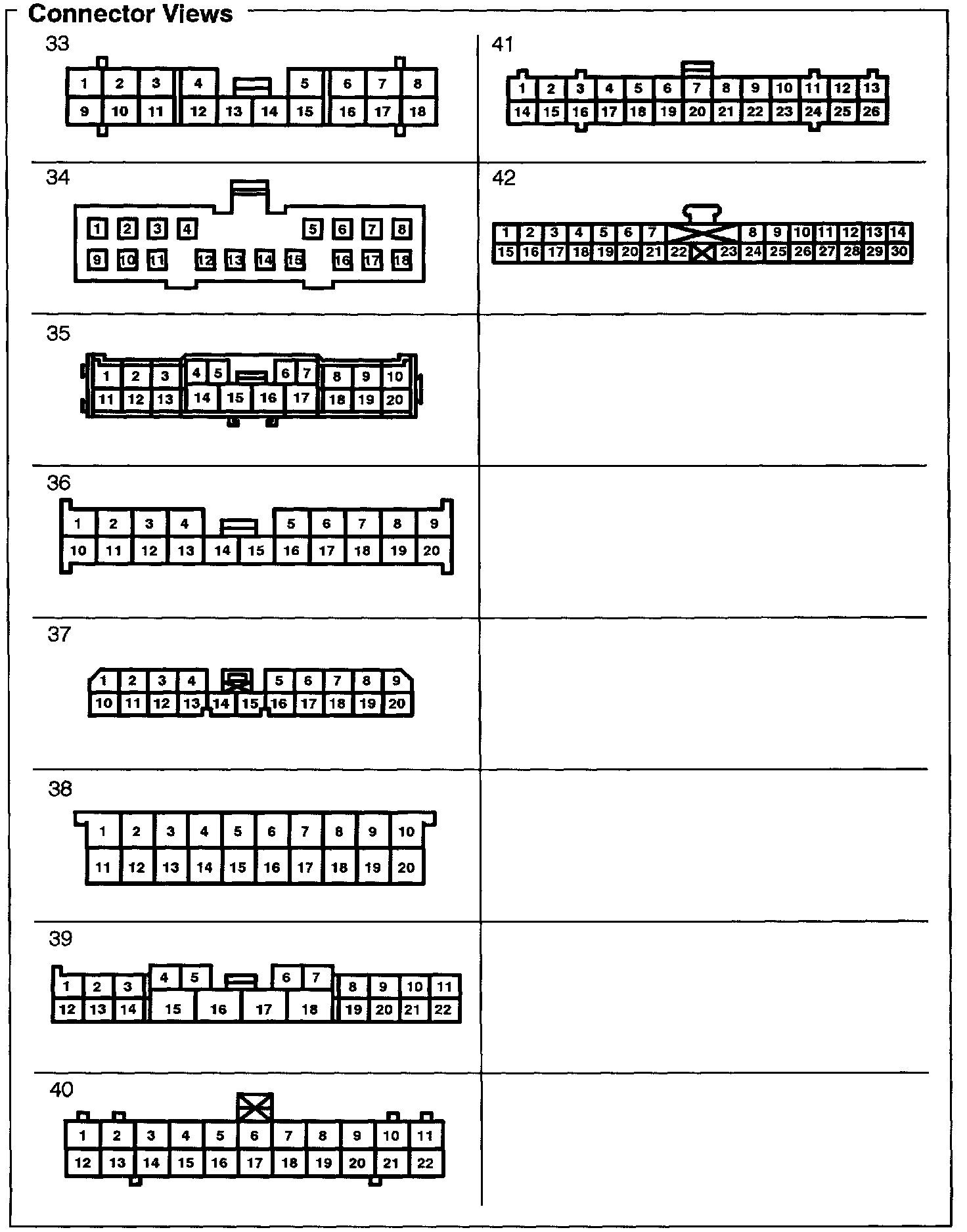

Connector Views: 33 Thru 42:
