Heater Fan Switch Test





HEATER FAN SWITCH TEST

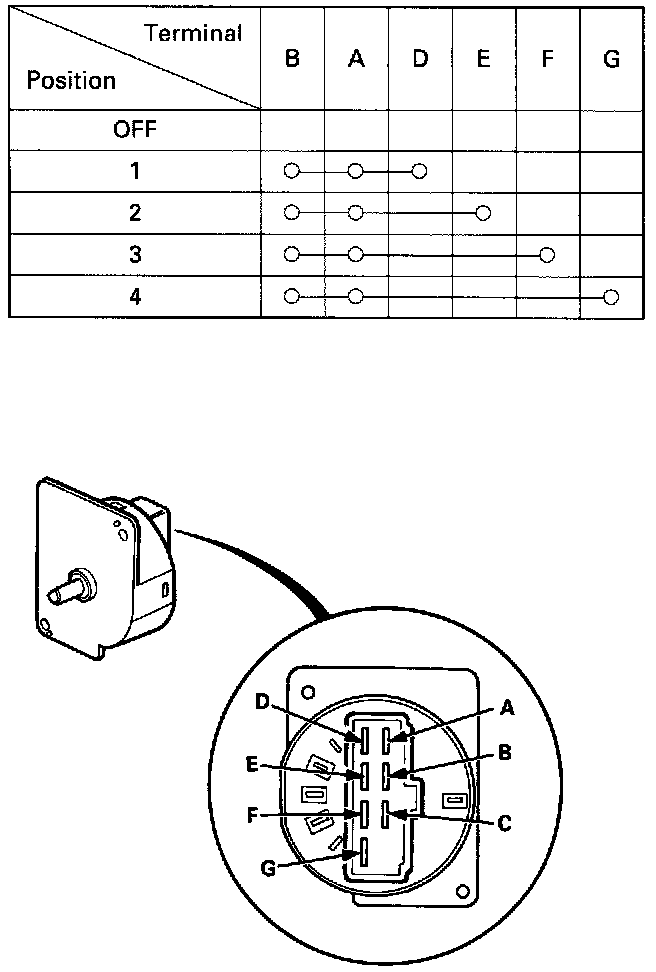

Refer to image for terminal identification. Check for continuity between the terminals according to the table.
